Engaging users with In-app Notifications is an effective way to keep active users engaged with contextual messages (related to their latest app interactions). Your dashboard comes with a highly intuitive 5-step campaign creation interface that makes it easy to create and execute highly personalized campaigns in minutes!

🚧

Must Read

At WebEngage, we are obsessed with enabling consumer business, like yours, to create personalized and contextual experiences that facilitate retention-led growth. This is why user data (User Attributes), behavioral data (Events & Event Attributes) and Segments play an integral role in campaign creation. We recommend that you get yourself acquainted with the respective concepts before proceeding.

Here's a quick summary of the exciting possibilities offered by the campaign creation interface:

• Create highly targeted messages, tailored to each user's app interactions in real time! (skip to Step 2: When)

• Leverage ready-to-use templates to engage users with rich In-app Notifications (skip to Step 3: Message, Layout)

• Personalize messages to each user's preferences and behavior, across the various stages of their lifecycle (skip to Step 3: Message)

• Deep link the Notification to specific screens in your app (skip to Step 3: Message)

• Automate multivariate message testing for your campaign - we'll automatically identify a winner and send it to the entire audience (skip to Step 4: Conversion Tracking & Variation Distribution)

How to Access

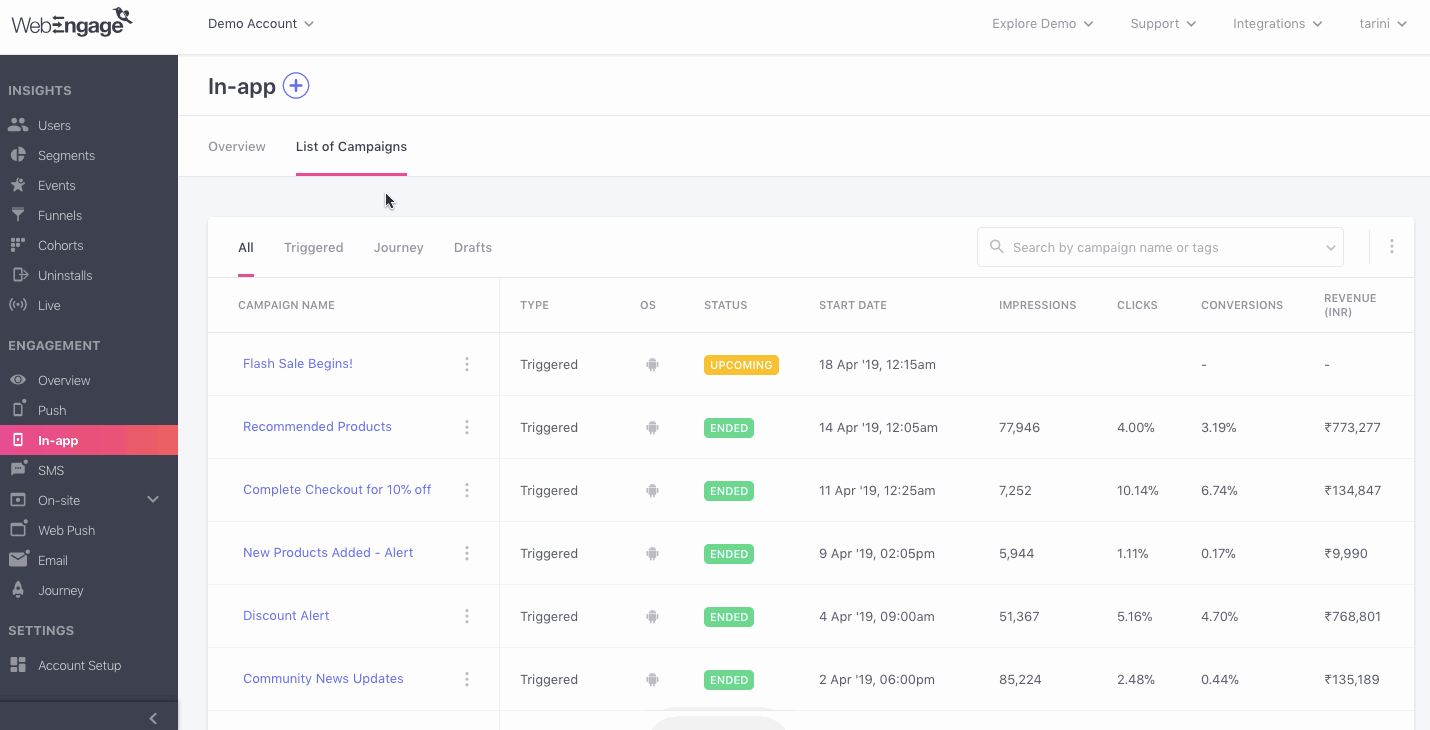

As shown below, the campaign creation interface can be accessed by clicking the Plus icon placed on the top left of List of Campaigns, or the central hub of In-app.

Now, let's walk you through all the steps of campaign creation.

Step 1: Define the Audience

1. Name your Campaign

The first step is to give your campaign a unique name that helps you identify its purpose.

2. Select Target Devices

As shown above, you can choose to create campaigns exclusively for your Android or iOS users by specifying a Target Device. The following options can be selected here:

• Both Android & iOS
• Android only
• iOS only

3. Select Target Apps

📘

Please Note

This option will show only if you have integrated multiple Android/ iOS apps while configuring In-app & target a few of these through the campaign selectively

3A. Specify Target Android Apps

If you have added multiple app credentials while configuring In-app for Android, then by default, all the apps will be targeted. You can alter this by removing Android Package Names to target specific apps with the message. You will see the following two options:

• Send to all apps send the In-app Notifications to all the configured apps.
• Send to specific apps will send the notification to the particular apps of your choice. You can select which apps the notification will be sent to by clicking on the Pencil icon. A new modal will open with the list of apps, letting you choose them by selecting or deselecting them. You can also search the Package Name through the search bar. Click Save to save the changes as shown below.

This field is hidden if you have selected iOS only under Target Devices.

📘

Please Note

You can choose up to 20 apps at a time.

3B. Specify Target iOS Apps

If you have added multiple app credentials while configuring In-app for iOS, then by default all the apps will be selected here as target apps. You can choose to remove the respective iOS Bundle Identifiers to target select apps with the message. You will see the following two options:

• Send to all apps send the In-app Notifications to all the configured apps.
• Send to specific apps will send the notification to the particular apps of your choice. You can select which apps the notification will be sent to by clicking on the Pencil icon. A new modal will open with the list of apps, letting you choose the apps by selecting or deselecting them. You can also search the Package Name through the search bar. Click Save to save the changes as shown below.

This field is hidden if you have selected Android only under Target Devices.

📘

Please Note

You can choose up to 20 apps at a time.

4. Define Target Audience (Send To)

One of the key differentiators of successful campaigns is that they're tailored to the behavior and preferences of a specific group of users. Thus, you can create highly contextual In-app Notifications for a specific segment of users by selecting the Segment or Lists from the dropdown placed beside, Send To, as shown below.

📘

Please Note

To use Lists as Target Audience you have to ensure that the SDKs are updated to:

• Android: 4.17.0 or later
• iOS: 6.13.0 or later

As shown above, on selecting a segment, you will be able to preview a snapshot of Reachable Users and the Rules of Segmentation. Let's quickly walk you through Segment Preview:

• Reachable Users: Indicates the number of users, from the selected segment, that can be engaged through In-app Messaging as a channel, at present.

• Rules of Segmentation: You can choose to segment your entire user base by 3 broad parameters - User (attributes), Behavior and Technology. Thus, Segment Preview presents a snapshot of all the users, against the parameters based on which, they have been grouped together.

Edit Segment

Click on the Edit icon, placed next to the dropdown, Send To, to edit the selected Segment. In doing so, you will be prompted by a pop-up, pre-populated with the existing rules of segmentation, as shown below.

Simply make your edits and click Save to proceed. In doing so, you will be able to preview the number of reachable users as per your edits.

Create a New Segment

You can choose to create a new Segment _of users from the campaign creation interface by clicking the _Create Segment button. In doing so you will be prompted by a pop-up, allowing you to build a new segment, as shown below.

Once created, you will be able to access the Segment through the List of Segments in your dashboard.

🚧

Related Read: Rules of Segmentation

Please refer to Creating Segments for step-by-step guidance on how you can segment your users by their attributes, behavior (events), and technological preferences.

Creating a New, Single-use Segment

You can also choose to create disposable segments or segment users specifically for the campaign and avoid adding it to the List of Segments in your dashboard.

As shown above, this can be achieved by leaving the field, Name blank while creating the segment. In doing so, it will become an Ad hoc segment in your dashboard which will be available only for sending the campaign you're currently creating.

Apply Universal Control Group

📘

Conditional Option

This is a conditional option which will be shown only if the you have created Universal control group in your account. Click here to know how to create Universal control group.

• When the box is checked, the campaign will not be sent to users who are part of the Universal Control Group in the segment that is selected.
• When the box is unchecked, the campaign will be sent to all users that are part of the segment inclusive of the Universal Control Group users.

Step 2: Specify When to Show, Which Screen to Show on & How Many Times to Show

Given the highly targeted nature of In-app Notifications, they have been categorized as Triggered campaigns across your dashboard. These are on-going cycles of communication that are triggered for a specific user only when they:

• Perform a certain action or a combination of several actions (Custom Events) in your app (Configure for your campaign)

• Spend a certain amount of time browsing through your app or a specific screen in a session (Configure for your campaign)

• Visit a specific screen in your app (Configure for your campaign)

• Visit a specific number of screens (2, 3, 4...) in a session (Configure for your campaign)

• Perform a combination of a few/all the conditions listed above

This makes In-app an ideal channel to create contextual app experiences that enable users to move along their lifecycle and stay engaged for longer durations.

As highlighted above, we have divided Step 2: When into two sections:

• Campaign Schedule (helps you determine the lifespan of the campaign)
• Where and When to Show (helps you define the targeting rules, where, when & how many times to show the message in your app)

Here's how you can configure these settings:

1. Setup Campaign Schedule

Since all In-app Campaigns are on-going cycles of communication, you can choose to run these for specific periods of time by defining a Start Date and End Date.

Step 1: Specify the Start Date or the date-time on which the campaign should start getting shown to the target audience. As highlighted below:

• Select Now to activate the campaign immediately
• Select Later to activate the campaign at a later date-time

Step 2: Specify the End Date or the date-time on which the campaign should cease getting shown to the target audience. As highlighted above:

• Select Never to run the campaign indefinitely (you can always Pause the campaign through its Campaign Overview)
• Select Later to end the campaign at a specific date and time in the near future

2. Specify Where & When to Show

These settings allow you to specify the app screens on which the message must be shown and the context in which users will receive it.

As highlighted above:

• Select Show on any screen as soon as the user opens the app to engage them as soon they start their session

• Select Show on specific screens and/or show when specific conditions are met to engage users only in the context of their app interactions, in real-time

  • Selecting this option allows you to configure the following rules:
    • Where to Show (Define the screen(s) on which the message will be shown to users)
    • When to Show (Define the context in which users will be shown the message)

Let's show you how you can configure these options:

🚧

Skip to 3. Specify How Many Times to Show (Show Limit) to complete *Step 2: When, of the campaign creation process.

Step 2.1: Where to Show

🚧

Please Note

This rule can be configured only if you have selected,Show on specific screens and/or show when specific conditions are met under 2. Where & When to Show

Here you can define exactly where you'd like to show the In-app Message by specifying names of app screens and/or data points (tracked across your app) that indicate specific user-app interactions.

As highlighted above:

• Select On screens that meet certain Screen Name conditions to show the message only on specific app screens (How it works)

• Select On screens that meet certain Screen Data conditions to show the message only when users interact with your app in a specific way, no matter which screen (How it works)

• Select both options to show the message on specific app screens when users interact with them in a certain way (How it works)

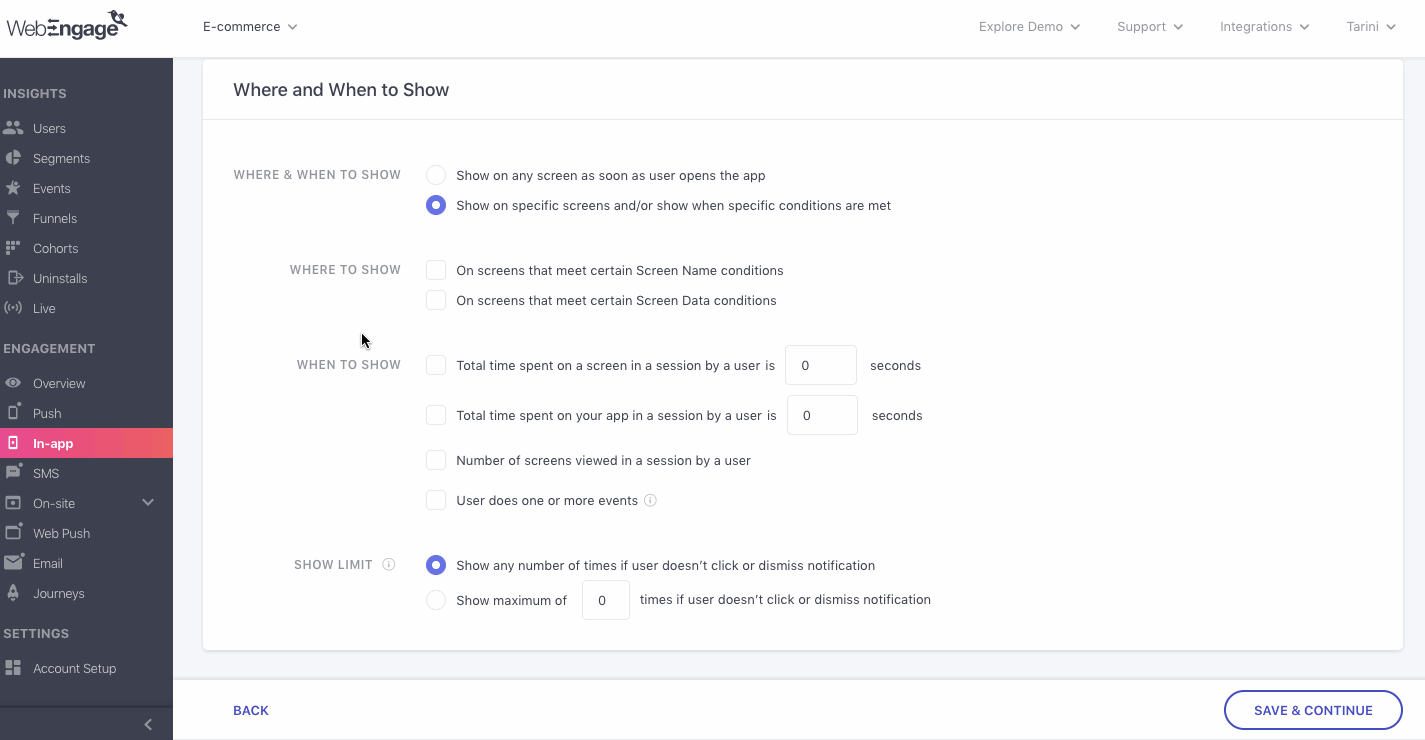

In-app Targeting by Specifying Screen Name

You can choose to selectively engage users who visit a specific screen or a combination of related screens, in an on-going session. Here's how you can configure this targeting rule:

Step 1: Click the checkbox to select the option, On screens that meet certain Screen Name conditions against Where to Show

Step 2: As shown above, select a condition to set the context in which the Screen Name(s) should be understood by your app

📘

Screen Names can be prefixed by any one of the following conditions:

• Equal to

• Not equal to

• One of

• None of

• Starts with

• Does not start with

• Ends with

• Does not end with

• Matches regex (regex is a sequence of characters that define a search pattern - used in several coding languages. Detailed read)

• Does not match regex

• Contains

• Does not contain

• Is empty (implies that message can be shown on any screen that has not been tagged with a name in your app's code)

• Is not empty (implies that message can be shown on any app screen that has been tagged with a name in your app's code)

Step 3: Add the Screen Name(s), as tagged in your app's code

• Please check in with your tech team to ensure that the values entered here match the names in the code. Any discrepancy between the two can cause your campaign to fail or show up randomly across your app, leading to confusing user experiences.

Step 4 (Optional): Click the Add Condition button to add more Screen Names to the targeting rules

• In doing so, a new row will be added to the screen. Repeat Step 2 & 3 and proceed.
• Further, you can choose to club multiple Screen Names by the AND/OR logic to define the scope of In-app targeting.

🚧

How It Works: Clubbing Screen Names by AND/OR Logic

• AND: Clubbing Screen Names by the AND logic helps you narrow down the number of users who receive the In-app Notification. It implies that a user will have to visit all the specified Screens, in any order, to receive the campaign.

• OR: Clubbing Screen Names by the OR logic helps you increase the number of users who receive the In-app Notification. It implies that a user will receive the campaign if they visit any one of the specified Screen Names.

🚧

Skip to configuring When to Show to define the context in which a user should receive the In-app Notification

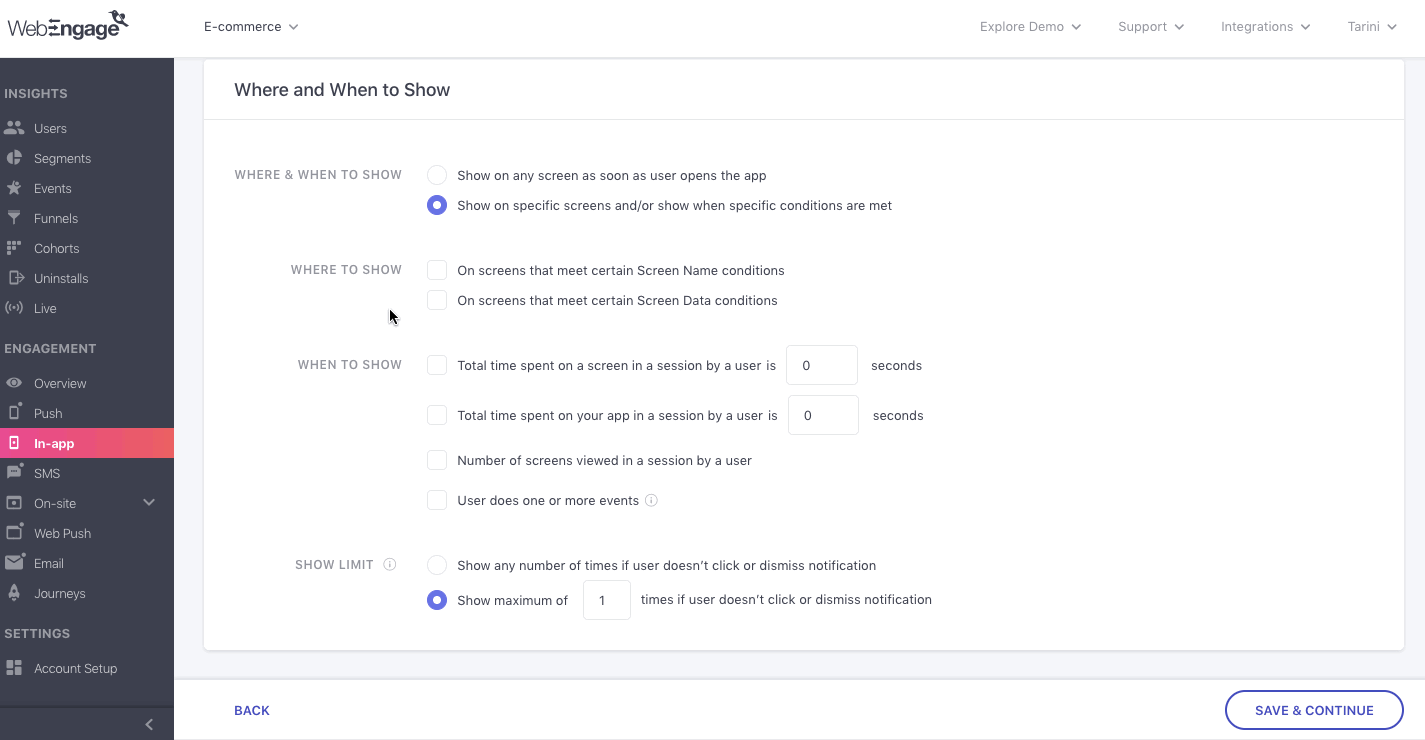

In-app Targeting by Specifying Screen Data Attribute

Depending on the end-goal of your campaign, you can choose to engage only those users who interact with your app in a specific manner, no matter which screen they're on. This can be achieved by tracking app-user interactions as Screen Data Attributes. Here's how you can configure this targeting rule:

Step 1: Click the checkbox to select the option, On screens that meet certain Screen Data conditions against Where to Show

Step 2: As shown above, add the Screen Data Attribute(s), as tracked in your app's code

• Please check in with your tech team to ensure that the values entered here match the values in the code. Any discrepancy between the two can cause your campaign to fail or show up randomly across your app, leading to confusing user experiences.

Step 3: Select the appropriate data type, as conveyed by your tech team (so that your app understands the value of the specified Screen Data Attribute)

📘

Any one of the following data types can be selected here:

• Number: Indicates that the value of the specified data attribute contains only numbers.

• String: Indicates that the value of the specified data attribute contains text, numbers, special characters, spaces or a combination of these.

• Boolean: Indicates that the specified data attribute has one of two possible values denoted by true or false.

• Date: Indicates that the value of the specified data attribute contains a date/date-time.

Step 4 (Optional): Click the Add Condition button to add more Screen Data Attributes to the targeting rules

• In doing so, a new row will be added to the interface. Repeat Steps 2 & 3 to proceed.
• Further, you can choose to club multiple Screen Data Attributes by the AND/OR logic to define the scope of In-app targeting.

🚧

How It Works: Clubbing Screen Data Attributes by AND/OR Logic

• AND: Clubbing Screen Data Attributes by the AND logic helps you narrow down the number of users who receive the In-app Notification. It implies that a user will have to meet all the specified Screen Data conditions to receive the campaign.

• OR: Clubbing Screen Data Attributes by the OR logic helps you increase the number of users who receive the In-app Notification. It implies that a user will receive the campaign only if they meet any one of the specified Screen Data conditions.

🚧

Skip to configuring When to Show to define the context in which a user should receive the In-app Notification

Thus, whenever a user visits a screen that contains the term '_listing' in their tagged Screen Name AND happens to explore any of the specified Sub-category IDs, they'll be nudged with the Free Shipping offer!

Step 2.2: When to Show

🚧

Please Note

This rule can be configured only if you have selected,Show on specific screens and/or show when specific conditions are met under 2. Where & When to Show

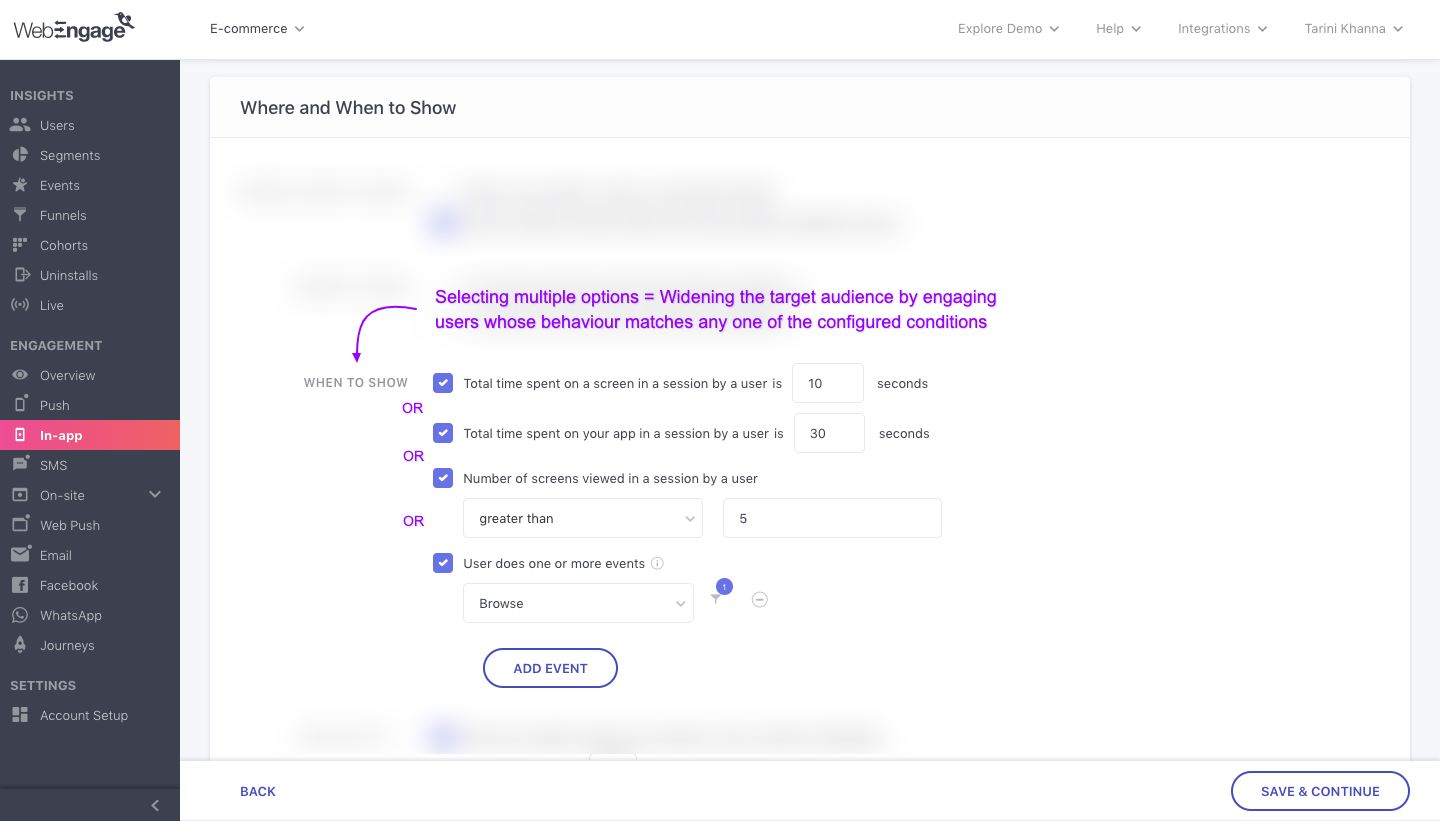

Here you can define the context in which the In-app Notification must be shown to a user during an on-going session. This could be anything like - total time spent on a screen or in the app, a particular action (Custom Event) performed by the user, and so on.

As highlighted above:

• Select Total time spent on a screen in a session by a user is seconds to display the message only once the specified duration is exceeded

• Select Total time spent on your app in a session by a user is seconds to display the message only once the specified duration is exceeded

• Select Number of screens viewed in a session by a user is <select value>, to display the message only once the specified criteria is met

• Select User does one or more events to display the message only if the user performs an action (Custom Event) or a combination of several actions (in any order), in the context of the added Event Attribute filter(s), during a session (How it works)

• Select all or multiple options to display the message when a user's actions match any one of the configured rules

  • For example, in the visual above, the In-app Notification will be shown to all users who have spent more than 10 secs on a screen OR have spent more than 30 secs on the app OR have viewed more than 5 screens OR have performed the event, Browse.

Triggering In-app Notification When User Performs an Event or Multiple Events

Selecting the option, User does one or more events against When to Show, allows you to engage only those users of the target audience that perform specific actions in your app, in a session. These actions (Custom Events) could be anything like Browse, Search, Page_Viewed, Product_Viewed, Checkout_Started, Wishlist_Viewed and so on.

Here's how you can configure this rule:

Step 1: Click the dropdown nested under the option to select a Custom Events (in the context of which users will receive the message)

Step 2 (Optional): Click the Filter icon to add Custom Attribute filters to the selected Event

• Further, you can choose to club multiple event attributes by the AND/OR logic to define the scope of occurrence of the event. Doing so ensures that the In-app Notification is triggered for a user only when they perform the event in the context of the applied attribute filters.

🚧

How It Works: Clubbing Custom Event Attributes by AND/OR Logic

AND: Clubbing attribute filters by the AND logic helps you narrow down the number of users who receive the message. It implies that the In-app campaign will be shown to only those users who perform the Custom Event in the context of all the event attributes added to it.

OR: Clubbing attribute filters by the OR logic helps you increase the number of users who receive the message. It implies that a user will receive the campaign if they perform the Custom Event in the context of any one of the specified event attributes.

Step 3 (Optional): Click the Add Event button to specify more actions

• In doing so, a dropdown will be added to the screen, allowing you to select from a list of all the Custom Events being tracked for your account. Repeat Step 2 & 3 to proceed.
• Further, you can club multiple Custom Events by the AND/OR logic to define the context in which the occurrence of all specified events should be understood by us.

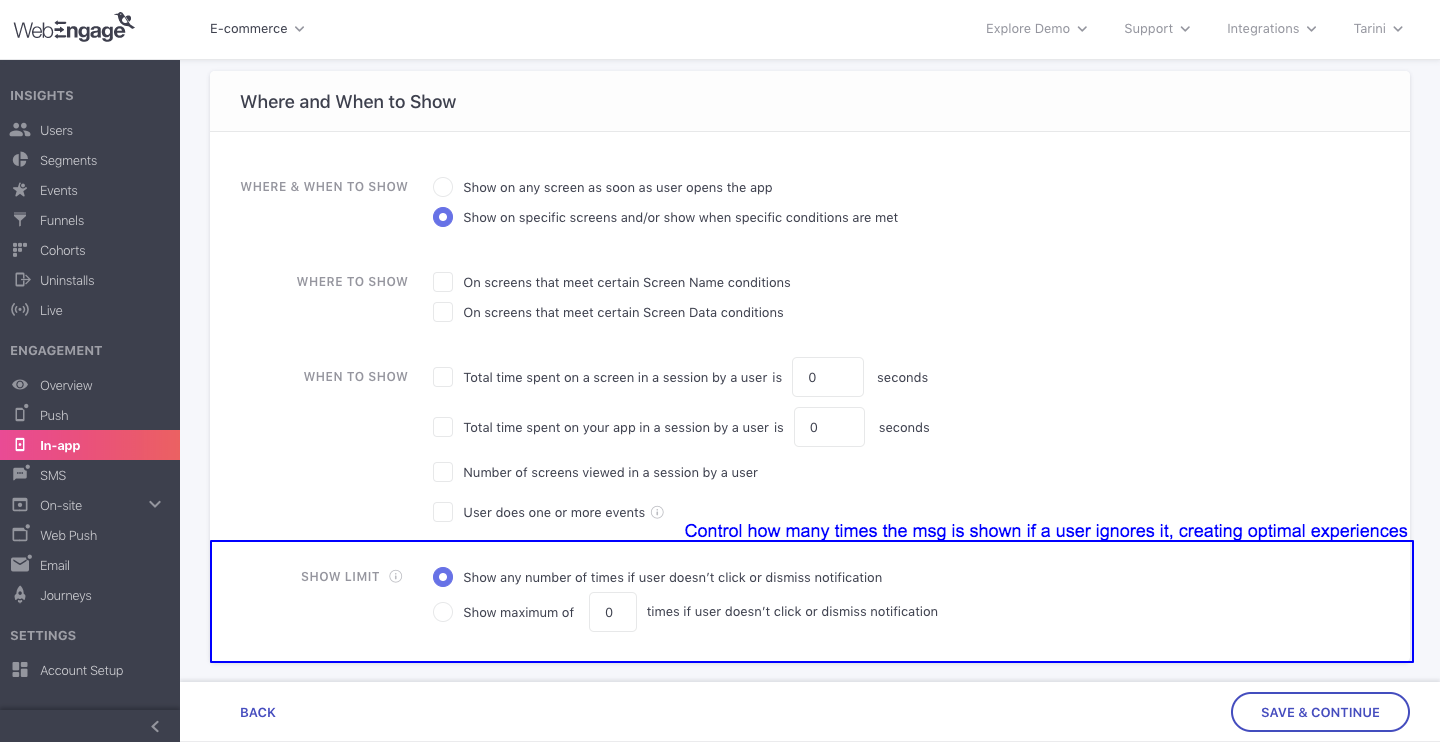

3. Advanced Control for App Personalisation Channels

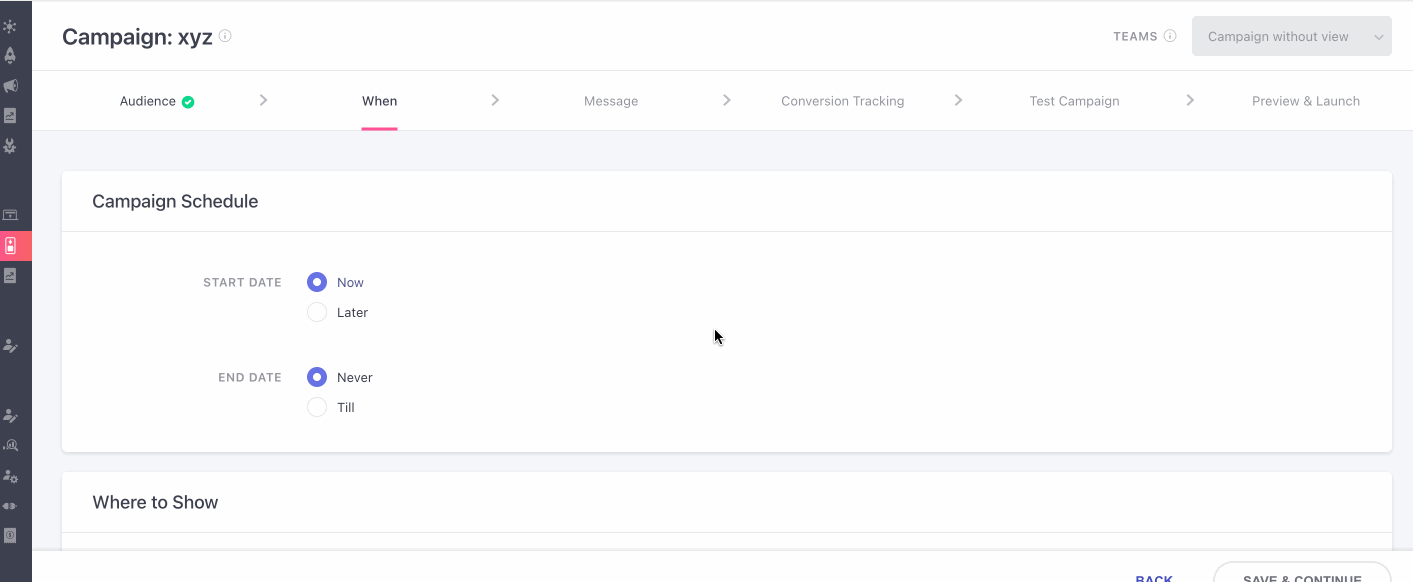

We have now added additional controls to our In-app Notifications, that will allow you to define a campaign's view limits, recur campaigns, etc. Here is more information on the specifics of the feature.

Frequency Capping

This setting caps the number of notifications a user can view within a session along with option to set the time interval between 2 notifications. You can set Frequency Capping as follows:

• Follow: Configured account level FC setting will be followed.
• Ignore: Configured account level FC setting will be ignored.

📘

Set Frequency Capping Limits

If you have not set up Frequency Capping yet, then you can choose to configure it by clicking the Configurations > Frequency Capping on the left navigation panel. Once set, you will be able to send all your campaigns with FC enabled.

Detailed read on How to configure FC & Time Gap.

Lifecycle

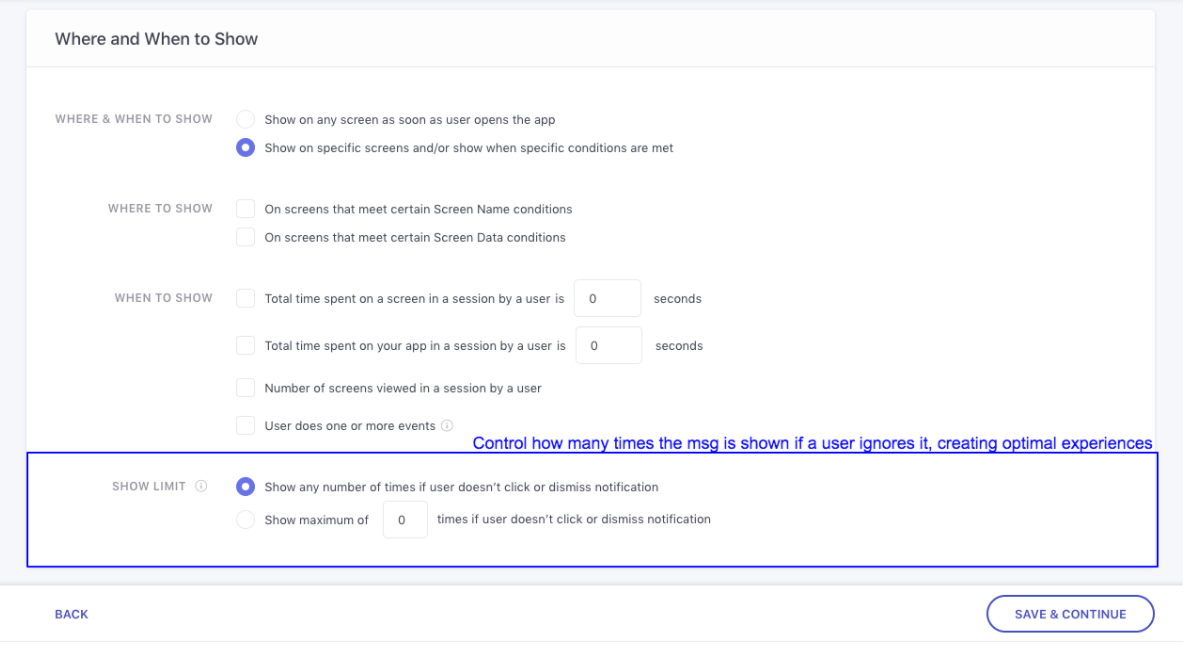

Lifecycle is an enhancement to our earlier ‘Max Limit’ option. This feature is a campaign level setting that allows you to set the number of times a notification is to be shown to a user and whether it should be repeated/ recurred. This can be set using the following two choices:

• A Cycle Ends when Clicked Once with No View Limit: When you select this option, your users will keep receiving the notification (in every new session) until they click on it once. If they have either viewed or dismissed the notification, the cycle will persist.
• A Cycle Ends when Clicked Once or Viewed up to 'n' times: When you select this option, you have the flexibility to determine the maximum number of times a notification should be viewed by a user. However, the cycle concludes with just one click. Let's illustrate this with an example: If you set the view count to 5, your users can potentially view the campaign notification up to 5 times. But, if they click on the notification during the 4th viewing, the cycle ends, and they won't encounter it for the 5th time.

Repeat the cycle
Once you've made the previous selections, you also have the flexibility to determine the frequency at which your cycle repeats—options include Hourly, Daily, Weekly, or Monthly; these resets occur based on the calendar week that starts from Monday to Sunday and not when the user views them. Moreover, you can decide the duration of this repetition: either 'Until the campaign ends' _or the 'Upto'_ option.

👍

Here's an example of what happens when you choose either of the options

Example 1: If you choose to repeat the cycle ‘Daily’ and 'Until the campaign ends,' your users will receive the notification every day until the campaign concludes. Consider the same scenario as the previous example, the notification will be sent to your user upto 5 times in a day (in different sessions), but when they’ve clicked it on their 4th viewing, they won’t be seeing it for the 5th time on that day. However the next day the counter will reset and user will again become eligible to view the campaign upto 5 times or until clicked once. This cycle will continue until the campaign ends.

Example 2: If you choose the 'Weekly' option and 'Upto' 3 times then, considering the previous example, a user can view the notification up to 5 times a week (as per calendar week) but if they click on it, for instance, on their 4th viewing on Tuesday, they won't see it for the rest of the week (until Sunday). But because the cycle is set to repeat weekly, it will restart again at the start of the new calendar week i.e Monday. Now consider following scenarios for Week 2, 3 and 4 -

Week 2 - User completes all 5 view across the week but never clicks
Week 3 - User never opens the app. (This will be counted in the cycle)
Week 4 - User views the campaign once and clicks on it

Since the limit of repeating the cycle was 'Upto 3', the user will no longer be viewing the campaign after 4th week's 1st view (since the campaign was clicked).

Step 3: Create the Message

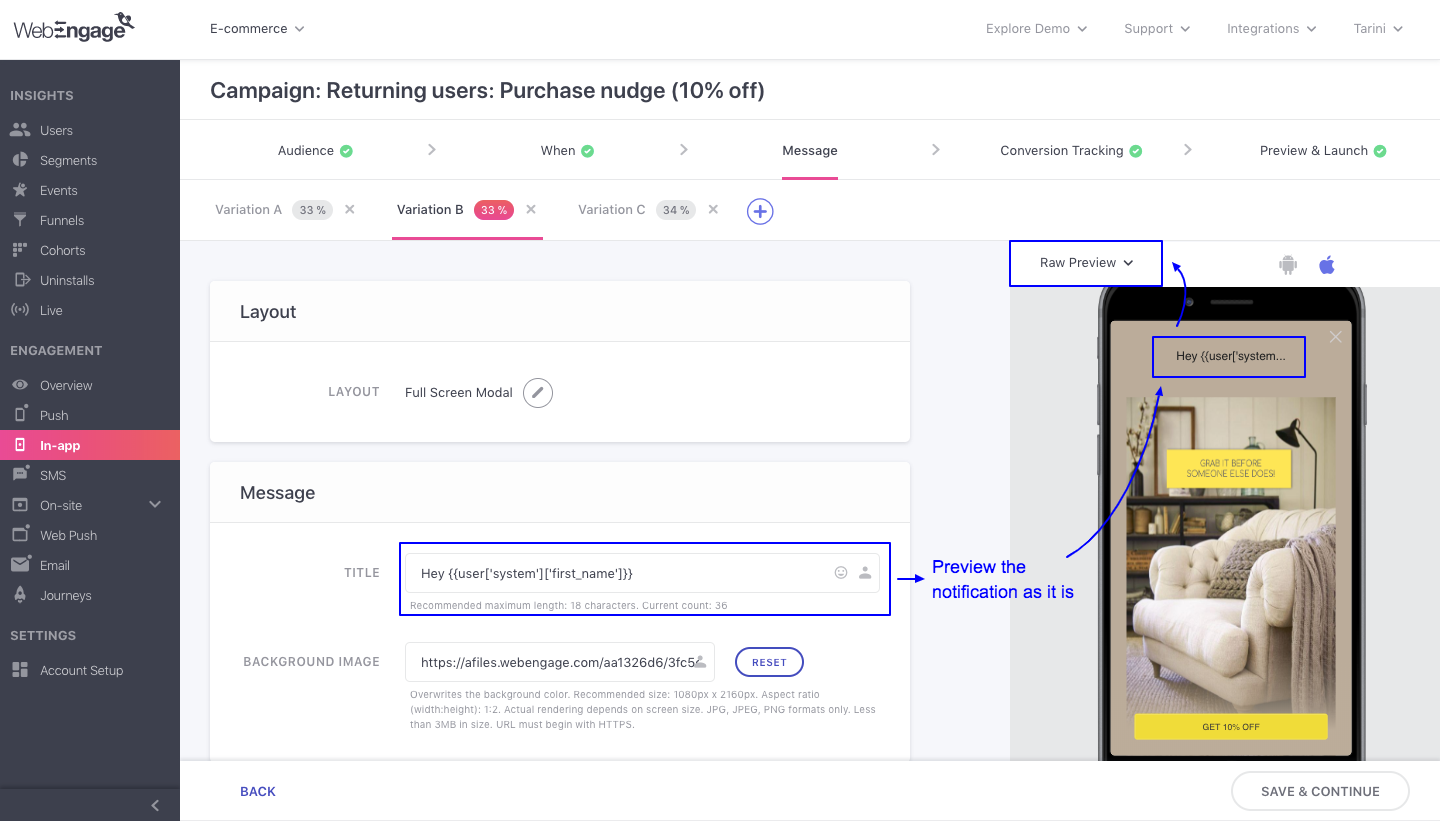

As highlighted above, the message creation interface comes loaded with intuitive features like Variations, Layouts, Deep linking, Dynamic Personalization, Themes and Message Preview - enabling you to create high impact In-app Notifications in minutes.

Let's get you acquainted with each feature:

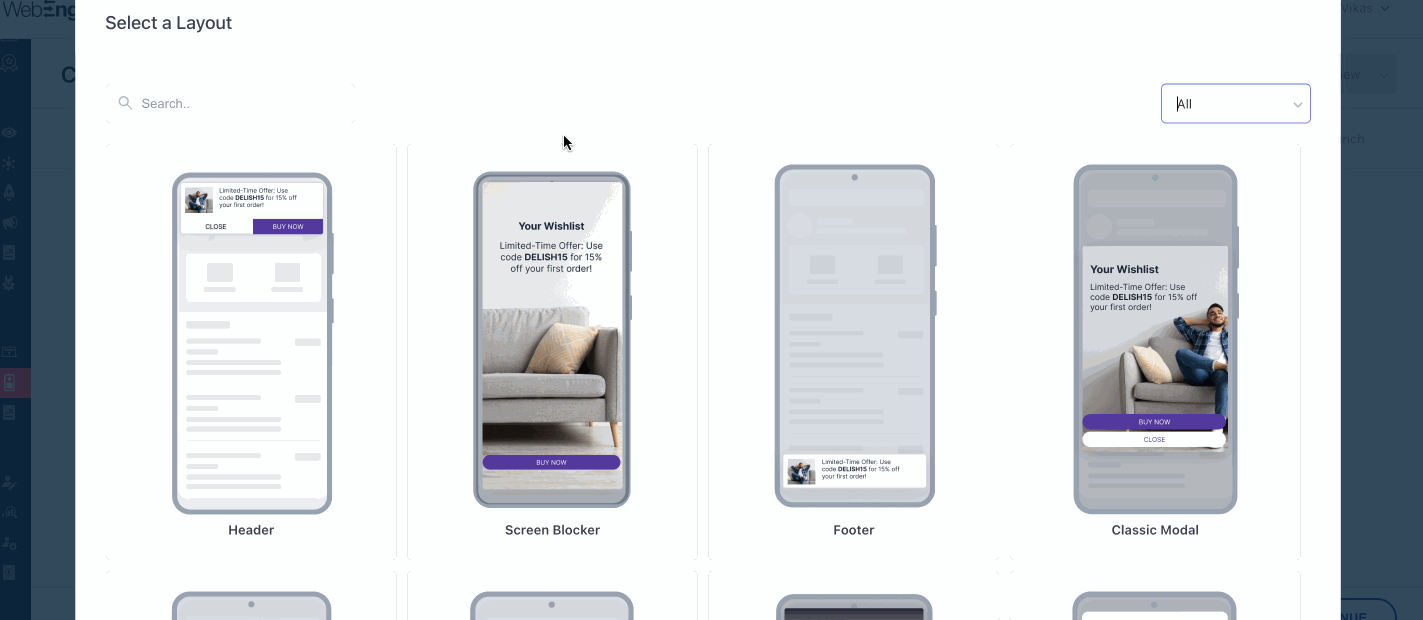

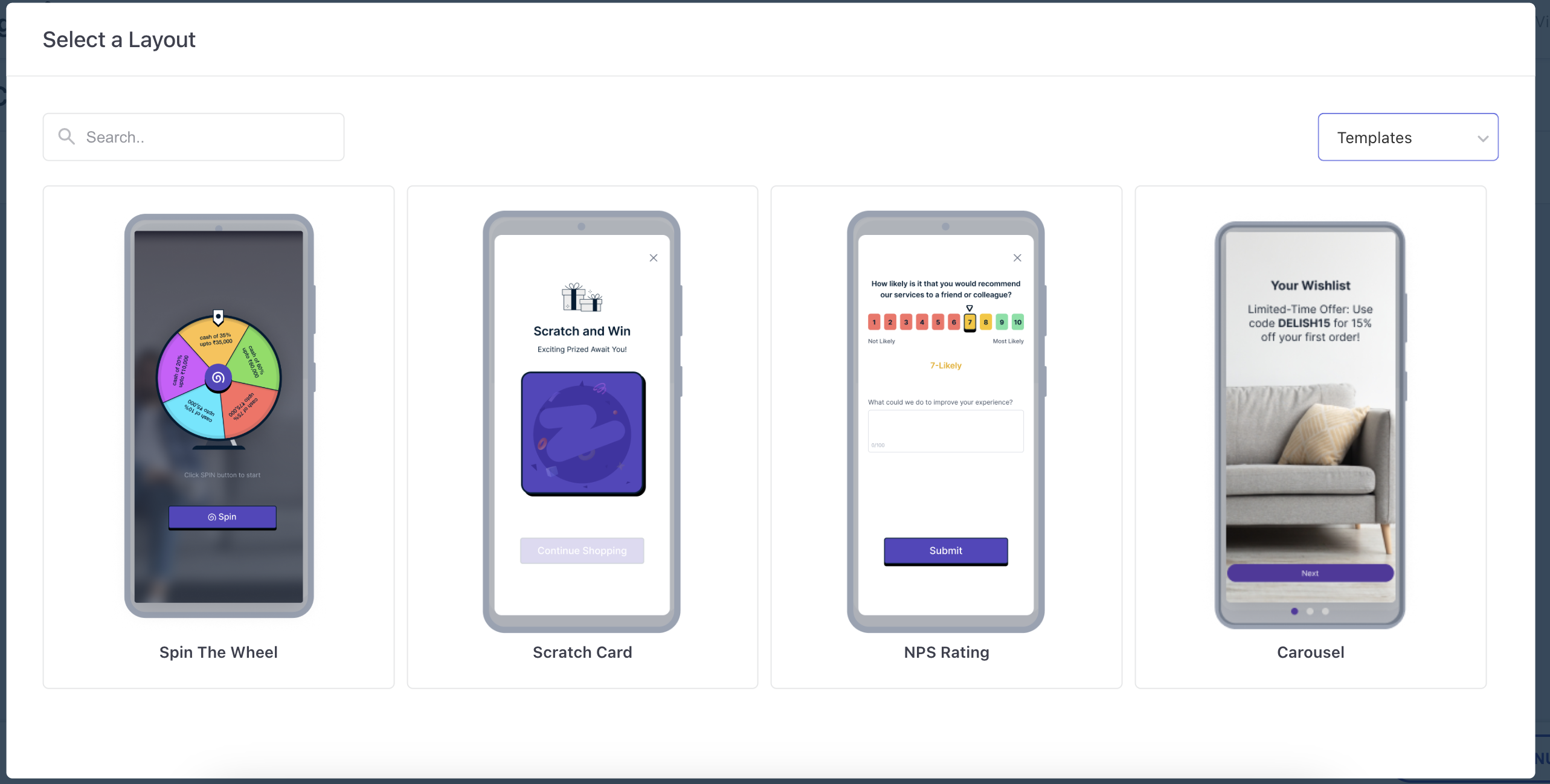

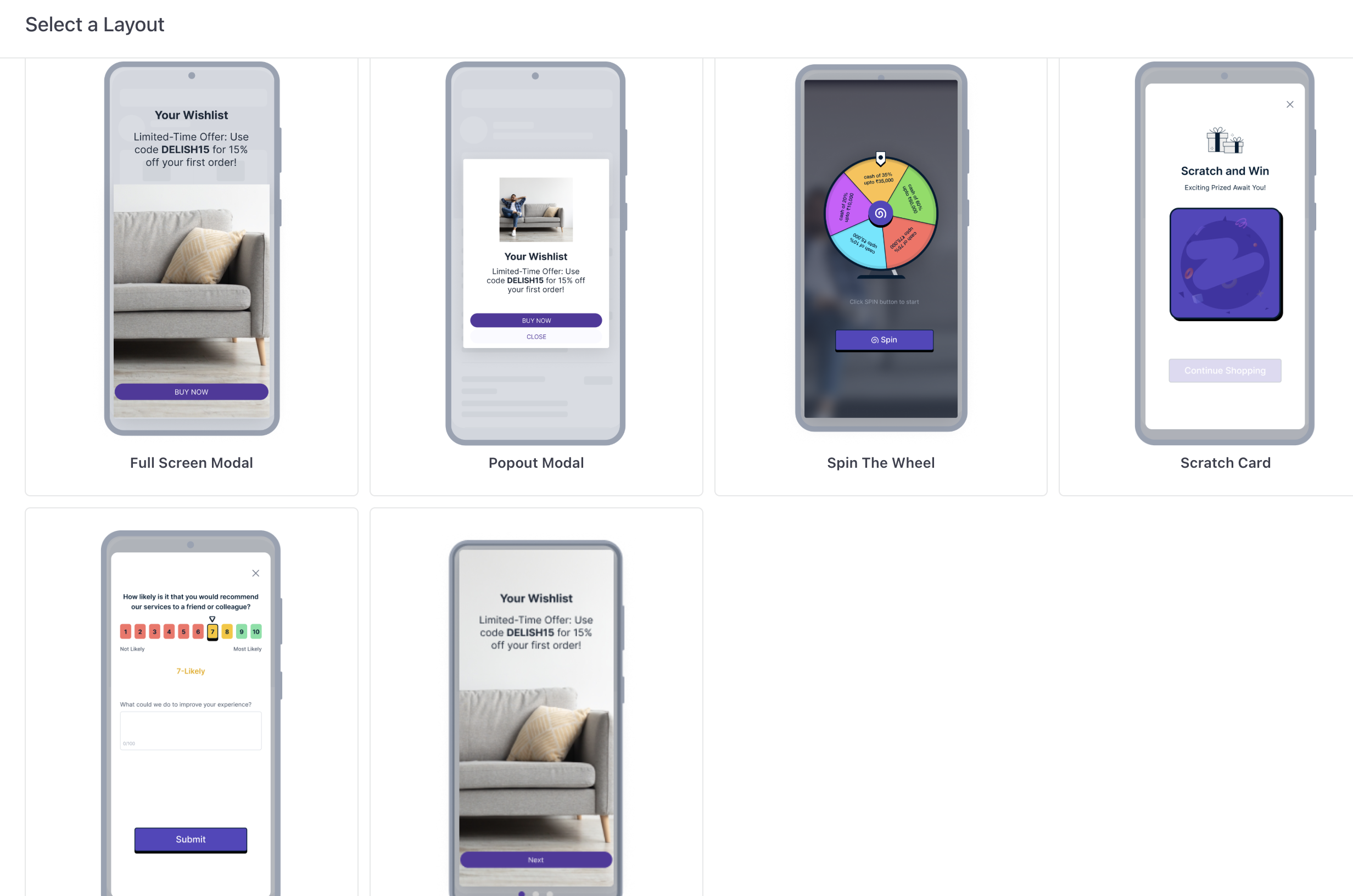

Select a Layout or Template

You can choose from the following ready-to-use templates or layouts to create a Variation.

Let's quickly walk you through each layout:

Layout

Header

A short and simple template, Header Notifications are ideal for keeping users engaged with contextual offers and updates. You can easily tailor the message, icon and button link to each user and customize the theme as per your brand guidelines in an instant!

For example, in the visual above, we have personalized the notification to the user's first name and the last product they viewed in your app. All you need to do is:

• Step 1: Create a Personalized Message
• Step 2 (Optional): Add a Background Image
• Step 3: Configure the Buttons
• Step 4: Customize the Theme and you're good to go!

🚧

Related Read

Image and text guidelines for creating Header style In-app messages

Footer

A small buttonless template, you can easily personalize Footer Notifications to each user's preferences and behavioral history, creating minimally intrusive In-app experiences.

For example, in the visual above, we have tailored the notification to the user's first name and the last product they viewed in your app. All you need to do is:

• Step 1: Create a Personalized Message
• Step 2: Configure the On-click Action
• Step 3: Customize the Theme and you're good to go!

🚧

Related Read

Image and text guidelines for creating Footer style In-app Messages

Popout Modal

A comprehensive template, the Popout Modal is ideal for prompting users with a prominent message, accompanied by a thumbnail-sized image and CTA.

As highlighted above, you can easily customize the template's button, image, links, message, and theme to create highly contextual experiences. All you need to do is:

• Step 1: Create a Personalized Message
• Step 2: Configure the Button
• Step 3: Customize the Theme and you're good to go!

🚧

Related Read

Image and text guidelines for configuring the Popout Modal in Landscape or Portrait Mode

Classic Modal

A rich media template, the Classic Modal is ideal for engaging users with brief, yet visually enticing messages.

As highlighted above, you can easily customize the template's buttons, image, links, message, and theme to create highly contextual experiences. All you need to do is:

• Step 1: Create a Personalized Message
• Step 2: Add a Background Image
• Step 3: Configure the Buttons
• Step 4: Customize the Theme and you're good to go!

🚧

Related Read

• Image and text guidelines for configuring the Classic Modal in Landscape or Portrait Mode.

• Creating Custom HTML templates for Classic Modal.

Full-screen Modal

A visually impressive template, the Full-screen Modal brings the best of both - message & media to help you engage active users in style.

For example, in the above visual we have personalized the notification's message and image to the user's first name, the product last viewed by them, respectively. All you need to do is:

• Step 1: Create a Personalized Message
• Step 2: Configure the Buttons
• Step 3: Customize the Theme and you're good to go!

🚧

Related Read

• Image and text guidelines for configuring the Full-screen Modal in Landscape or Portrait Mode.

• Creating Custom HTML templates for Full screen Modal.

Screen Blocker

A pure rich media template, screen blockers are ideal for promoting fashion collections, movies, courses, albums and the likes of it, with custom banners.

For example, in the above visual, we have contextually personalized the notification's banner to the product, last viewed by the user. All you need to do is:

• Step 1: Add a Background Image
• Step 2: Configure the Buttons
• Step 3: Customize the Theme and you're good to go!

🚧

Related Read

Image specifications for Screen-blocker style In-app messages in Landscape or Portrait Mode

Depending on the layout selected by you, the steps of message creation may vary. Here's a generic guide to help you create dynamically personalized In-app Notifications:

Add Message

👍

Fact Check

If your message is in a language that incorporates right-to-left alignment, then it will automatically be oriented that way when users receive the In-app Notification!

Add Title & Description

(Applicable to all Layouts except Screen Blocker | Number of characters accepted for each Layout differs, details)

Using the personalization icon nested in the fields, Title and Description, you can easily create dynamically personalized content. Simply select a value from a list of all the Custom User attributes_and Custom Events_ being tracked for your app and place them appropriately within the text. We'll add the exact value tracked for each user, helping you deliver one-on-one messages at scale :)

For example, in the above visual, we have personalized the message with: User attribute, First Name - {{user['system']['first_name']}}

Thus, whenever the message is sent to a user, we will populate the First Name with the respective values gleaned for their user profile.

Add Icon/ Background Image

(Icon & Image specs for each Layout)

As shown above, a generic Icon/Image can be added in two ways:

1. Insert Icon/ Image Link: The image must be hosted on a crawlable/publicly accessible domain to ensure that it renders for all users receiving the message.

2. Upload Icon/ Image: Click the Upload button placed next to the field, image and select a file from your desktop. In doing so, the image will get hosted on WebEngage's domain: https://afiles.webengage.com.

You can always click the Reset button to link/upload a new image.

🚧

Personalizing Notification's Icon/Image to Each User's Interests

You can easily personalize images to the preferences & behavioral history of your app users in any of the following ways:

• Method 1: Pass image_url as a custom event attribute, attached to a custom event gleaned for your app (Step-by-step guide on how to execute this)

• Method 2: Build the image URL by specifying a parent link and adding a custom event attribute/custom user attribute as the path parameter. Then manually add the image format like, .png, .jpeg, .jpg, .gif, at the end of the link structure (Step-by-step guide on how to execute this)

Templates

Spin the Wheel

WebEngage now introduces pre-built HTML templates that you can use for In-app campaigns to make your users more entertained, with the spin the wheel template.

• Once you reach the message tab of creating your In-app notifications, you are presented with a ‘Select a Layout’ where you can find various layouts and templates WebEngage provides.
• Click on ‘Spin the Wheel’ template either by scrolling down in this tab or by using the search tab, or by clicking on ‘templates’ in the dropdown on the right.

• You’re then presented with the following fields
  • The Layout Section consists of 2 fields :
    • Template i.e. Spin the Wheel, and
    • Type in portrait mode.

Note: This template will only be shown when the phone is in Portrait Mode and will not appear when the phone is in landscape mode.

• You can see the pre-entered HTML code of Spin the Wheel template, which can be customized according to your preference.

Event Tracking

We also offer you the ability to track the events that users will be doing with respect to this template.

Here are 2 custom events that you can track for the Spin the Wheel template, which can be viewed from the Event Analytics page.

• When users click on the Spin button ‘In-app Template - Spin Clicked’ is tracked and following are the attributes of this event - Win, Respin, and Respin count.
• When users click on the copy coupon code ‘In-app Template - Copy Clicked’ is tracked, and this is the attribute for the event is- Coupon Code.

📘

Please note

You would need to update to Android Core SDK v4.11.0 and iOS Core SDK v6.7.0 for tracking spin button and copy code events.

On the campaign overview page you can find the stats of ‘Clicks’ and ‘Closes’ which are tracked on ‘Continue Shopping’ and ‘Close’ icon clicks respectively.

Scratch Card

• Once you reach the message tab of creating your In-app notifications, you are presented with a ‘Select a Layout’ where you can find various layouts and templates WebEngage provides.
• Click on ‘Scratch Card’ template either by scrolling down in this tab or by using the search tab, or by clicking on ‘templates’ in the dropdown on the right.
• You’re then presented with the following fields. The Layout Section consists of 2 fields :
  • Template - Scratch card, and
  • Type - portrait mode.

Note: This template will only be shown when the phone is in Portrait Mode and will not appear when the phone is in landscape mode.

You can see the pre- entered HTML code of Scratch Card template, which can be customized according to your preference. You also have the option to show or hide the close button, which by default will be selected as hide.

Event Tracking

You will also have the ability to track the events that users will be doing with respect to this template.
Here are 2 custom events that you can track for the Scratch card template, which can be viewed from the Event Analytics page.

• When users scratch the card, ‘In-app Template - Card Scratched’ and the attributes are: Card Scratched, Win
• When users click on the Close button, ‘In-app Template - Close clicked’ is tracked, and this is the attribute for the event is - Coupon Code.

On the campaign overview page you can find the stats of ‘Clicks’ and ‘Closes’ which are tracked on ‘Continue Shopping’ and ‘Close’ icon clicks respectively.

NPS Rating Template

WebEngage now introduces pre-built HTML templates that you can use for NPS surveys to make gathering user feedback more engaging.

• Once you reach the message tab of creating your In-app notifications, you are presented with a ‘Select a Layout’ page where you can find various layouts and templates WebEngage provides.
• Click on ‘NPS Rating’ template either by scrolling down in this tab or by using the search tab, or by clicking on ‘templates’ in the dropdown on the right.

Note: This template will only be shown when the phone is in Portrait Mode and will not appear when the phone is in landscape mode.

• You can see the pre-entered HTML code of the NPS Rating template, which can be customized according to your preference.

Event Tracking for NPS**

• Response tracking of your users can be done by the Custom events on ‘Submit’ button click and passing rating count and response as attributes.
• Event name of NPS Rating ‘Submit’ button click is ‘In-app Template - Submit NPS Rating Clicked’.
• Attributes for ‘In-app Template - Submit NPS Rating Clicked’ :- Rating : 1 - 10 ; Response filled : Yes/No ; Response : String.

Raw Preview

As the name suggests, it renders the In-app Notification with the raw message and attributes, as added by you to the Message.

User Preview

Allows you to view the Notification for an actual user from your account by populating it with data from their user profile, as per the elements of personalization added to the Message.

For example, in the visual above, we have visualized the In-app Notification for the User ID, katherinem_2206, personalizing the Icon Image, Button Link and Message. Here's how you can go about it:

Step 1: Select User Preview from the dropdown placed on the top left

• In doing so, you will be prompted by a pop-up allowing you to search for a user to populate the corresponding attribute and event values.

Step 2: Enter the User ID, preferably of a power user included within the target audience

• Access List of Users of the campaign's target segment (as specified at Step 1: Audience) to identify an ideal user

Step 3: Click the Search and Populate button

• In doing so, you will be shown a summary of the values against the respective attributes and events included in the message. This is a good way to ensure that all the values are available for the user, if not then you can enter an alternate User ID.

Step 4: Click the See Preview button on the pop-up to visualize the notification with real user data.

Configure Buttons (CTA) & Close Button

Barring Footer Style Notifications, you can add customized buttons to all the In-app Layouts being created by you. As shown below, you can also choose to disable the Buttons for all Layouts if the end goal of the campaign is to simply convey information.

Here's how you can configure CTAs:

🚧

Or skip to deep linking entire footer style notification to a specific app screen

Setting up Call-to-Action Buttons (Primary/Secondary)

Step 1: Add Label (Text): Label refers to the button text, motivating users to perform a certain action. As shown above, we have added a custom label, BUY NOW nudging active users to start shopping before the sale ends!

Step 2: Insert Deep Link (On-click Action): You can deep link buttons to specific screens in your Android and iOS apps, as shown above.

Further, you will notice that the deep link specified for the Android app is in a different format compared to the iOS link. This is because we have created a unique URI for our Android app screens while we are leveraging Universal Links for the iOS app (the same link is also used for our website).

🚧

Personalizing On-click Action to a User's Preferences or Behavioral History

You can easily personalize the On-click Action to your users based on the Custom User Attributes and Custom Events gleaned for them. This can be achieved in any of the following ways:

• Method 1: Pass screen_url as a custom event attribute, attached to a custom event gleaned for your app (Step-by-step guide on how to execute this)

• Method 2: Build the deep link by specifying a parent link and adding a custom event attribute/custom user attribute as the path parameter (Step-by-step guide on how to execute this)

Setting Up Close Button

(Applicable only to Header & Classic Modal)

It's always advisable to allow users to close In-app Notifications to ensure that they continue browsing instead of quitting your app. However, in case you'd like to force specific behavior like app updates, joining a live class/session, renewing video streaming subscription and so on, then you can always choose to hide the button by clicking the toggle switch, as shown below.

Further, you can customize the button's label or text to anything you like. For example, we have changed it to a more subtle term, NO, THANKS for our notification.

👍

Fact Check

Each time a user clicks the Close Button, we track it as the performance indicator - Unique Closes for all In-app campaigns.

Setting up On-click Action

(Applicable only to Footer Notifications)

Just like you can deep link buttons to specific screens of your Android and iOS apps, you can choose to deep link a Footer Notification by specifying an On-click Action, as shown below. This link will be applied to the entire notification, barring the Close Icon. (How to personalize the on-click action to each user's preferences or behavioral history)

Customize Theme

Depending on the Layout selected by you, the number of customizable elements may vary. Hence, we have mentioned the limitations of each component concerning all the available layouts, in the following sections.

🚧

Customizing In-app Notification's Appearance in Your App Before Showing it to Users

While we have tried our best to accommodate all your branding/theme related needs, you can always make additional changes in the notification's colors, fonts, icons, button links, text in your app, before showing it to your users. This can be achieved by setting up In-app Callbacks.

Here's how you can go about it:

• Step 1: Tie up with your tech team to set up the callback, In-app Received or In-app Prepared. Here's how you can go about it:

  • Android apps
  • iOS apps
  • React Native apps
  • Hybrid apps (Cordova, PhoneGap, Ionic)
  • Xamarin.Android apps
  • Xamarin.iOS apps

• Step 2: Collaborate with the tech guys to build the required customizations into your app's code so that it knows what to do when the callback is called.

• Step 3: Test and implement :)

Here's how you can create a custom theme for each In-app Notification:

Configuring Close Icon

(Applicable only to Footer, Screen Blocker & Full-screen Modal Layouts)

Close Icon: It's always advisable to allow users to close In-app Notifications to ensure that they continue browsing instead of quitting your app. However, in case you'd like to force specific behavior like app updates, joining a live class/session, renewing video streaming subscription and so on, then you can always choose to hide the close icon by selecting Hide, as shown below.

Close Icon Color: As shown above, using the Color Selector, you can customize the Close Icon's color as per the background hues.

👍

Fact Check

Each time a user clicks the Close Icon, we track it as the performance indicator - Unique Closes for all In-app campaigns.

Configuring Background Color

(Applicable to all layouts except Screen Blocker)

As shown below, you can customize the notification's background color by selecting a hue from the Color Selector or by specifying a custom CMYK Hex(#) code as per your brand colors.

🚧

Please Note

The color of the Buttons of Classic Modal and Header style notifications are automatically derived from the Background Color and cannot be specified separately.

Configuring Buttons

(Applicable only to Popout Modal, Screen Blocker & Full-screen Modal)

As shown below, you can customize the Button Text Color and Button Background Color by selecting a hue from the Color Selector or by specifying a custom CMYK Hex(#) code as per your brand colors.

Configuring Text & Fonts

(Applicable to all layouts except Screen Blocker)

Font Family: As shown below, you can choose from a list of all the custom fonts uploaded to your dashboard (specifically for In-app campaigns) to customize the Title & Description's font style.

Font Color: As shown above, you can customize the color of your Title and Description by selecting a hue from the Color Selector or by specifying a custom CMYK Hex(#) code as per your brand colors.

Text Alignment: As shown above, you can choose to align the Title and Description to Left, Center or Right, as per your design needs.

Text Wrap: As shown above, if your notification's Title includes a fairly long sentence, then you can choose to Wrap it (by selecting Yes) to ensure that the entire text is displayed.

Creating Custom HTML Templates

(Supported only for Classic Modal and Full screen Modal)

📘

Please Note

JavaScripts are now supported for in-apps, allowing you to create engaging experiences with spin the wheel, carousel, scratch card, and more.

If you would like to run some use cases, which cannot be fulfilled through our Preset templates, then Custom HTML template gives you that flexibility. Custom HTML gives you the capability to completely own up the content area and run engaging in-app notification campaigns as per your use cases. With these Custom templates, you can add GIFs or run Videos within in-app notifications.

To create a campaign with custom template:

• Create a in-app notification campaign
• On Message tab, Select the layout type as Classic or Full screen
• Select the Template as 'Custom HTML' and add the content body in Raw HTML format.

Preview Notification

As shown below, the left half of the campaign creation interface provides a real-time preview of the In-app Notification being created by you.

At any given point, you can toggle between a Raw Preview and User Preview to gauge the notification's appearance for both iOS and Android users (as per the target device selected at Step 1: Audience).

Create Variations

Variations are just different versions of the campaign's message that facilitate easy multivariate testing and are referred to in the following manner in your dashboard:

Variation A: The first version of the message.
Variation B: The second version of the message.
Variation C, D, E: Subsequent versions of the message created for testing.

As shown above, by default the message creation interface consists of a single Variation A.

• You can click on the Plus icon to create up to 5 versions of the message.

  • Select Create New to start building the new Variation from scratch
    • In doing so, you will be prompted to select a Layout to draft the particular variant
  • Select Copy from Variation A (or any of the previous versions) to make minor edits to the new Variation

• Each Variation can be created independent of the other, allowing you to test multiple aspects like its layout, body copy, buttons, links and colors to identify a mix that resonates with your entire target audience. (How to test message Variations)

• The percentage values indicate the share of users, that will receive a Variation and can be customized at Step 4: Conversion Tracking.

Step 4: Set up Conversion Tracking & Variation Testing

The fourth step of campaign creation allows you to measure the effectiveness of your campaign in various ways like:

• Tracking conversions for a specific goal
• Comparing performance against a control group
• Testing multiple variations of the message and identify a winning version

Hence, it has been divided into two sections: Conversion Tracking and Variation Distribution. However, depending on the number of message Variations created by you, the view of Step 4: Conversion Tracking will vary:

When only 1 Variation Exists

As shown below, on proceeding to this step from Step 3: Message, you will be welcomed by an interface on which Conversion Tracking is disabled.

• Click the toggle button to enable the setting and configure it.

When Multiple Variations Exist

As shown below, on proceeding to this step from Step 3: Message, you will be welcomed by an interface on which:

• Conversion Tracking is disabled
• Variation Distribution meter indicates the share of the audience that will receive each Variation

Click the toggle button to enable the respective settings and configure them.

Now, let's get you acquainted with the workings of Step 4: Conversion Tracking:

Conversion Tracking

🚧

Must Read

We recommend that you gain a broad understanding of how Conversion Tracking works in your dashboard before proceeding. Doing so will lay a strong foundation for understanding whether or not you need to enable Conversion Tracking for the campaign and its impact on Revenue Tracking.

By default, Conversion Tracking is disabled for all In-app campaigns. As shown below, you can use the toggle switch to enable it.

Step 1: Select a Conversion Event

The term, Conversion Event is an alias that helps you identify the event you expect users to perform after receiving the In-app Message.

As shown above, you can choose from a list of all the Custom Events being tracked for your account to specify the campaign's conversion goal. For example, we have specified the campaign's conversion goal as the custom event, Checkout - Completed.

📘

The following options can be selected here:

• Custom (all the custom events being tracked for your account)

• System (Session Started, User Login)

👍

Pro Tip

We recommend that you map all the Custom Events, that record the occurrence of a monetary transaction in your app, as Revenue Events in your dashboard. This will help ensure that selecting the respective events as the Conversion Event of a campaign helps you track Conversions and Revenue for the campaign and its channel :)

Step 2: Add Attributes to the Conversion Event

Depending on the end goal of the campaign, you can choose to narrow down the scope of conversion to a specific action like Jimmy Choo Pumps Purchased, Episode 3 Streamed, Chapter 7 Started, MF Investment Done, Game Credits Purchased and so on.

This can be done by adding attribute filters to the selected Conversion Event. Here's how you can go about it:

Step 1: As shown above, click on the filter icon placed next to the drop down

• In doing so, you will be prompted by a pop-up allowing you to select an attribute and specify its value
• For example, in the above visual, we have filtered the event, Checkout Completed, by the attribute filter, Cart Value which is greater than 100 ((indicates the monetary value of the transaction, irrespective of the currency)
  • This implies: Only those users who make a purchase of more than 100 (as per the account's currency) will be counted towards the campaign's conversion metrics.

📘

The following options can be selected here:

• Custom (all the custom attributes attached to the custom event selected as the conversion event)

• Time (Event Time)

• Location (City, Country)

Step 2: As shown below, click Add Filter to add more attributes to the event

• You can club multiple event attributes by the AND/OR logic
• This way only those users who perform the Conversion Event in the context of All/Either attribute filters will be considered towards the Conversion numbers of the campaign

🚧

How It Works: Clubbing Event Attributes by AND/OR Logic

AND: Clubbing multiple event attribute filters by the AND logic helps you narrow down the scope of occurrence of the Conversion Event. This means that only those users will be counted towards the campaign's Conversions who perform the Conversion Event in the context of all the event attributes.

OR: Clubbing multiple event attribute filter by the OR logic helps you widen the scope of occurrence of the Conversion Event. This means that users who perform the Conversion Event in the context of any of the specified event attributes* will be counted towards the campaign's conversions.

Step 3: Set Conversion Deadline

The Conversion Deadline is a duration defined by you that tells us when to stop tracking conversions for a campaign.

• This means that once your campaign is delivered, we will track users who perform the Conversion Event in the context of its attribute filters (if any), only till the specified Conversion Deadline.

As shown above, by default, a Conversion Deadline of 7 days is set for all campaigns. You can choose to specify a custom duration in Hours or Days, as per the campaign's end goal.

🚧

Related Read

List of all the Conversion metrics and Performance Indicators tracked for In-app campaigns

Step 4: Enable Control Group (Optional)

A Control Group is a small portion of the target audience of a campaign that is randomly selected, representing the behavior and preferences of the entire segment, and does not receive the campaign.

An optional but recommended step, adding a Control Group to the target audience allows you to compare the campaign's performance against the organic behavior of Control Group users. This makes for the perfect benchmark to assess the true impact of the campaign on influencing user behavior.

🚧

Must Read

Why you should (almost) always use Control Group to measure the effectiveness of your campaign and how it works in your dashboard

On checking the Control Group checkbox, you are presented with another choice called 'Target Control Group', that lets you choose between two options.

• Set a new control group for this campaign
• Custom Control Group

Option 1: Set a new control group for this campaign: This will be a campaign level control group which means a control group that is created for a specific campaign only. The users in this control group are randomly added from the selected segment in 'Audience' tab. This control group is good if the aim is to measure impact for a specific campaign.

On clicking this option, the Variation Distribution slider is exposed that allows you to select percentage of users to be added in Control Group from target audience.

Option 2: Custom Control Group: This option is shown when at least one Custom Control Groups is created in your account. Click here for detailed read on creating custom control group.

Since this is a pre-created control group, overlapping users within this group and the target segment won't be receiving the campaigns.

Custom control groups are good for analyzing effectiveness of multiple campaigns. For example: Analyzing effectiveness of SMS and Email campaigns during Diwali sale.

Unlike Campaign level control group, the percentage of users to be part of control group cannot be controlled when Custom control group is selected.

🚧

Skip to: How to set up Send Winning Variation Automatically for testing In-app (triggered) campaigns

Variation Distribution (Multivariate Testing)

If you have created multiple versions of the In-app Notification at Step 3: Message, then you can choose to automate the testing process by enabling Send Winning Variation Automatically. Doing so will allow you to test all the _Variations(and Control Group if enabled) with a smaller test audience and we will automatically send the winning variant to the entire target audience. _(detailed read)*

However, you can opt to test the Variations and Control Group manually if you are unwilling to test the campaign with a minimum of test audience of 500 messages.

Here's how each setting works:

Send Winning Variation Automatically

🚧

Must Read

• Basics of setting up Send Winning Variation Automatically for a campaign

• How Send Winning Variation Automatically enables intuitive multivariate testing for your campaign

📘

Please Note

Given the highly targeted nature of In-app campaigns, they are treated as Triggered campaigns across your dashboard. These are ongoing cycles of communication that are sent to users only when they perform a certain action or Event. Thus, the most scientific way to test Variations of an In-app campaign is by ensuring that a significant number of messages are delivered before we draw a comparison.

Step 1: Specify Size of Test Audience

The Test Audience can be defined only in terms of the number of messages delivered. This means that Variation testing will continue until the specified number of messages have been successfully delivered.

As shown below, we have specified that a minimum of 1500 messages must be triggered to users to identify a winning version. This means that all the Variations ( & Control Group, if enabled) will be equally divided amongst the specified number.

Step 2: Select Win Criteria

The Win Criteria is a performance indicator that helps us determine a winning Variation according to the campaign's end goal. As shown above, it can be defined as any of the following:

• Impressions
• Clicks
• Conversions

Once we identify a winning Variation, it will be sent as the only campaign to all the subsequent users who perform the trigger event.

🚧

Quick Read: How automated variation testing works for triggered campaigns

Manual Distribution

If you are unwilling to test the In-app campaign with a minimum test audience of 500 messages, then you can choose to test the Variations manually.

As shown above, all the Variations created in Step 3: Message are equally divided amongst the entire target audience. Using the slider, you can choose to specify a custom share for each Variation and Control Group, if enabled.

🚧

Quick Read: How manual Variation Distribution works

Depending on your Variation testing settings, the campaign will be tested against the Control Group in either of the following ways:

Impact on Variation Slider if Control group is enabled

In case the Control Groups have been enabled the Variation Distribution slider behaves differently based on the type of control group selected:

If Campaign level control group is selected: In this case, the user will have the option of adding the control group by deciding the percentage or size of the control group on variation distribution slider.

If Custom Control Group is selected: You will not be able to manually select the size of the control group using the variation slider since the Custom Control Group is pre-created and overlapping users in the selected Custom Control Group and target segment, won't be receiving the campaign.

🚧

Keep in Mind

• In a particular campaign, Custom Control Group and campaign control group cannot be applied together.

• Universal control group can be added irrespective of Custom Control Group or Campaign Control Group is selected.

• In case multiple control groups are applied within same campaign (E.g: Universal Control Group + Custom Control Group or Universal Control Group + Campaign control): In this case, since the users in both the control group are mutually exclusive, the overall control group size will increase and the target audience size will decrease.

Step 5: Test Campaign

Test your In-app campaigns just as your users would experience them. Previously, you could only preview the UI on the dashboard, but now you can conduct full end-to-end tests on devices.

Steps to Test In-App Campaigns

• You can test the In-app from 2 places
  • The Message step of the campaign creation
  • The Test Campaign step of the campaign creation

• Create a test segment based on user IDs by clicking on the ➕ icon

• Trigger the test In-App by clicking on the Test Campaign button (Prerequisite Push permission should be granted and the user should be reachable for Push for test In-App to be rendered on the user’s device).

📘

Testing your Campaigns are optional

Although testing your campaign with an internal test is optional, WE do highly recommend it.

Behavior of Test In-App Notifications

• If the app is in the foreground you’ll get the Test In-App on the app.
• If the app is in the background or killed state, a push notification will be received. On clicking on it the app will be opened and the Test In-App will be shown.
• If there is already an In-App shown on screen it will be dismissed and the Test In-App will be shown to the user. On dismissing the Test In-App, previous In-App will be visible again.
• If there is already a Test In-App shown on screen, it will be dismissed and the new Test In-App will be shown to the user. On dismissing the Test In-App previous test In-App will not be visible again.
• The Push can fail in certain scenarios and there can be a delay as well so rendering can delay after clicking on the Send Test Button.

Step 6: Preview & Launch

Once you've set up the campaign it's time to start to engaging app uses! But before that, we recommend that you conduct a quick preview of the campaign's message and settings to ensure that it's in line with your end goal.

As shown above, the last step of campaign creation presents a snapshot of its:

• Target apps and segment (Step 1: Audience)
• Target screens, message frequency and trigger settings (Step 2: When)
• Message Variations and OS-wise preview (Step 3: Message)
• Conversion Tracking and multivariate test settings (Step 4: Conversion Tracking)

Edit Campaign Before Launch

You can always choose to edit a step by clicking on the Edit icon, placed next to each step's header. In doing so, you will be directed back to the step.

Simply make your edits, save them, toggle back to Step 6: Preview & Launch to continue your review, as shown above.

Saving Campaign as a Draft

If you're unsure or are awaiting approval of the campaign's contents, then you can simply go back to the central hub of In-app after saving your settings, as shown below. Doing so will automatically save the campaign as a Draft, allowing you to edit or launch it anytime you like.

Launching Scheduled Campaigns

If you have chosen to schedule/ start the campaign at a later date-time, then on launching it, its status will indicate Upcoming in In-app, List of Campaigns, as shown below.

What Happens After a Campaign is Launched?

Once launched, messages are sent to users included in the target audience as per the campaign's settings. Throughout it's run time, the campaign's status will indicate Running (in In-app, List of Campaigns) until it ends or is manually paused by you.

1. Analyzing Campaign's Performance

You can analyze each campaign's real-time impact on user engagement, conversions, and revenue by accessing its Overview section through the List of Campaigns of In-app, as shown below.

2. Modifying the Campaign

Further, you can always choose to Edit or Pause an Upcoming or Running) campaign if you feel the need to. (Step-by-step guide on modifying In-app campaigns)

3. Scheduling Campaign Reports

Once you have launched a campaign, you easily monitor its performance through scheduled reports, delivered straight to your (& your teammate's) inbox! This can be configured through the campaign's analysis section. Here's how you can go about it.

Further, you can also schedule Channel-wise reports to monitor the overall performance of In-app through the Settings section of your account. Here's how you can go about it.

We hope this has equipped you with a robust understanding of how you can:

• Contextually engage app users with visually stunning in-app messages.
• Track conversions.
• Automate multivariate testing.

Please feel free to drop in a few lines at [email protected] in case you have any related queries or feedback. We're always just an email away!
