Creating Push Campaigns

Step-by-step guide on how you can create Push Notifications in your dashboard

πŸ“˜

This guide only covers the creation of One-time, Triggered & Recurring Campaigns

Looking to automate Transactional Push Notifications? Let's get you started!

Engaging users with Push Notifications is an effective way to convey time-sensitive messages, grab their attention with offers, and drive app engagement. Your dashboard comes with a highly intuitive 6-step campaign creation interface that makes it easy to create and execute highly personalized campaigns in minutes!

🚧

Must Read

At WebEngage, we are obsessed with enabling consumer business, like yours, to create contextual experiences that facilitate retention-led growth. This is why user data (User Attributes), behavioral data (Events & Event Attributes) and Segments play an integral role in campaign creation. We recommend that you get yourself acquainted with the respective concepts before proceeding.

Here's a quick summary of the exciting possibilities offered by the campaign creation interface:

🚧

Please Note

Please ensure that you have integrated FCM (Firebase Cloud Messaging) and APNS (Apple Push Notification Services) with your account before proceeding as these platforms enable campaign delivery to all your Android and iOS users, respectively. Here's the integration guide.

Select Campaign Type

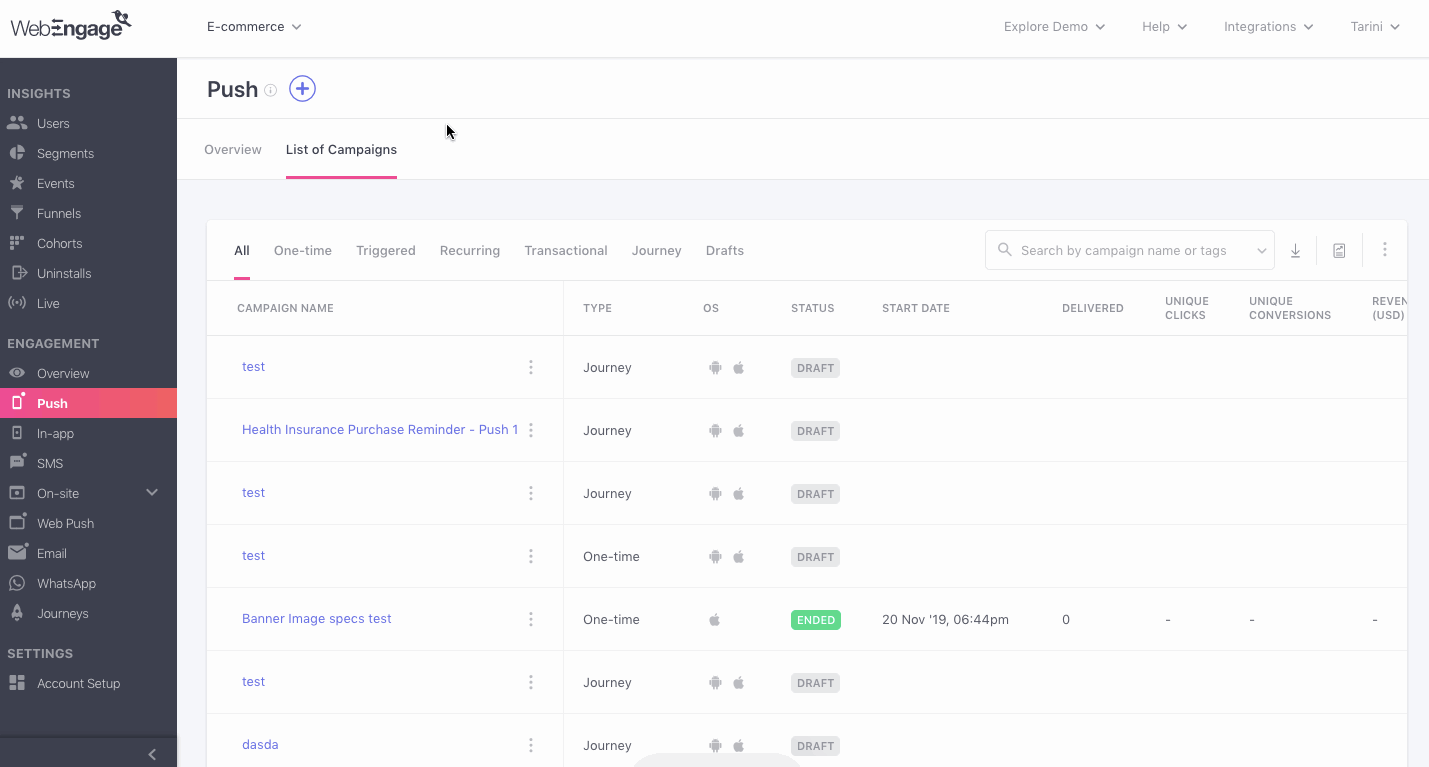

As shown below, the campaign creation interface can be accessed by clicking the Plus icon placed on the top left of the central hub of Push. In doing so, you will be prompted to select the type of campaign you'd like to create:

Click to enlarge

Let's walk you through each campaign type:

These are stand-alone messages that are sent to your users only once and generally comprise of time-bound offers, festive deals, product updates and so on. Such campaigns end as soon as they're delivered to the target audience.

  • When: Launch immediately or Schedule for later
  • How Often: Once only

🚧

Skip to Step 2, When: Campaign Schedule > Setting up One-time Campaign

These are ongoing cycles of communication that are sent to only those users of your target audience, who perform a particular event on your app/website.

  • When: Launch immediately or Schedule for later
  • How Often: Whenever the specified Event is performed by a user or a few Minutes/ Hours/ Days after the event occurs

🚧

Skip to Step 2, When: Campaign Schedule > Setting up Triggered Campaign

These are ongoing cycles of communication that are scheduled to be sent periodically to its target audience. Such campaigns help you automate communication for several recurring events in your user's lifecycle like subscription renewals, policy renewals, bill payments, recurring investments and so on.

Or you could leverage these campaigns to engage all new users who have recently signed up, users who performed a certain action on your app but left without transacting or proceeding to the next stage and so on.

  • When: Launch immediately or Schedule for later
  • How Often: Daily, Weekly or Monthly

🚧

Skip to Step 2, When: Campaign Schedule > Setting up Recurring Campaign

These are highly contextual messages that your users expect to receive while interacting with your brand through your app, website or offline. This could be acknowledging user interactions like, sign up (welcome newsletter), password reset, payment confirmation (invoice), order confirmation or conveying payment reminders, account statements and so on.

  • When: Launch immediately
  • How Often: Whenever a specific Event occurs in your backend

🚧

Continue here...

Step-by-step Guide to Creating Transactional Push Campaigns

Now, let's walk you through all the steps of campaign creation.

Step 1: Define the Audience

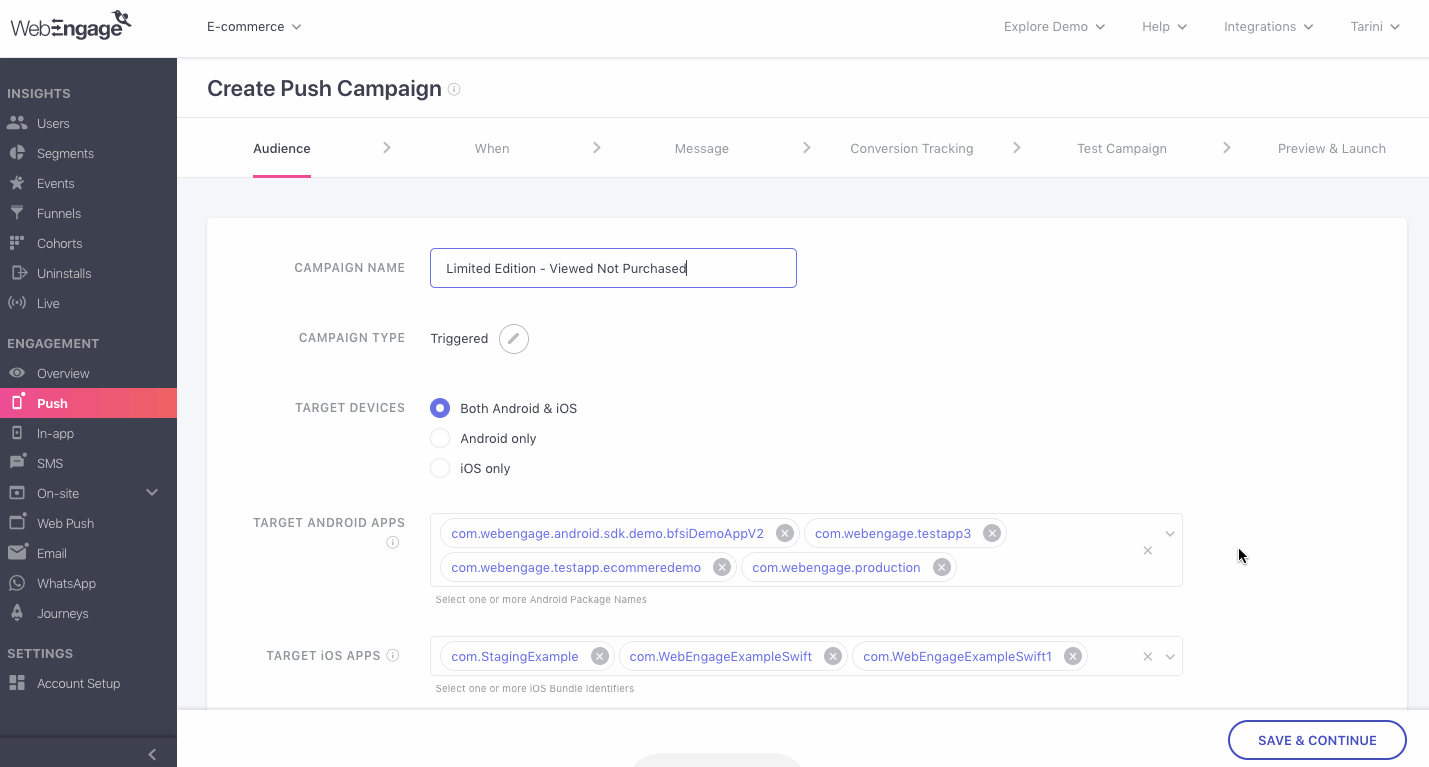

1. Name your Campaign

The first step is to give your campaign a unique name that helps you identify its purpose.

Click to enlarge

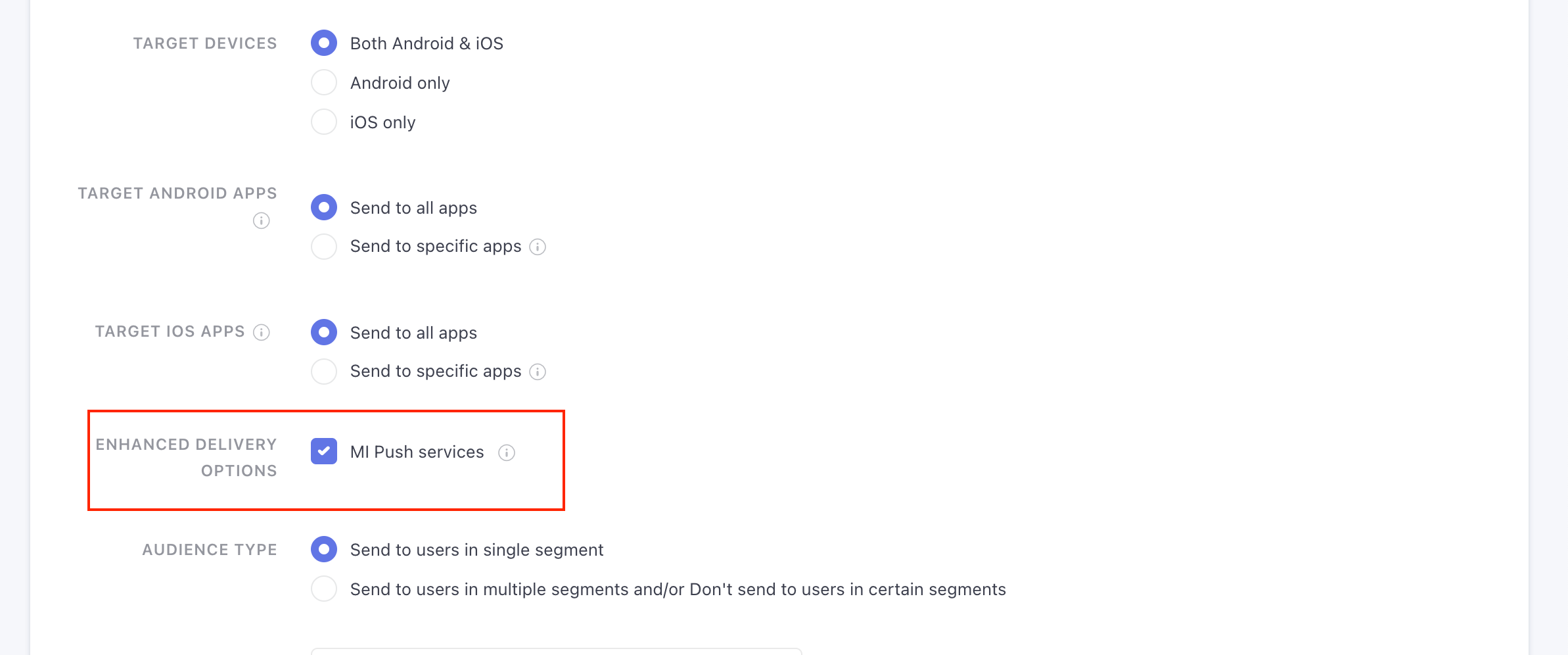

2. Select Target Devices

As shown above, you can choose to create campaigns exclusively for your Android or iOS users by specifying a Target Device. The following options can be selected here:

  • Both Android & iOS
  • Android only
  • iOS only

3. Select Target Apps

(Only if you have integrated multiple Android/ iOS apps while configuring Push & would like to selectively target a few of these through the campaign)

3A. Specify Target Android Apps

As shown below, if you have added multiple app credentials while configuring Push for Android, then by default, all the apps will be targeted. You can alter this by removing Android Package Names to target specific apps with the message.

Click to enlarge

This field is hidden if you have selected iOS only under Target Devices. For example, in the above visual, we have selected Android Only as the Target Device, and have chosen to engage the users of only one app.

3B. Specify Target iOS Apps

As shown below, if you have added multiple app credentials while configuring Push for iOS, then by default all the apps will be selected here as target apps. You can choose to remove the respective iOS Bundle Identifiers to target select apps with the message.

Click to enlarge

This field is hidden if you have selected Android only under Target Devices. For example, in the above visual, we have selected Both Android & iOS as the Target Devices. Hence, we'll be able to engage users across all the Android & iOS apps integrated with the WebEngage account.

4. Select Audience Type

One of the key differentiators of successful campaigns is that they're tailored to the behavior and preferences of a specific group of users. Thus, by selecting an Audience Type, you can choose to target a specific segment of users or combine several segments to define your Push campaign's audience.

As shown below:

Click to enlarge

  • Select Send to users in single segment to target all users who are included within a particular segment (How to set it up)

  • Select Send to users in multiple segments and/or don't send to users in certain segments to narrow down the audience to a very specific user persona, defined by including and excluding several segments from the target audience (How to set up the conditions - Send To & Don't Send To)

Here's how you can set up each Audience Type:

5. Select Target Segment(s)

Here's how you can set up each Audience Type:

5A. Select a Segment (Send To)

(If Send to users in single segment is selected as Audience Type)

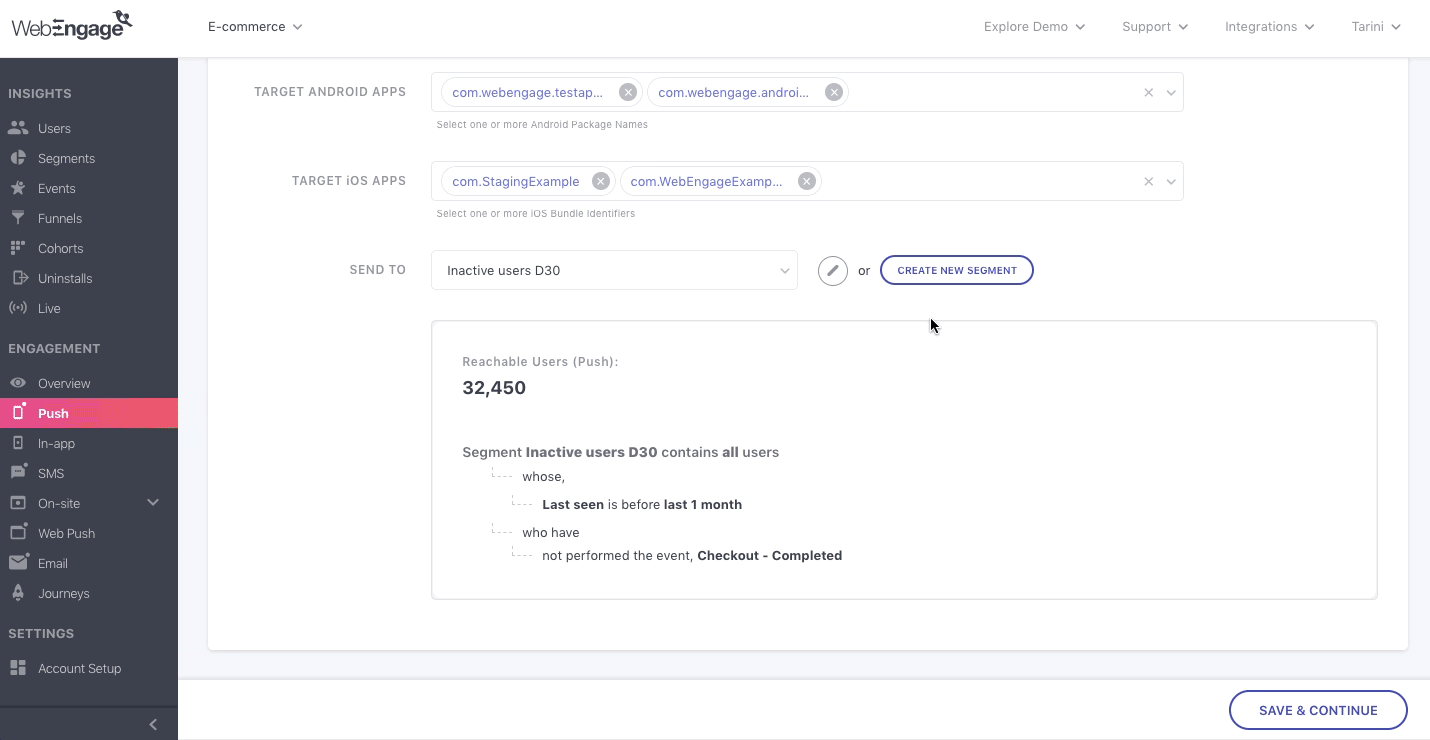

As shown below, click the dropdown nested beside Send To, to specify the target segment.

Click to enlarge

Let's quickly walk you through Segment Preview:

Reachable Users: Indicates the number of users, from the selected segment, that can be engaged through Push as a channel, at present.

  • For example, your target segment could include 10,000 users, but only 7,000 of those users could be reachable through Push at present. This could happen if:
    • A user has disabled Push on their registered device.
    • A user has uninstalled your app.
    • A user is not reachable on the Android/iOS devices selected under Target Device.
    • A user is not reachable on the Android/iOS apps selected by you under Target Android Apps and Target iOS Apps, respectively.

Rules of Segmentation: You can choose to segment your entire user base by 3 broad parameters - User (attributes), Behavior and Technology. Thus, Segment Preview presents a snapshot of the parameters based on which users have been grouped together.

🚧

Skip To:

How to Edit a Segment

How to Create a New Segment

How to Create a Disposable Segment

Step 2: When

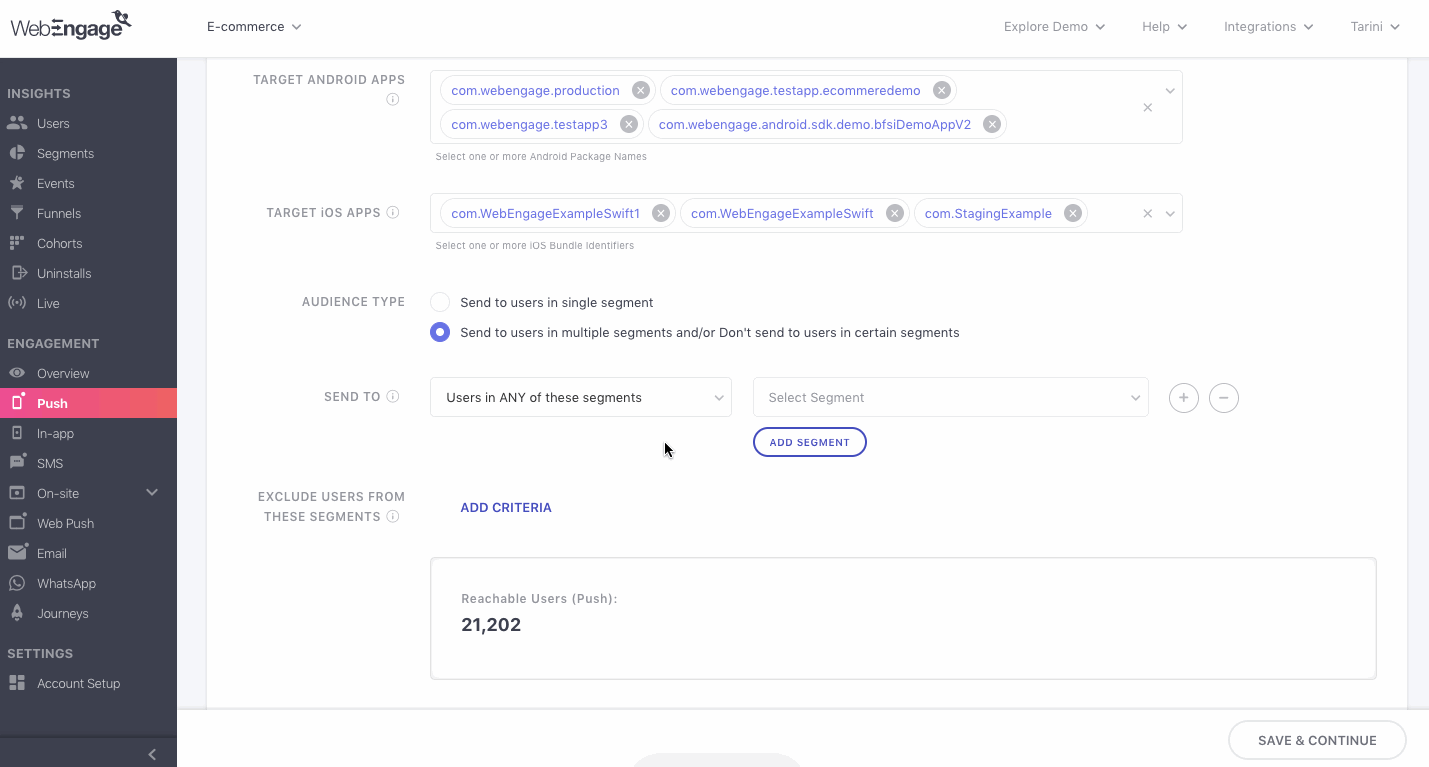

5B. Combine Segments (Send To)

(If Send to users in multiple segments and/or don't send to users in certain segments is selected as Audience Type)

Using multiple segments to define the target audience is an excellent way to target users that have similar preferences, belong to the same location or have performed certain actions on your app/website - without creating a new segment.

Here's how you can go about it:

Click to enlarge

Step 1: Select a Condition

  • Select Users in ANY of these segments to send the campaign to all the users included within each segment.

  • *Select Users in ALL of these segments to send the campaign only those users who are shared by all the segments.

Step 2: Select a Segment

Step 3: Click Add Segment to select another one

For example, in the visual above, we have selected the condition, Users in ALL of these segments to combine 2 segments - Inactive Users and Cart Abandon(ers).

  • On selecting the second segment, the Reachable Users decrease to 604 from 3,456.
  • This indicates that the campaign will be sent to only 604 users who are common amongst both the selected segments.

🚧

Skip to:

How to Edit a Segment

How to Create a New Segment

How to Create a Disposable Segment

Step 2: When

5C. Exclude Segments (Don't Send To)

(If Send to users in multiple segments and/or don't send to users in certain segments is selected as Audience Type)

You can choose to exclude a segment or multiple segments from the target audience by configuring the field, Don't Send To. This is a great way to selectively engage users that match a specific persona. Here's how you can go about it:

Step 1: Select a Condition

  • Select Users in ANY of these segments to prevent users in each segment from receiving the campaign.

  • Select Users in ALL of these segments to prevent only those users from receiving the campaign that are common between all the segments.

Step 2: Select a Segment

Step 3: Click Add Segment to select another one.

🚧

When Segment Isn't Specified Under the field, 'Send To'

By default, a campaign is set to be delivered to All Users. Thus, if no segment is selected under Send To AND segments are specified under Don't Send To, then the campaign will be send to all the users who are reachable on Push AND are not included within the specified segments.

Edit Segment

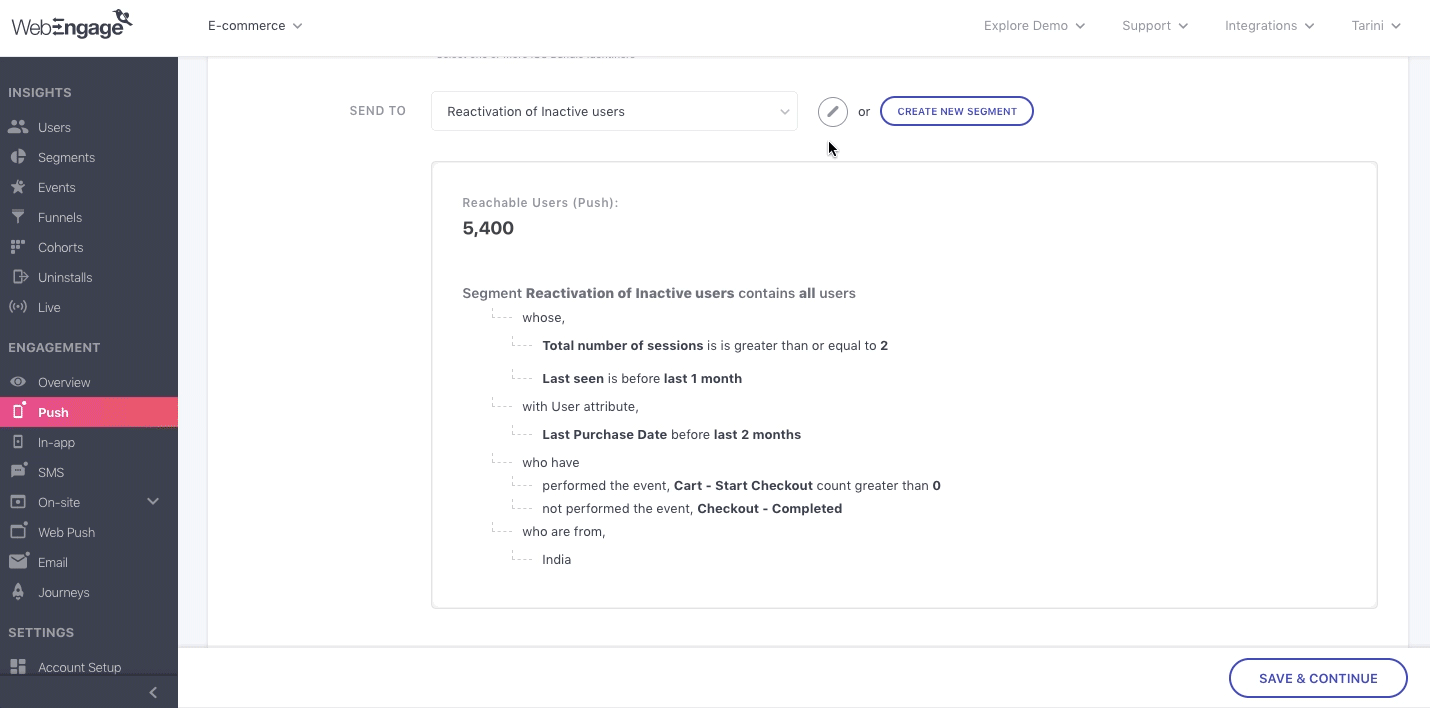

Click on the Edit icon, placed next to the dropdown, Send To, to edit the selected Segment. In doing so, you will be prompted by a pop-up, pre-populated with the existing rules of segmentation, as shown below.

Click to enlarge

Simply make your edits and click Save to proceed. In doing so, you will able to preview the number of reachable users as per your edits.

  • For example, in the above visual we can see that the number of reachable users increased from 5,400 to 15,600 as we added more locations under the field, Geo Filtering.

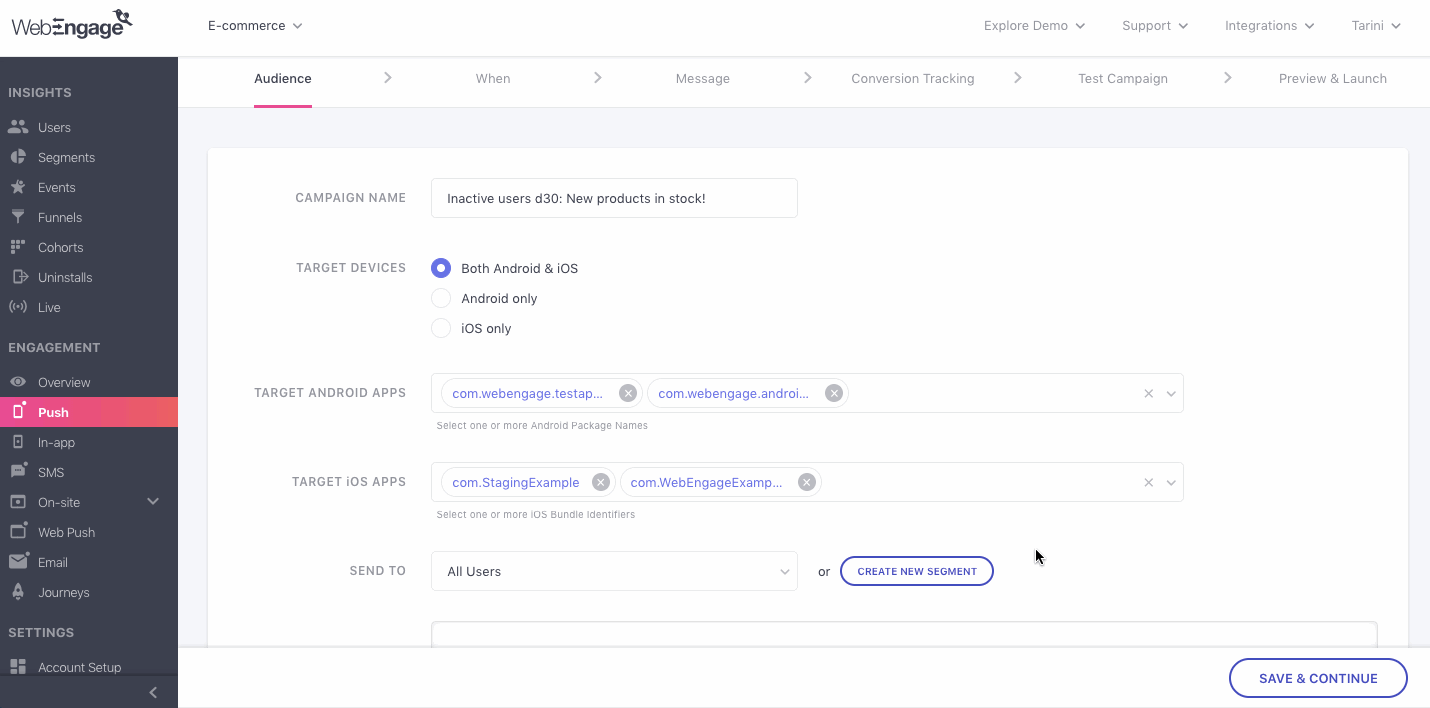

Create a New Segment

You can choose to create a new Segment of users from the campaign creation interface by clicking on the Create Segment button. In doing so, you will be prompted by a pop-up, allowing you to build a new segment, as shown below.

Click to enlarge

Once created, you will be able to access the Segment through the List of Segments in your dashboard.

Creating a New, Single-use Segment

You can also choose to create disposable segments or segment users specifically for the campaign and avoid adding it to the List of Segments in your dashboard.

Click to enlarge

As shown above, this can be achieved by leaving the field, Name blank while creating the segment. In doing so, it will become an Ad hoc segment in your dashboard which will be available only for sending the campaign you're currently creating.

🚧

Related Read: Rules of Segmentation

Please refer to Creating Segments for step-by-step guidance on how you can segment your users by their attributes, behavior (events), and technological preferences.

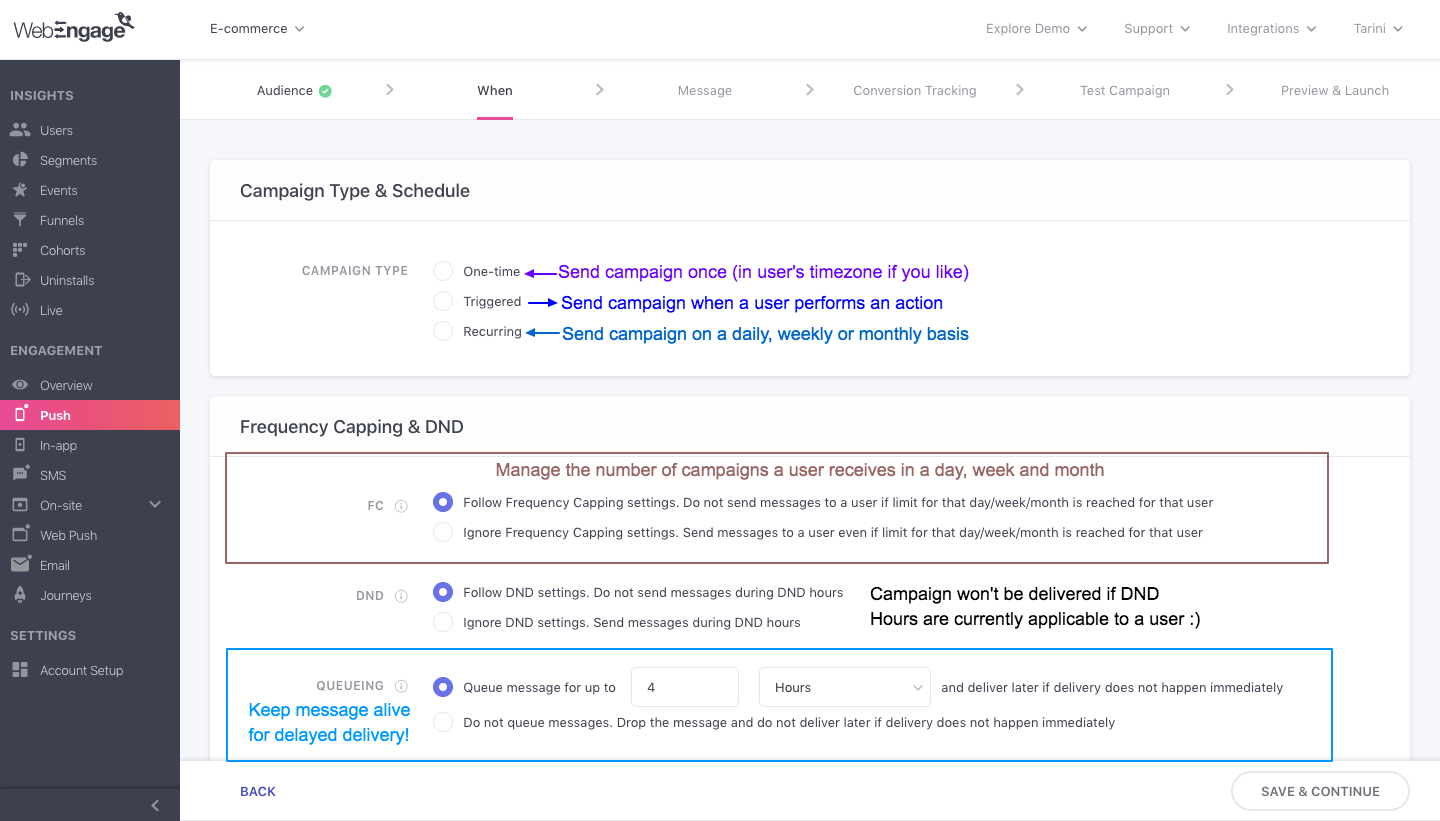

Step 2: Specify When to Send

Click to enlarge

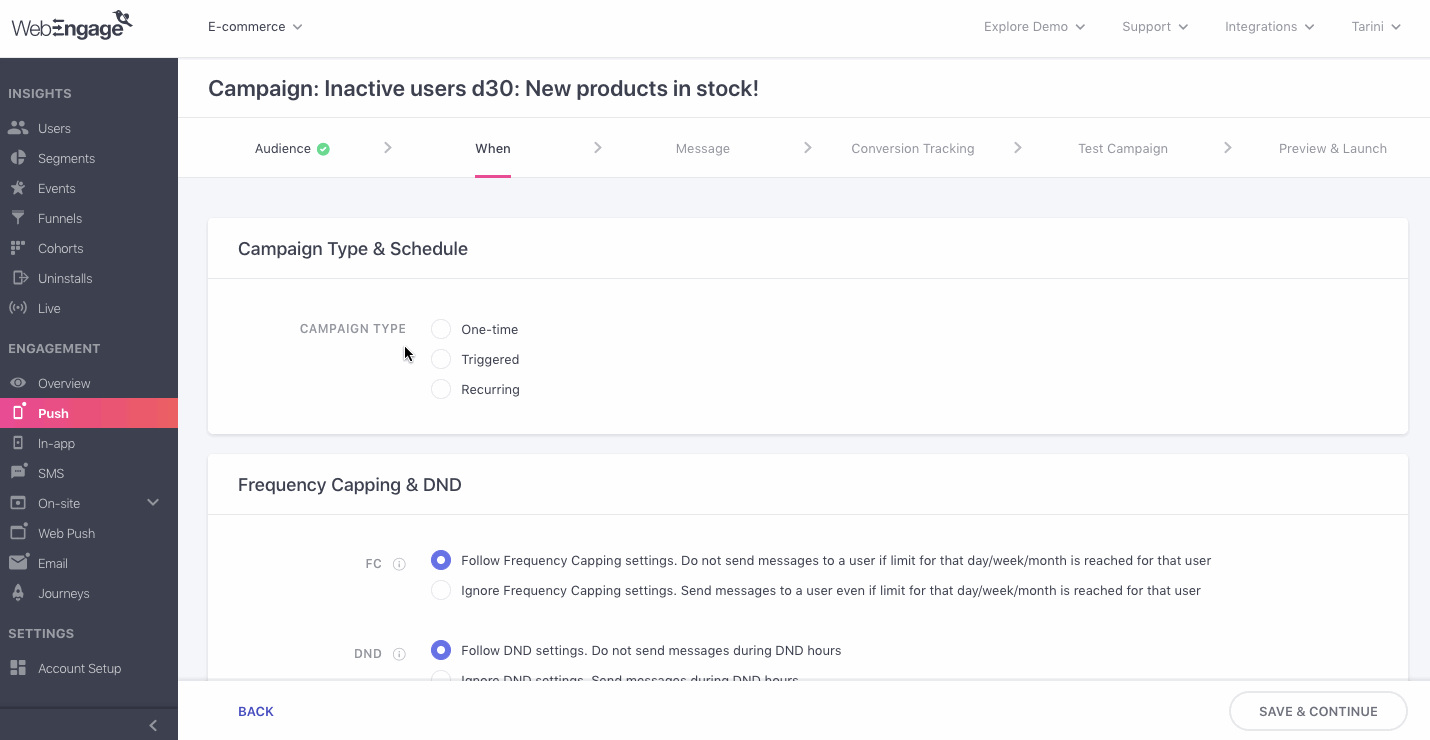

As highlighted above, the second step of campaign creation allows you to specify when and how often you'd like the target audience to receive the Push Notification and manage the role your campaign plays in your overall engagement strategy. Hence, When has been divided into two sections:

  • Campaign Schedule
  • Frequency Capping & DND

Let's get you acquainted with the workings of each:

Campaign Schedule

Click to enlarge

Here you can specify when and how often the target audience should receive the campaign. This can be determined by configuring the Campaign Type selected when you initiated creation. Here's how you can go about it:

🚧

Navigate to:

One-time Campaign

Triggered Campaign

Recurring Campaign

Setting up One-time Campaign

Step 1: As shown below, select One-time as the Campaign Type

Click to enlarge

Step 2: Specify the Delivery Time

As shown above:

  • Select Now to send the campaign immediately
  • Select Later to schedule the campaign: You can choose to schedule a one-time Push campaign for delivery in your user's timezone! (How it works)

🚧

Skip to the second section, Frequency Capping & DND to complete Step 2: When, of the campaign creation process.

Setting up Triggered Campaign

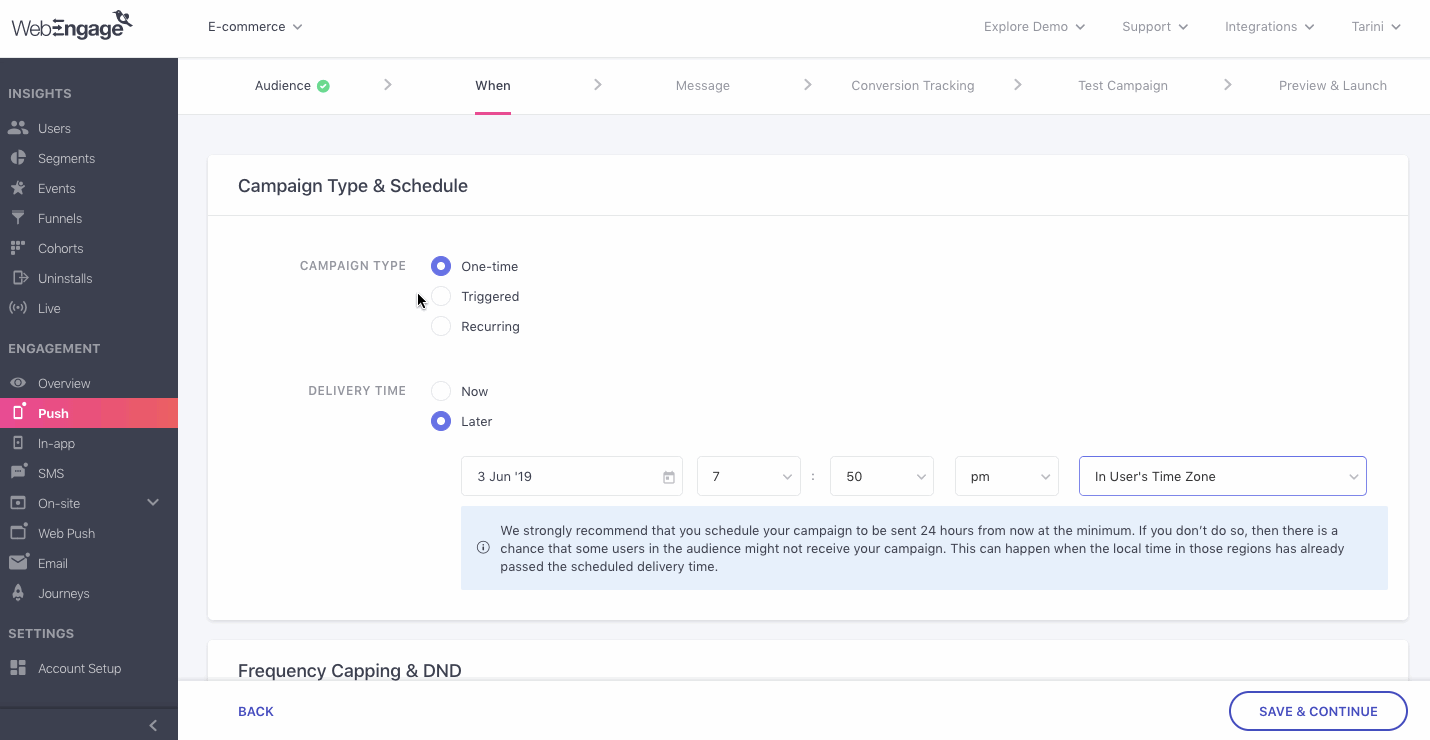

Step 1: As shown below, select Triggered as the Campaign Type

Click to enlarge

Step 2: As shown above, select the Event upon the occurrence of which the campaign will be triggered or sent to the user

  • For example, in the above visual we have selected the custom event Product - Added to Cart as the trigger event

πŸ“˜

The following options can be selected here:

  • Custom (all the custom events being tracked for your account)

  • System (all the campaign events pre-defined by us for tracking user-channel interactions like app installed, push delivered, push opened and so on.)

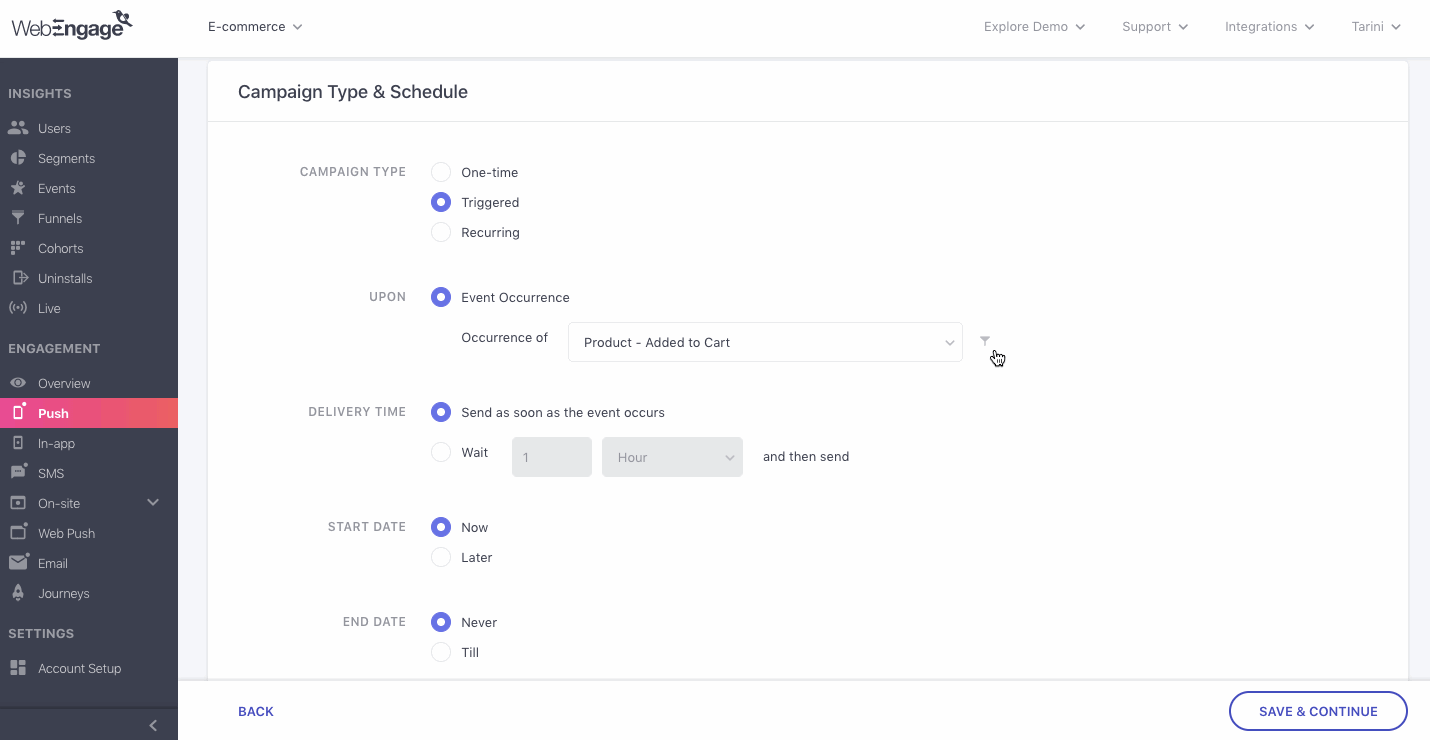

Step 3 (Optional): Add Attribute Filters to the Event by clicking on the filter icon

  • As shown below, we have filtered the event, Product-Added, by adding its custom attribute, Cart-Value

Click to enlarge

πŸ“˜

The following options can be selected here:

  • Custom (all the custom attributes attached to the custom event selected as the trigger event)

  • Time (Event Time)

  • Location (City, Country)

  • Technology (Device Manufacturer, Device Model, Carrier, App Version, App ID, SDK Version)

  • Engagement (Campaign ID, Journey ID - can be found under the campaign's overview & journey's overview)

    • These attributes are applicable only to campaign events like Email Rejected, Push, Dismissed and so on.
  • Others (Session Count, Language)

  • Further, you can choose to club multiple event attributes by the AND/OR logic to define the scope of occurrence of the event.

  • Doing so implies that if users included within the target segment don't perform the specified Event, in the context of the added attribute filter(s), then they will not receive the campaign.

🚧

How It Works: Clubbing Event Attributes by AND/OR Logic

AND: Implies that users will have to perform the Event in the context of all the event attributes to receive the campaign. (Helps you narrow down the target audiece)

OR: Implies that users will receive the campaign if they perform the Event in the context of any one of the event attribute.* (Helps you widen the target audience)

For example, in the visual below, we have filtered the custom event Product - Added to Cart by its attributes:

  • Cart - Value is greater than 500 (monetary value in account's currency)
  • AND Country is one of Saudi Arabia, Iran
    This implies: Campaign will be triggered to only those users who have added a product to their cart with an existing cart value that's greater than 500 and are located in Saudi Arabia or Iran.

Click to enlarge

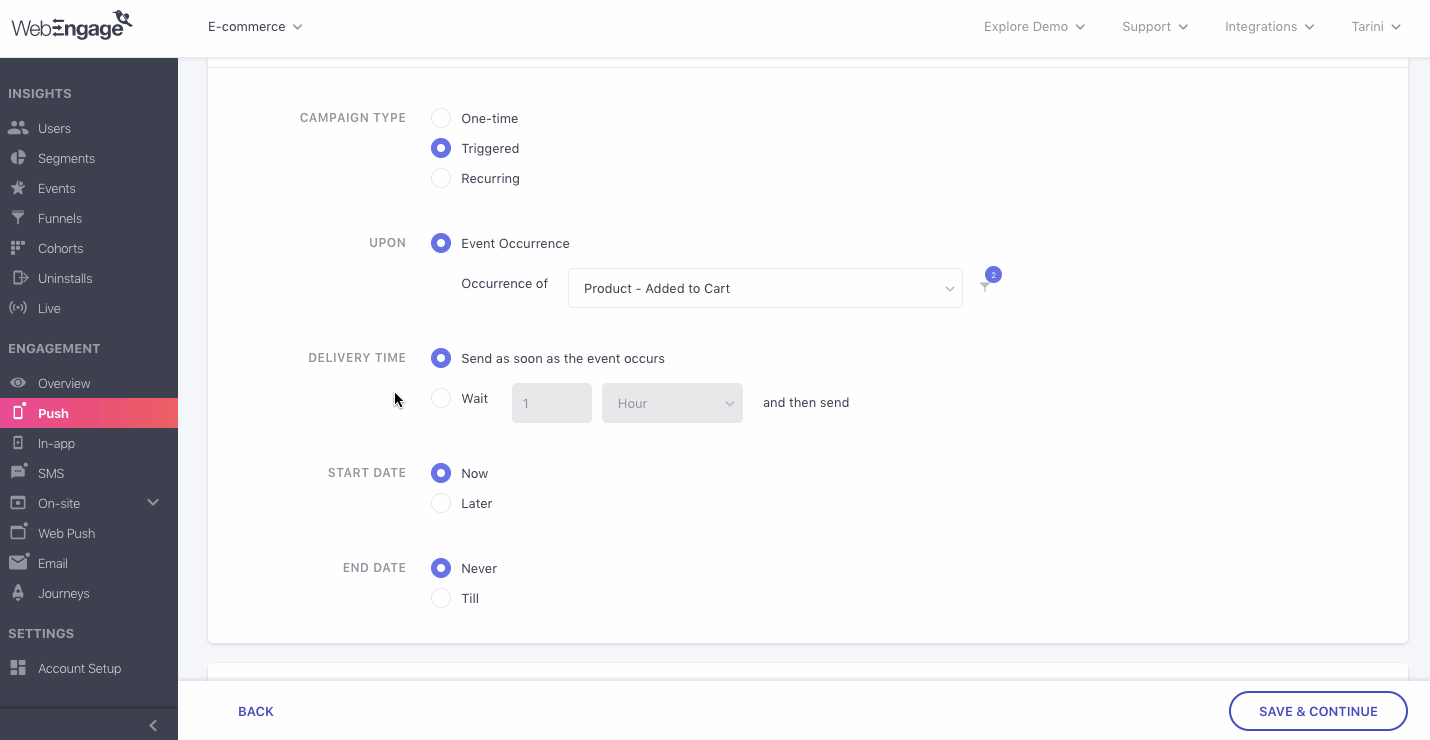

Step 4: Specify the Delivery Time of the triggered campaign

Click to enlarge

As shown in the above:

  • Select Send as soon as the event occurs to delivery the campaign immediately
  • Select Wait for (duration) and then send to deliver the campaign after sometime
  • You can set up a wait time in Minutes, Hours or Weeks, after which, the campaign will be sent to the respective users

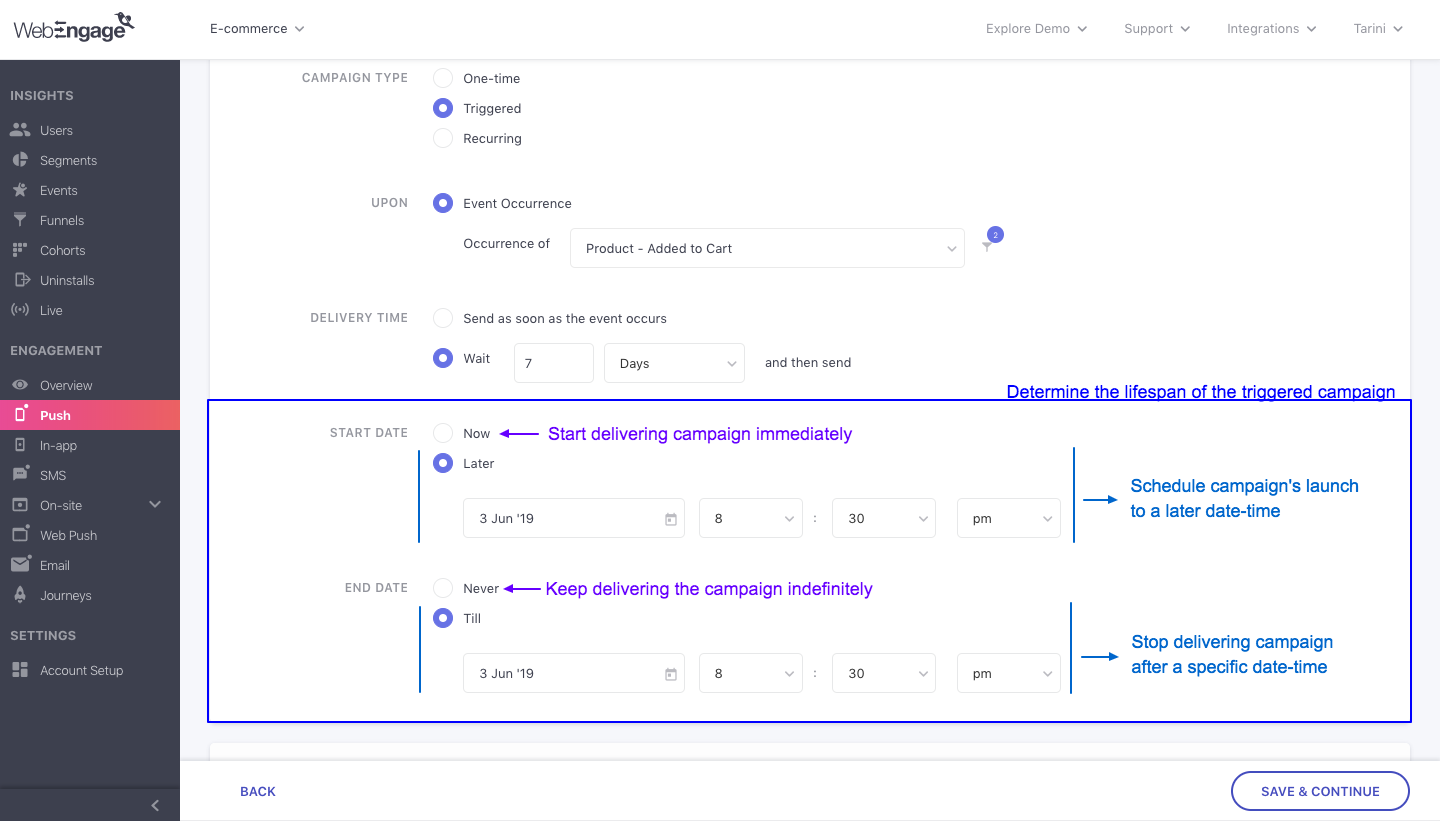

Step 5: Specify the Start Date or the date-time on which the triggered campaign should start getting delivered to the target audience

As highlighted in the visual below:

  • Select Now to send the campaign immediately
  • Select Later to schedule the campaign

Click to enlarge

Step 6: Specify the End Date or the date-time on which the triggered campaign should cease getting delivered to the target audience

As highlighted in the visual above:

  • Select Never to run the campaign indefinitely (you can always choose to Pause a campaign manually through its Campaign Overview)
  • Select Later to stop the campaign at a specific date-time in the near future

🚧

Skip to the second section, Frequency Capping & DND to complete Step 2: When, of the campaign creation process.

Setting up Recurring Campaign

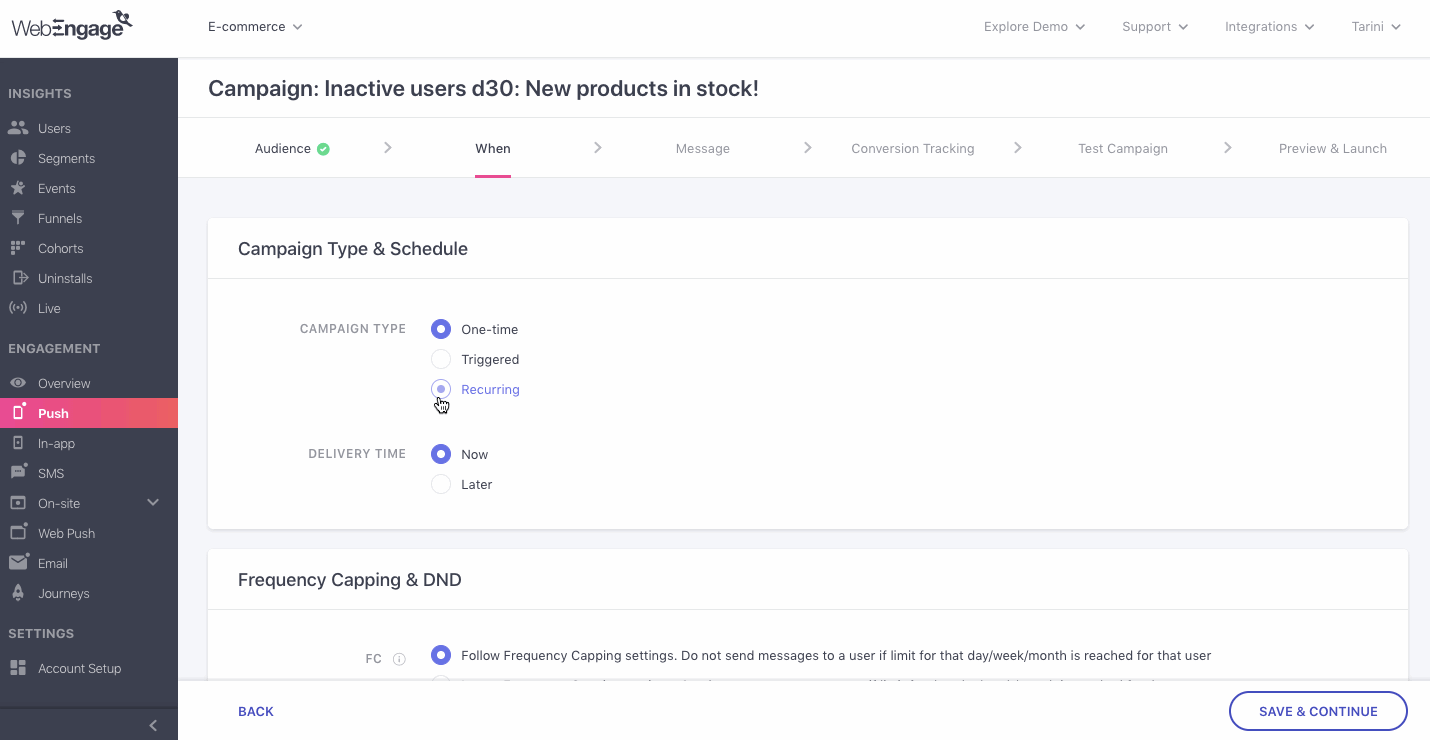

Step 1: As shown below, select Recurring as the Campaign Type

Click to enlarge

Step 2: Specify the Delivery Time or the frequency and date-time of campaign delivery.

As shown in the visual above, the frequency of a recurring campaign can be set as:

  • Daily, at a specific Time
  • Weekly, at a specific Day and Time
  • Monthly, on a specific Day of the Month and Time

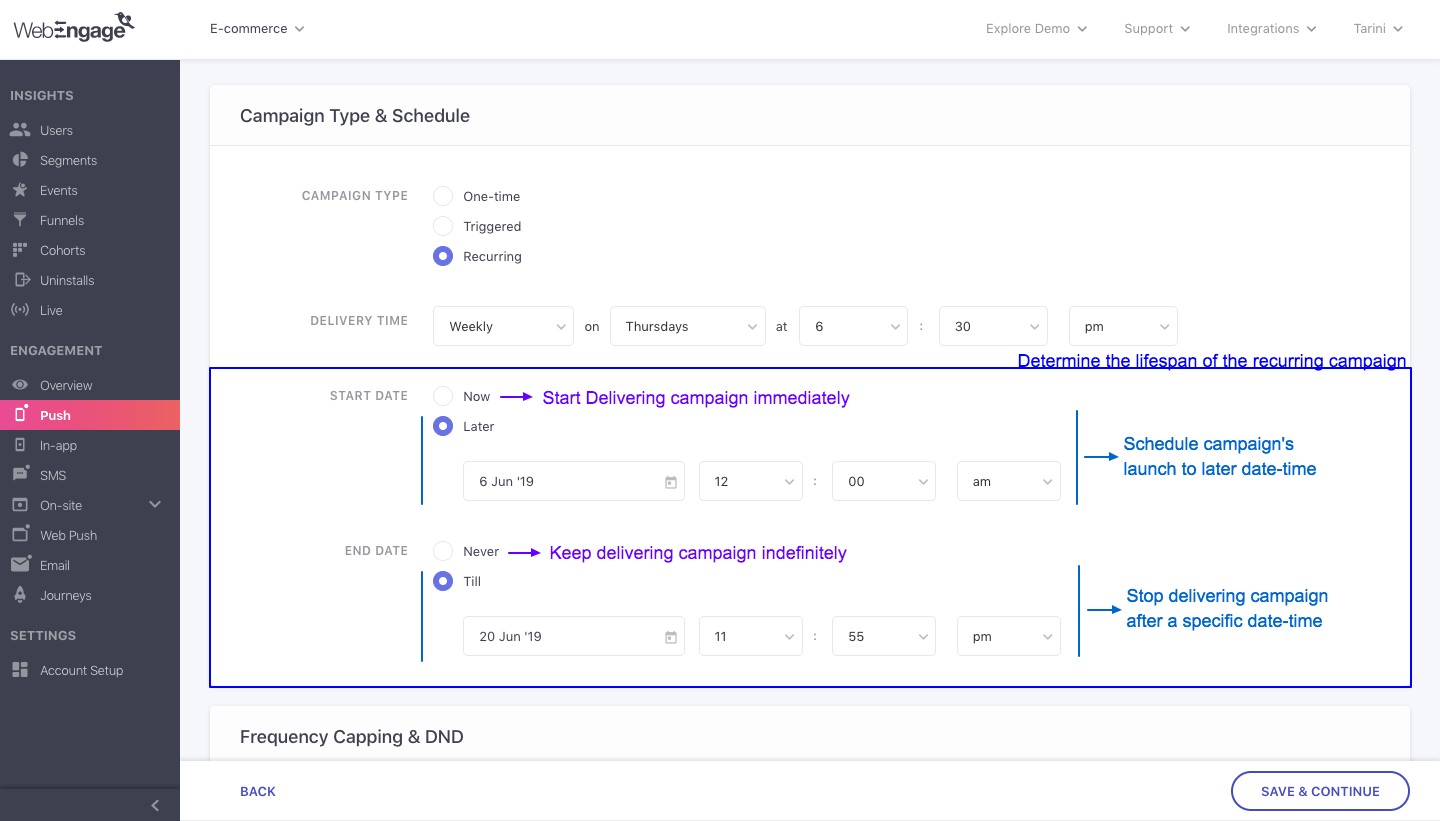

Step 3: Specify the Start Date or the date-time on which the recurring campaign should start getting delivered to the target audience.

As highlighted in the visual below:

  • Select Now to send the campaign immediately
  • Select Later to schedule the campaign

Click to enlarge

Step 4: Specify the End Date or the date-time on which the campaign should cease getting delivered to the target audience

As highlighted in the visual above:

  • Select Never to run the campaign indefinitely (you can always choose to Pause a campaign manually through its Campaign Overview)
  • Select Later to stop the campaign at a specific date-time in the near future

Frequency Capping & DND

Click to enlarge

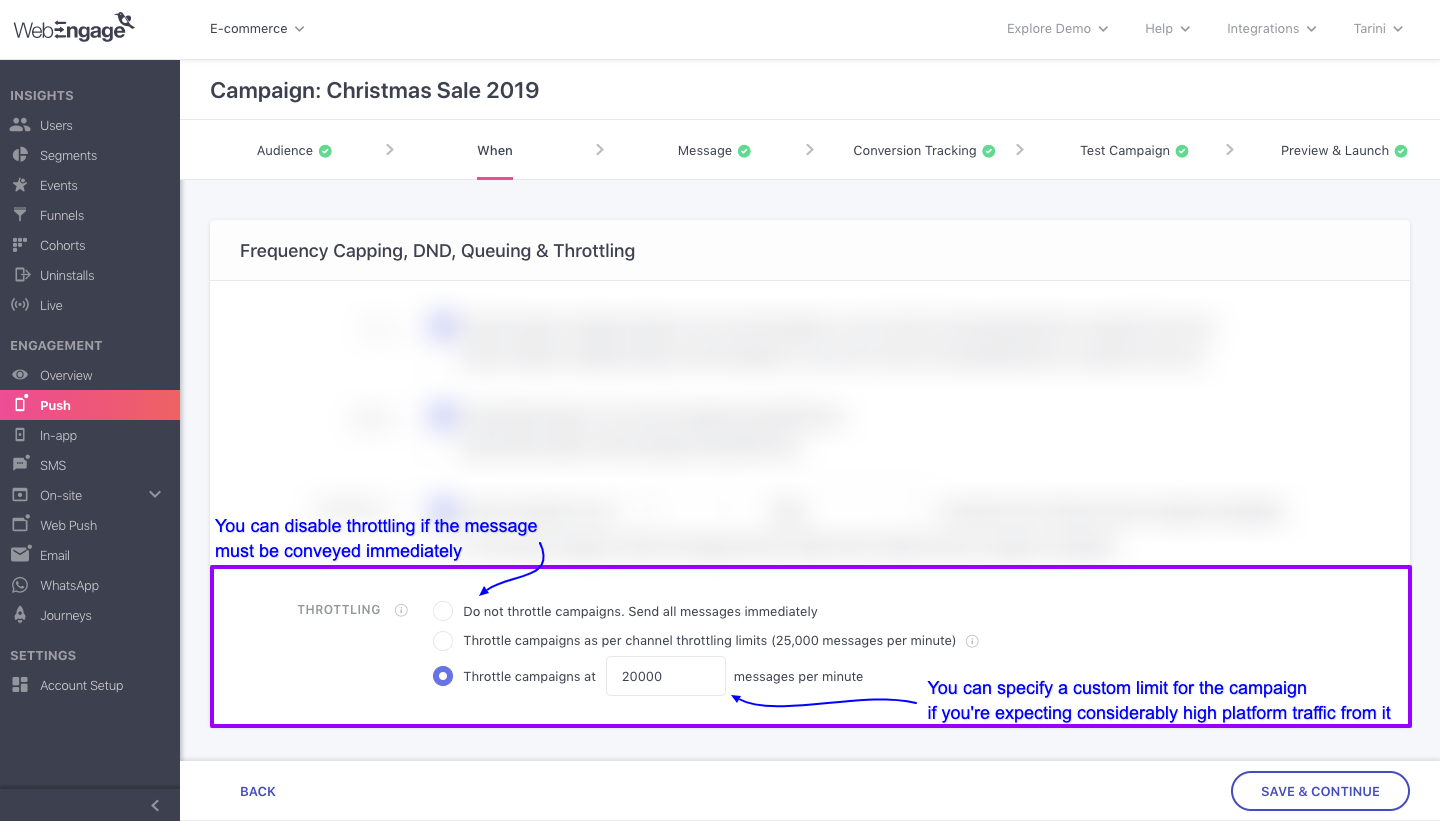

Here you can leverage the features of Frequency Capping (FC), DND Hours, Queueing and Throttling to determine how a user perceives your Push campaign in the context of your entire engagement experience.

Context: Campaigns don't exist in isolation. Most marketing campaigns are designed for a specific audience, motivating them to perform a particular action. And more often than not, users receive multiple campaigns through various channels, nudging them towards a similar goal.

Thus, these features allow you to manage the frequency and timing of campaign delivery for each user. Let's get you acquainted with the workings of each:

FC

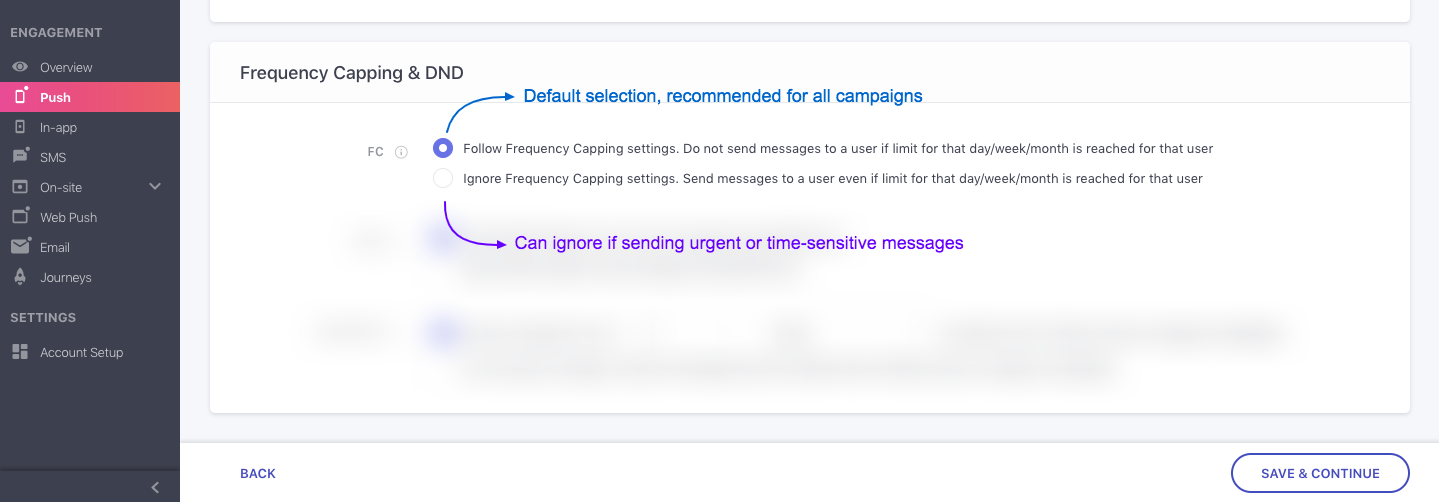

Using Frequency Capping (FC), you can control the number of campaigns a user receives within a Day, Week, Month and maintain a consistent gap between consecutive messages (sent through multiple channels or the same channel).

Click to enlarge

As highlighted above:

  • Select Follow... to send the campaign as per your account's frequency capping and time gap settings

    • This means that if the upper limit on the number of messages a user can receive within a day, week or month is exhausted, then this campaign will get queued for delayed delivery (detailed read on how this works)
  • Select Ignore... to ensure campaign delivery even if the frequency cap for the day/week/month has been met for a user (impact of disabling FC for a campaign)

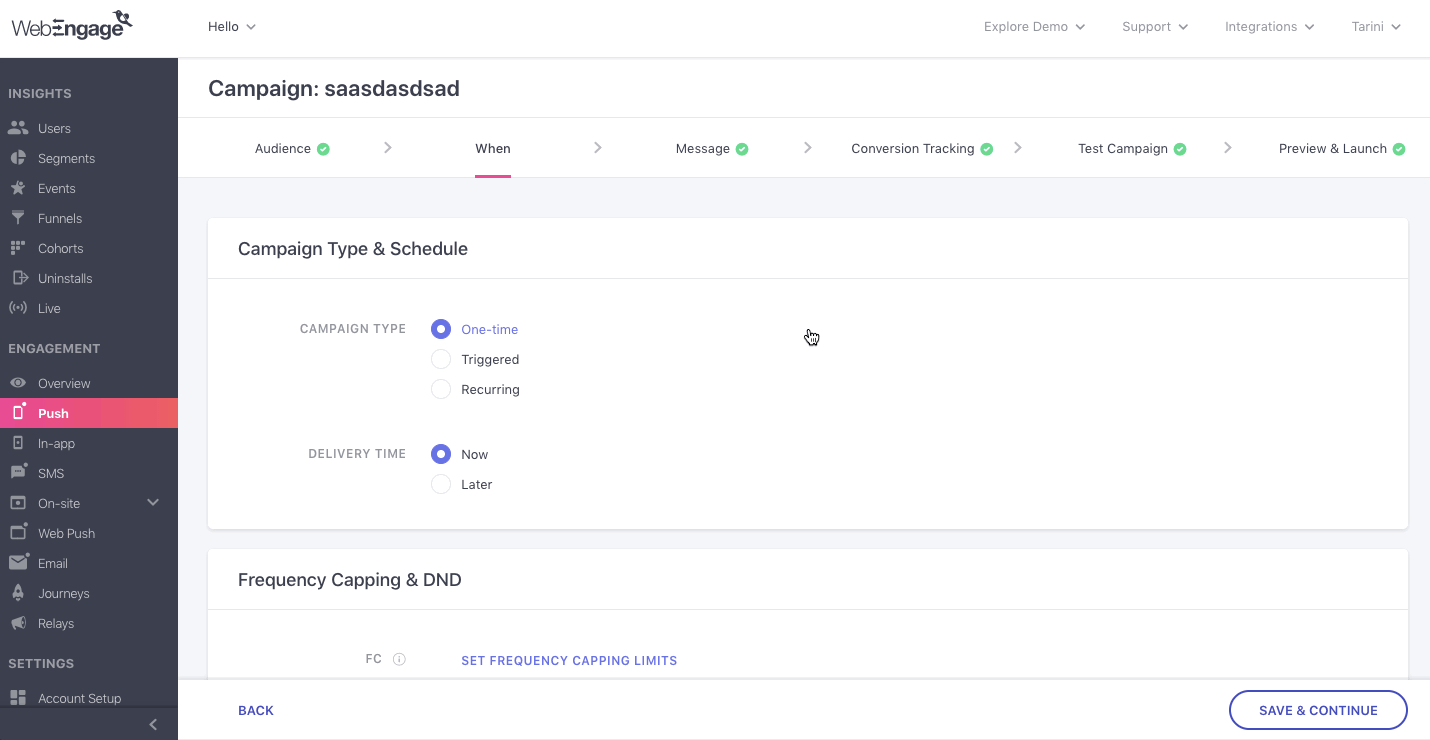

Set Frequency Capping Limits

Click to enlarge

If you have not set up Frequency Capping yet, then you can choose to configure it by clicking the Set Frequency Capping Limits button. As shown above, in doing so you will be directed to your account's settings, in a new tab. (How to configure FC & Time Gap)

  • Once set, you will be able to send all your campaigns with FC enabled, including the existing one.
  • Pro Tip: Toggle back to the campaign creation tab and refresh to enable FC.

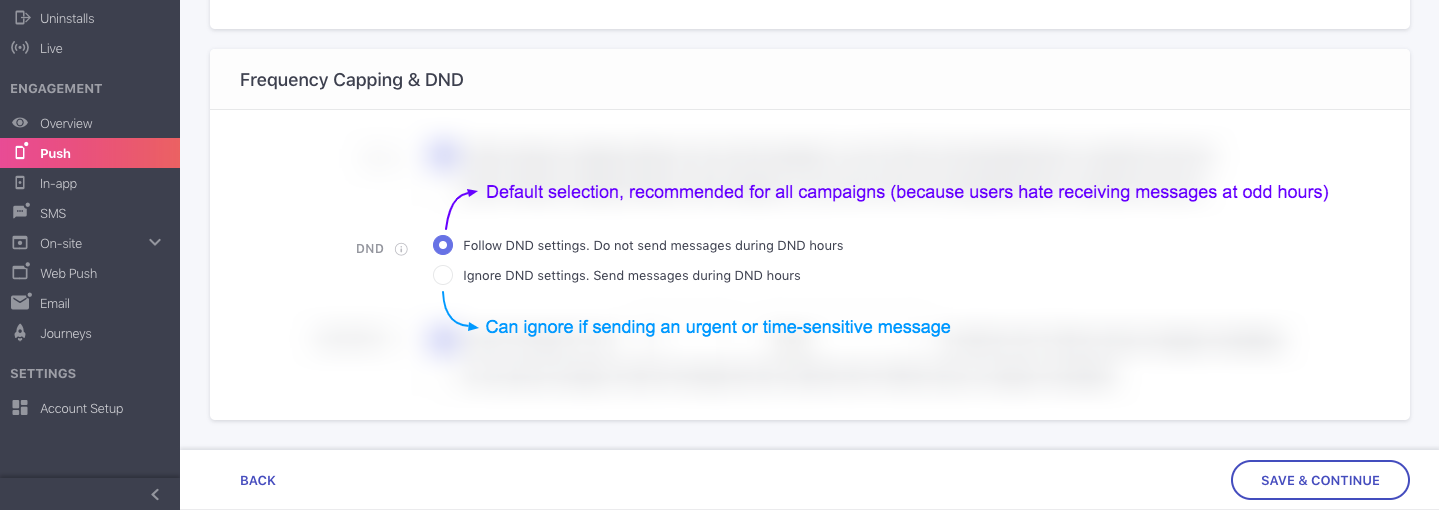

DND

Using the DND Settings of your account, you can prevent users from receiving campaigns during specific periods such as when they may be asleep, and so on. The best part - DND hours are determined individually for each user. This means that the duration specified by you will be applied to all your users only in the context of their time zone!

Click to enlarge

As highlighted above:

  • Select Follow... to ensure that users aren't disturbed by the Push Notifications at the hours specified by you (as per their timezone)
  • Select Ignore... to ensure campaign delivery even if DND hours are applicable to a few users (Disabling DND for a campaign)

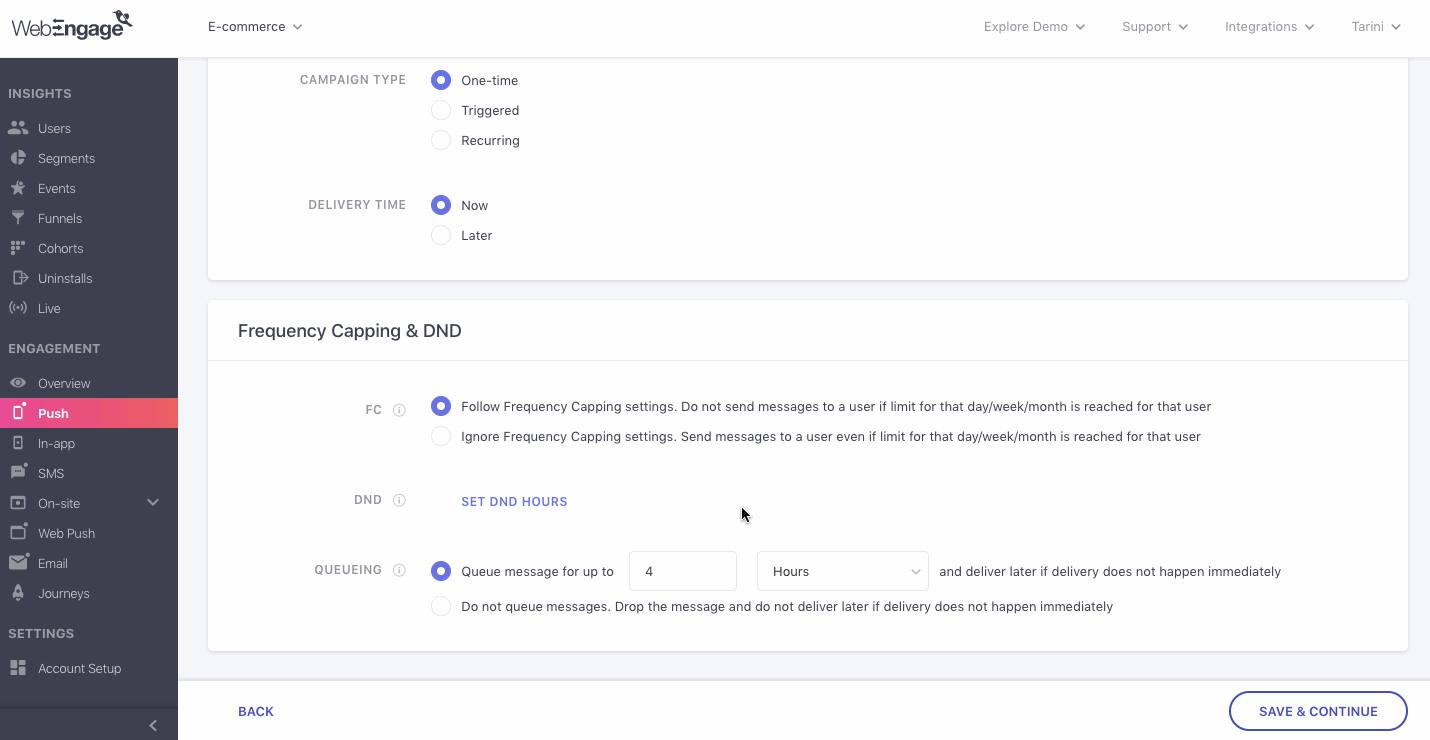

Set DND Hours

Click to enlarge

If you haven't set up DND Hours yet, then you can choose to configure it by clicking the Set DND Hours button. As shown above, in doing so you will be directed to your account's settings, in a new tab. (How to configure DND Hours)

  • Once set, you will be able to send all your campaigns with DND hours enabled, including the existing one.
  • Pro Tip: Toggle back to the campaign creation tab and refresh to enable DND.

Queueing

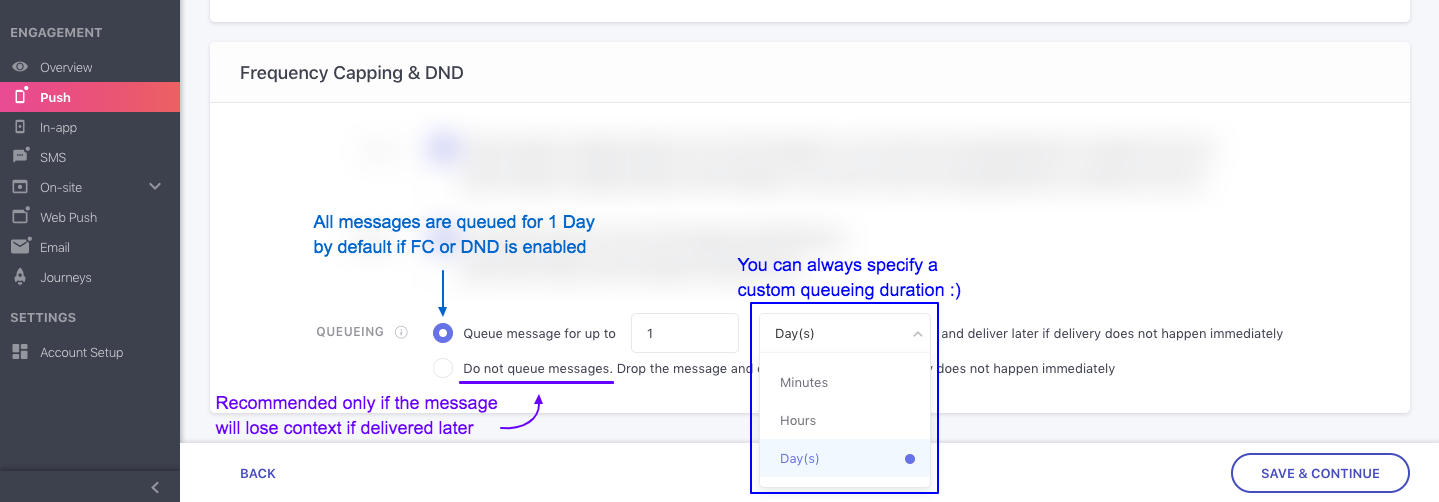

If you choose to send a campaign with FC or DND enabled, then Queueing is automatically enabled. It's a feature that allows delayed delivery of the message to a user, in cases where immediate delivery is not possible due to your FC or DND settings.

Click to enlarge

As highlighted above:

  • Select Queue message for up to..., to enable the feature and specify a custom queueing duration for the campaign in Minutes, Hours or Days.

    • Doing so will ensure that we hold on to the campaign for the specified duration and send it only when a combination of your FC and DND settings allow us to. (How delivery time is determined for queued messages)
    • Impact on campaign delivery to Android app users: if FCM is unable to deliver the campaign immediately to a user due to a technical error or if they’re out of network coverage area, then their systems too will continue to attempt message delivery until the specified queueing duration or time_to_live (detailed read on TTL in FCM)
  • Select Do not Queue messages... to drop the message if we're unable to deliver it to a user due to FC/DND settings (Disabling Queueing for a campaign)

    • Impact on campaign delivery to Android app users: If a campaign is sent with Queueing disabled, and FCM is unable to deliver the message to a user, then the message will be dropped immediately (detailed read)

Throttling

Click to enlarge

As highlighted above:

  • Select Do not throttle campaign... to send all messages instantly to the entire target audience.

  • Select Throttle campaigns as per channel throttling limits to control the number of messages delivered per minute.

  • Select Throttle campaigns at... to specify a custom message throttling duration for this campaign.

    • Please note, this limit cannot be higher than the channel-level throttling limit specified under Settings > Throttling.

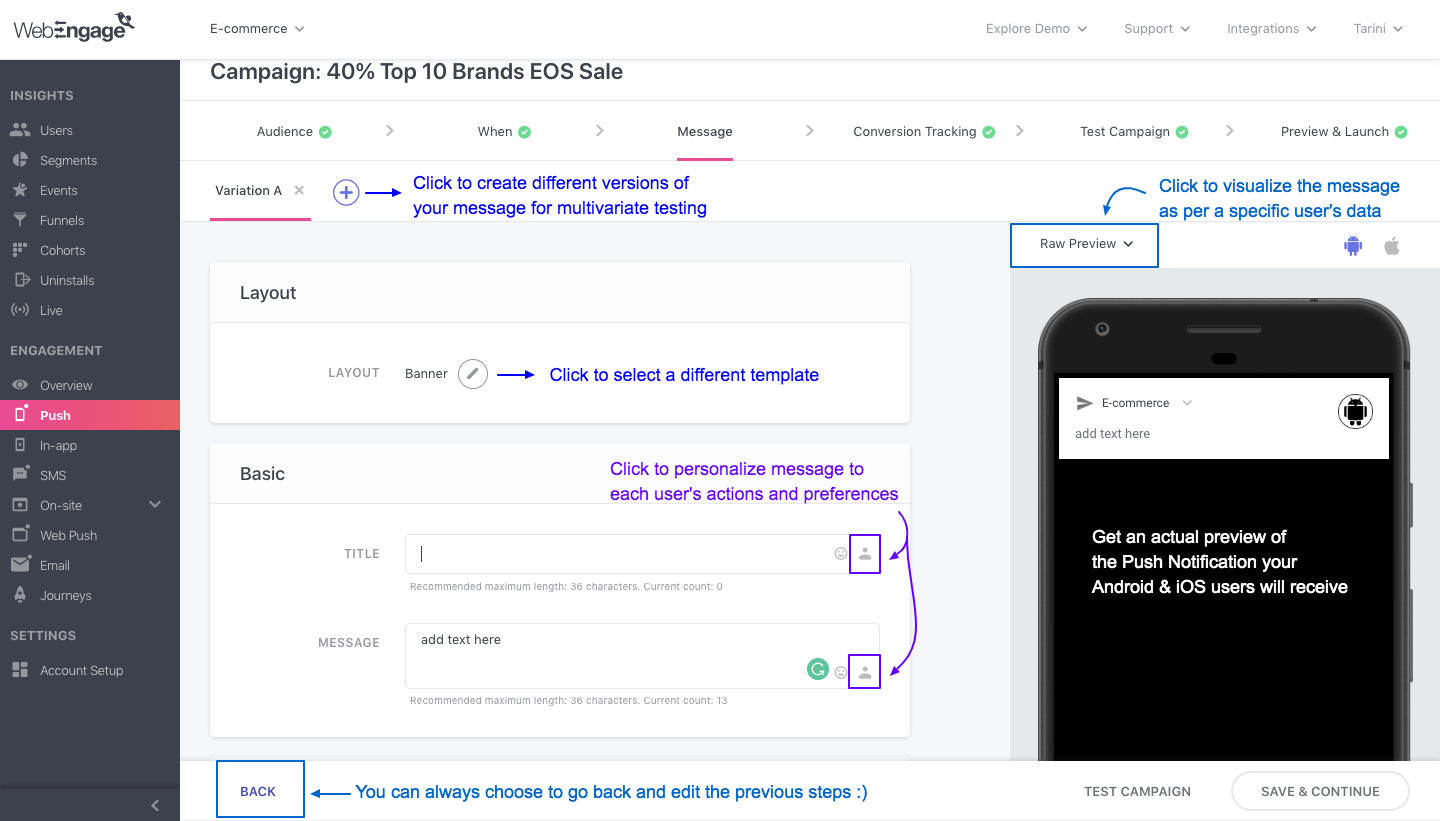

Step 3: Create the Message

The most exciting part of campaign creation - building the message!

Click to enlarge

As highlighted above, the message creation interface comes loaded with intuitive features like Variations, Layouts, Deep linking, Message Preview, and advanced settings like Key-Value Pairs - enabling you to create high impact Push Notifications in minutes.

Let's get you acquainted with each feature:

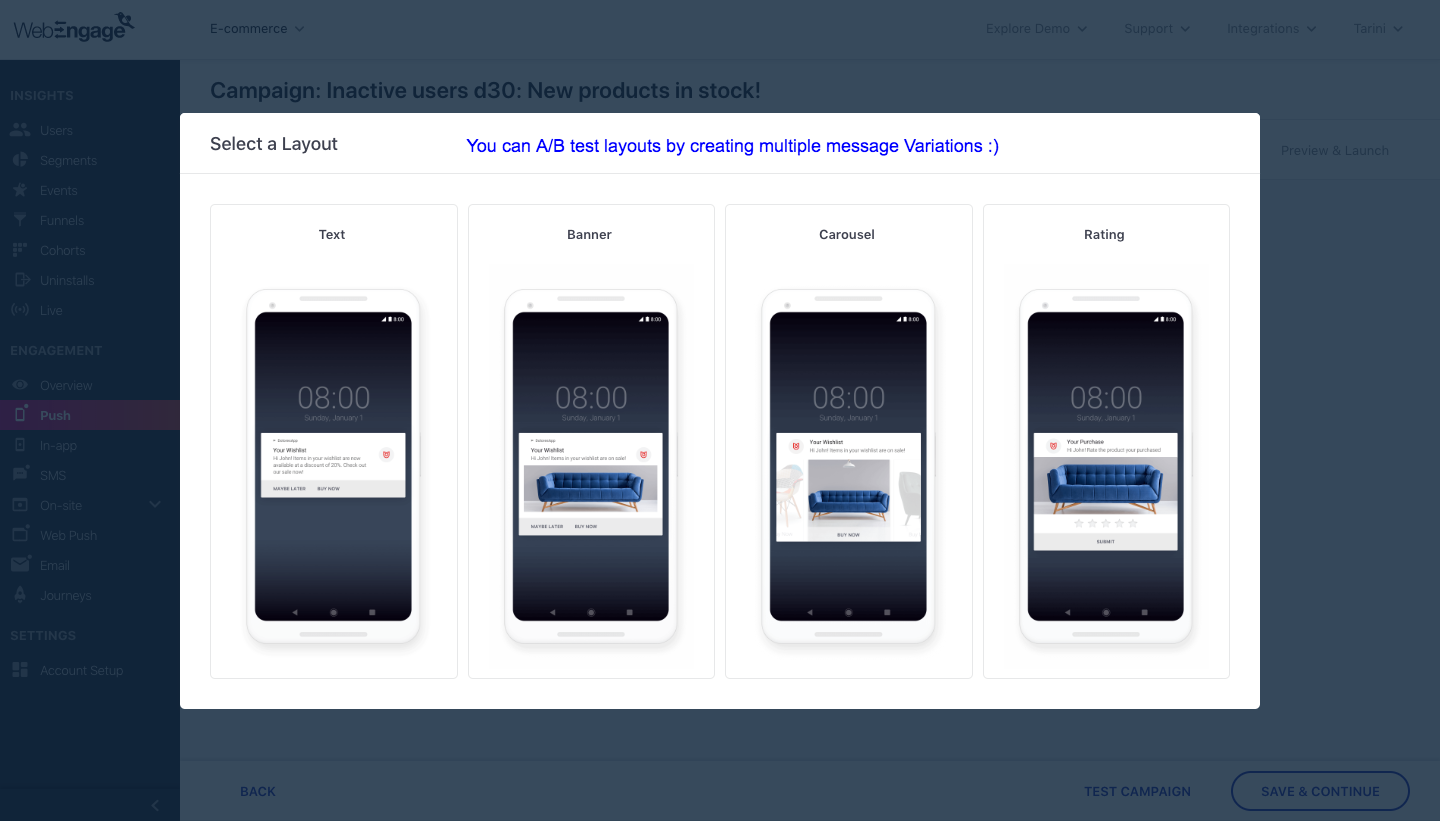

Select a Layout

You can choose from the following ready-to-use templates to create a Variation.

Click to enlarge

Let's quickly walk you through each:

Text: A text-only template, allows you to send quick updates and offers, personalized to each user's preferences and behavioral history. (Creating dynamic text notifications)

Personalising Text Push Notifications

Banner: A single-fold media template that allows you to create visually personalized notifications. (Creating personalized Banner Notification)

Personalising Banner Push Notifications

Carousel: A multi-fold rich media template that enables you to fight Push Blindness and create highly engaging app experiences. (Creating personalized Carousel Notification with contextual deep links)

Personalising Carousel Push Notifications

Ratings: A clean, UX friendly template that allows you to collect product and service feedback with great ease. (Creating a dynamically personalized Rating Notifications)

Personalising Rating Push Notifications

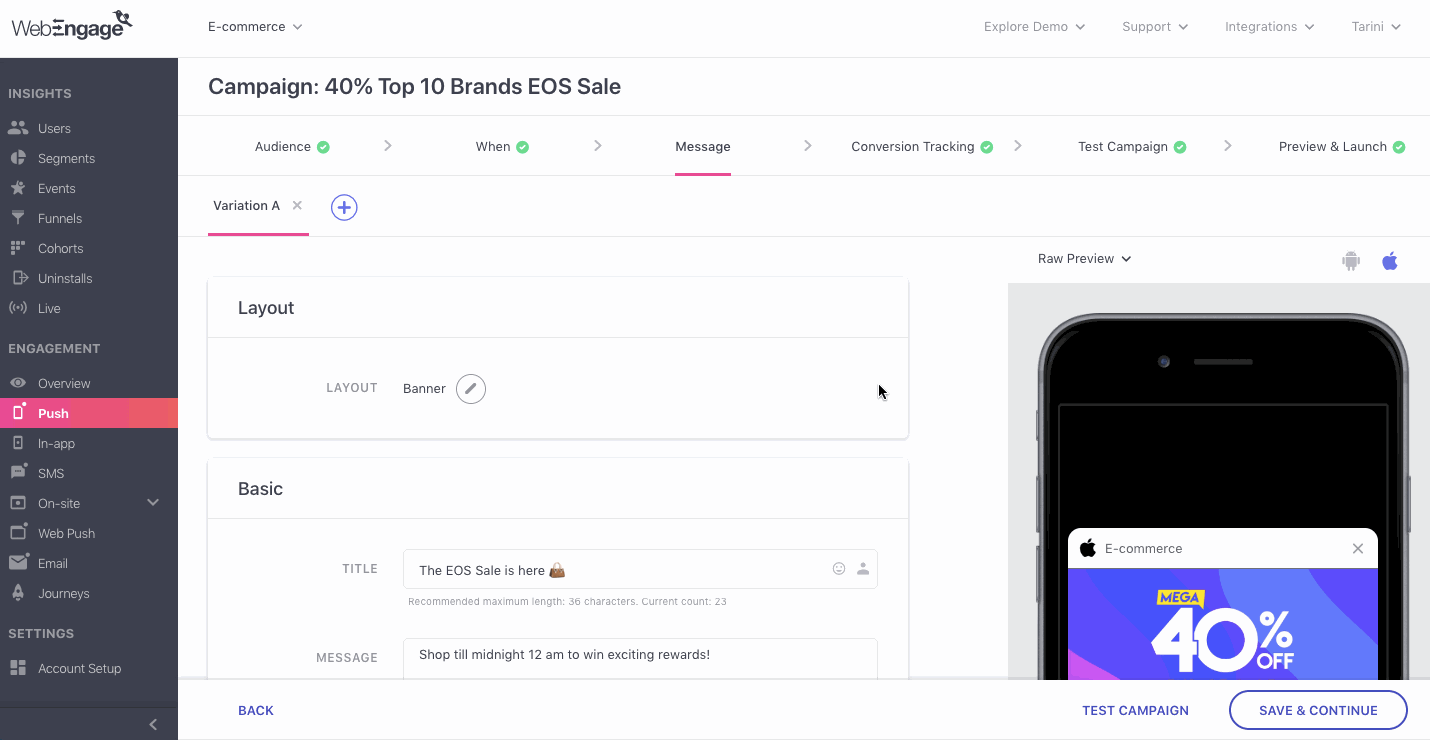

As shown below, you can always choose to change the template of a Variation by clicking the Edit icon, allowing you to start building the message from scratch.

Click to enlarge

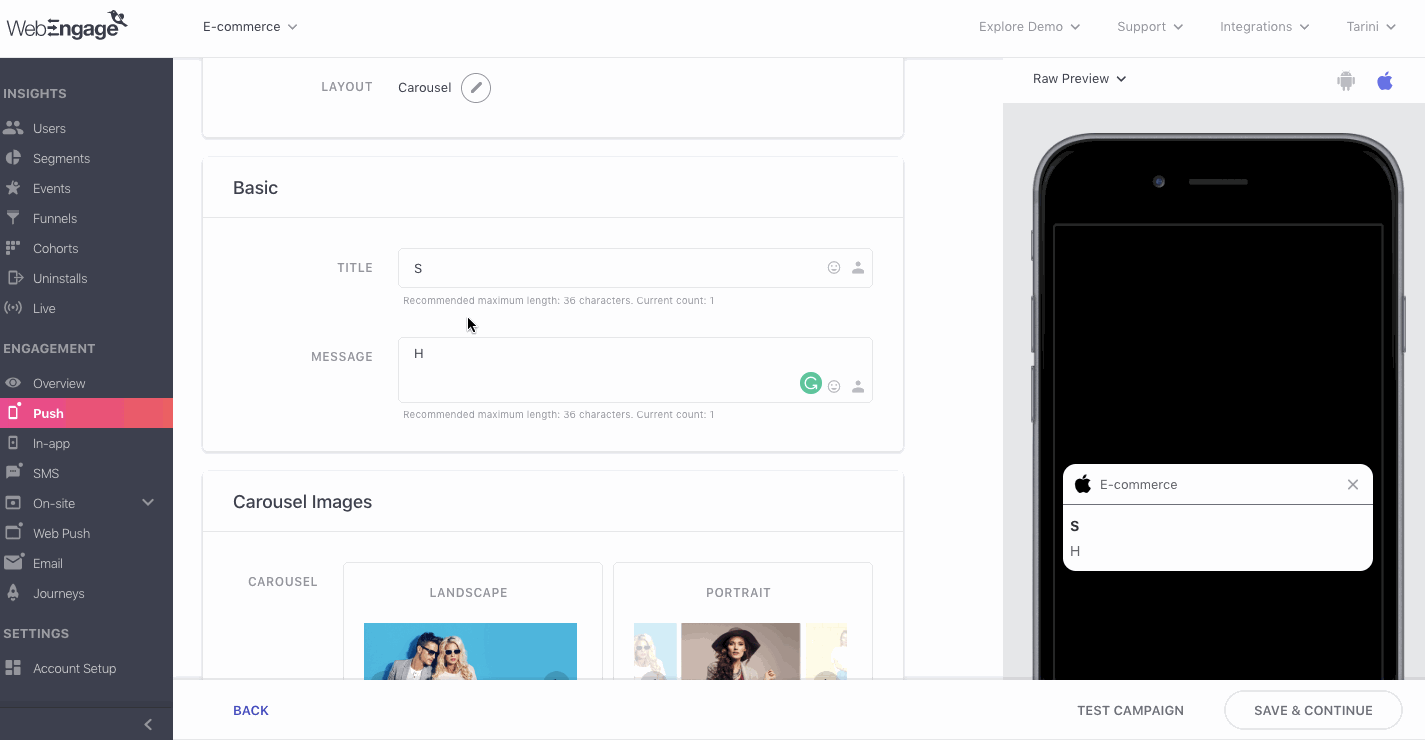

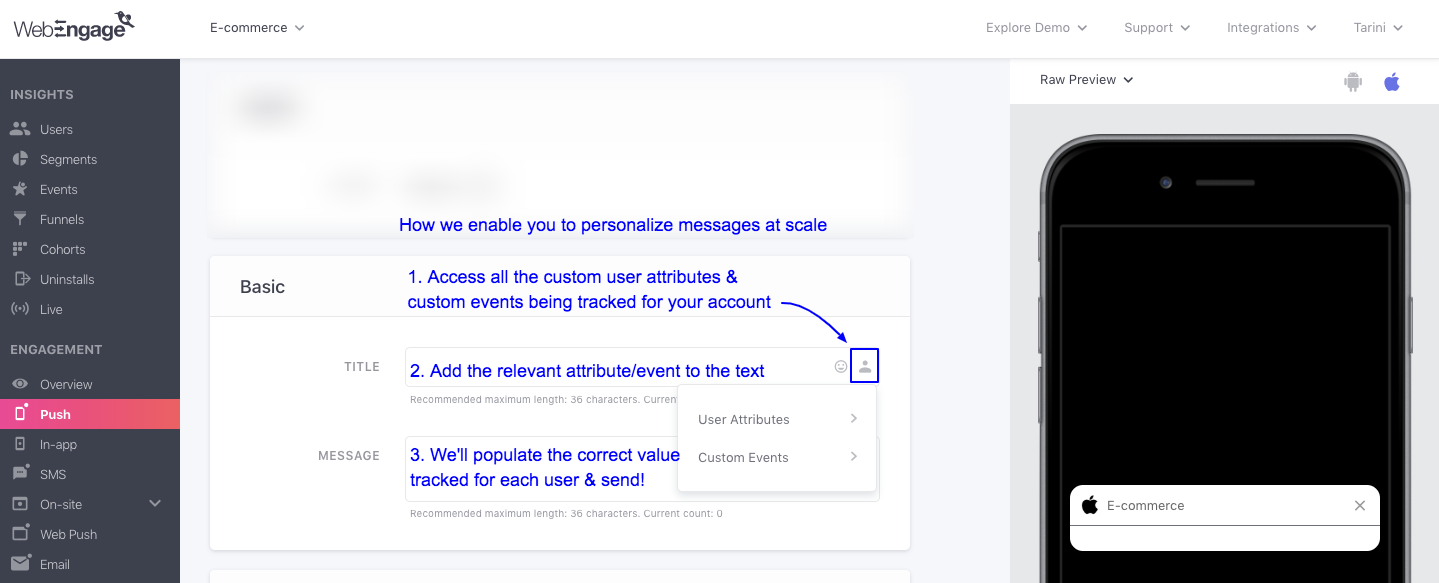

Basic (Add text)

Click to enlarge

Using the Personalization icon nested in the Title, and Message fields, you can easily create dynamically personalized content. Simply select a value from a list of all the Custom User attributes and Custom Events being tracked for your app and place them appropriately within the text. We'll add the exact value tracked for each user, helping you deliver one-on-one messages at scale :)

Let's show you how this works:

πŸ‘

Reminding User About Upcoming Anniversary & Offering a Celebratory Discount on Purchase

Let's take the example of an e-commerce app that exclusively sells clothing and accessories. Whenever a user signs up, they ask them for additional details like their partner's birthdate, anniversary date and so on. The idea is to engage these users with a celebratory discount offer a few days before D-day (& remind them of the upcoming event).

Here's how they created a dynamic Push Notification reminding users of their upcoming anniversary and offer 30% on all purchases:

Click to enlarge

As you can see in the visual above, we have personalized the message with:

Thus, whenever the Push Notification is sent to a user, we will populate the First Name and Anniversary Date with the exact values gleaned for their user profile.

Configure Banner Layout

🚧

Related Read

Text and Image guidelines for creating Banner Notifications

The Image section, enables you to personalize the Banner image to each user's preferences/behavior.

Click to enlarge

As shown above, a generic banner image can be added in two ways:

1. Insert Image Link: The image must be hosted on a publicly accessible domain to ensure that it renders for all users receiving the message.

2. Upload Image: Click the Upload button placed next to the field, image and select a file from your desktop. In doing so, the image will get hosted on WebEngage's domain: https://afiles.webengage.com.

You can always click the Reset button to link/upload a new image.

🚧

Personalizing Banner Image to Each User's Interests

You can easily personalize images to the preferences & behavioral history of your app users in any of the following ways:

Configure Carousel Layout

🚧

Text and Image guidelines for creating Carousle Push Notifications

The Carousel Images section, enables you to:

Here's how you can go about it:

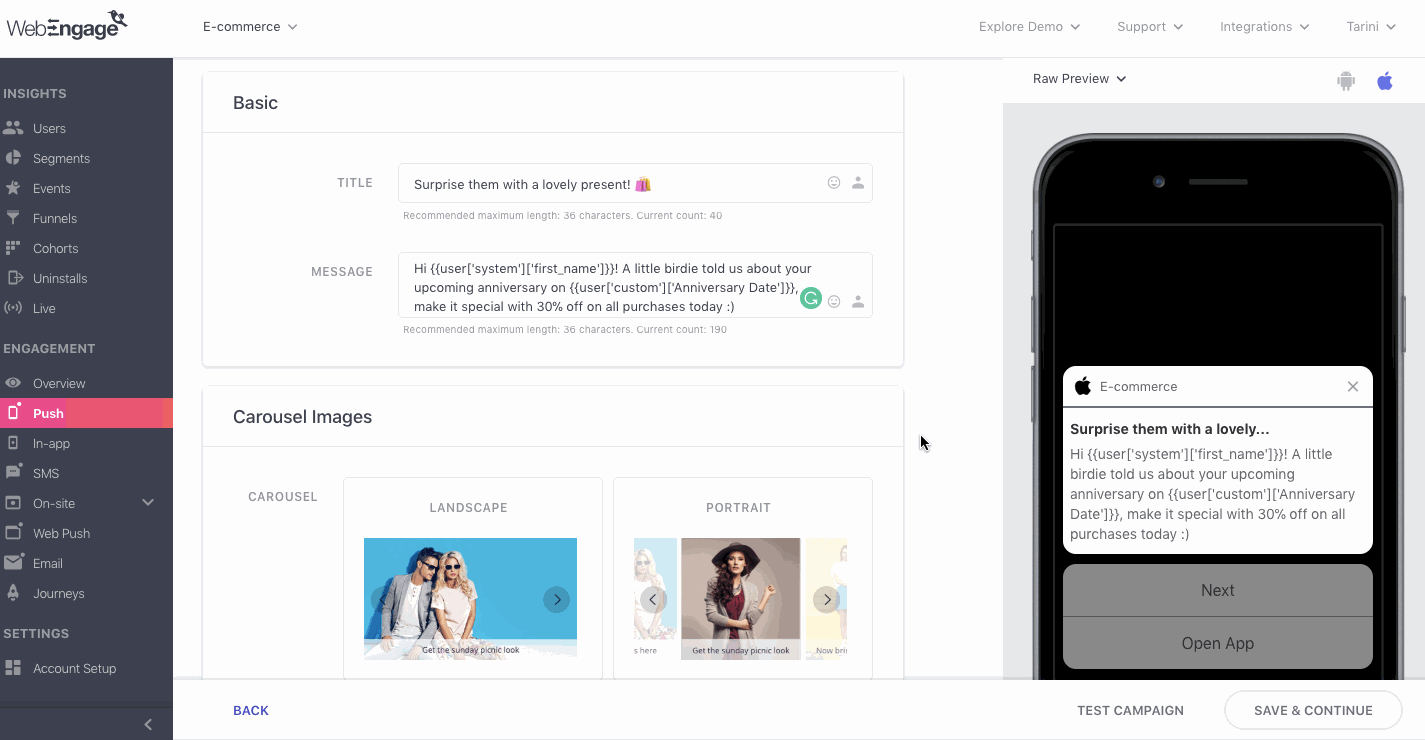

Step 1: Select a Template

Click to enlarge

As shown above, you can choose between a Landscape or Portrait style template for your notification, depending on the dimensions of the images being used.

  • Click the Add Image button to add a maximum of 5 images to the carousel.
  • Click the Reset button to start from scratch anytime you like!

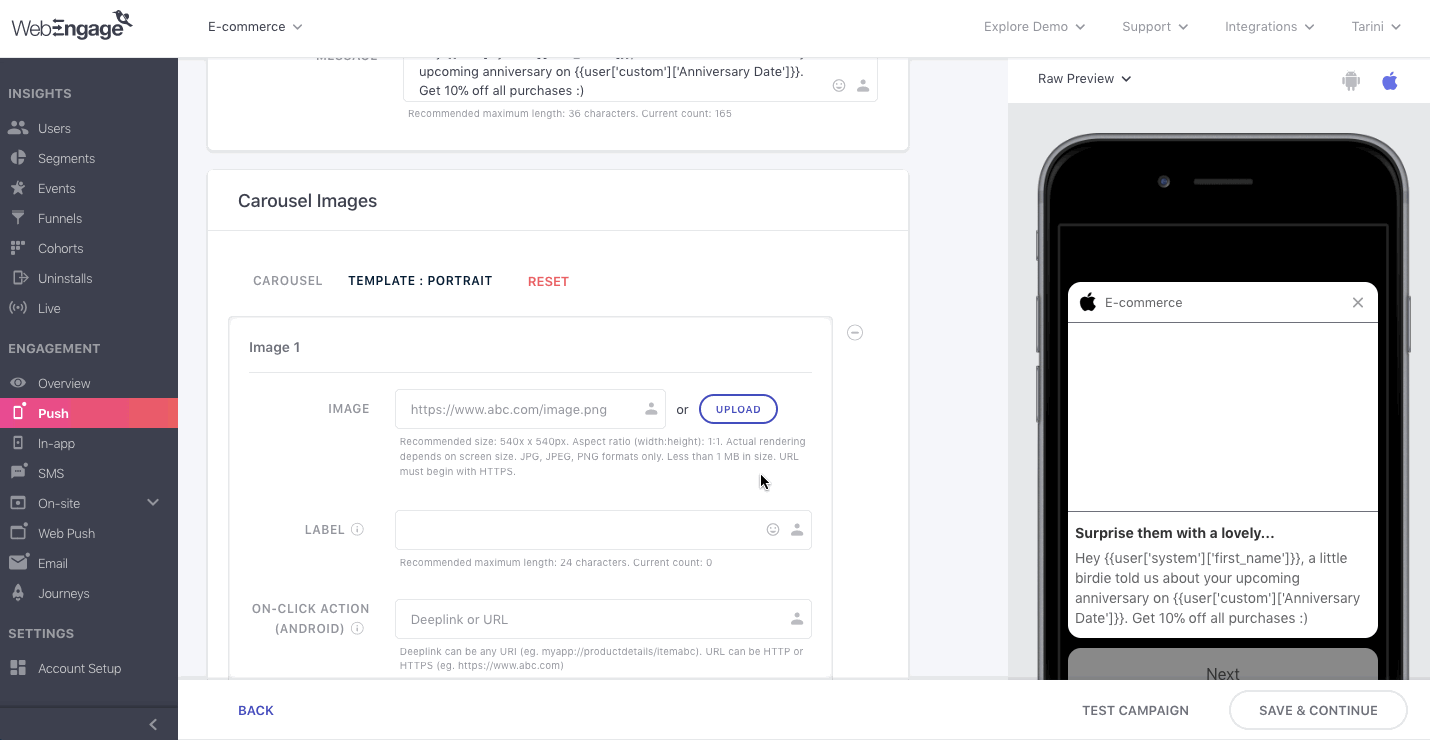

Step 2: Add Carousel Images

Click to enlarge

As shown above, a generic carousel image can be added in any of the following ways:

1. Insert Image Link: The image must be hosted on a crawlable/publicly accessible domain to ensure that it renders for all users receiving the message.

2. Upload Image: Click the Upload button placed next to the field, image and select a file from your desktop. In doing so, the image will get hosted on WebEngage's domain: https://afiles.webengage.com.

You can always click the Reset button to link/upload a new image.

🚧

Personalizing Carousel Images to Each User's Interests

You can easily personalize images to the preferences and behavioral history of your app users in any of the following ways:

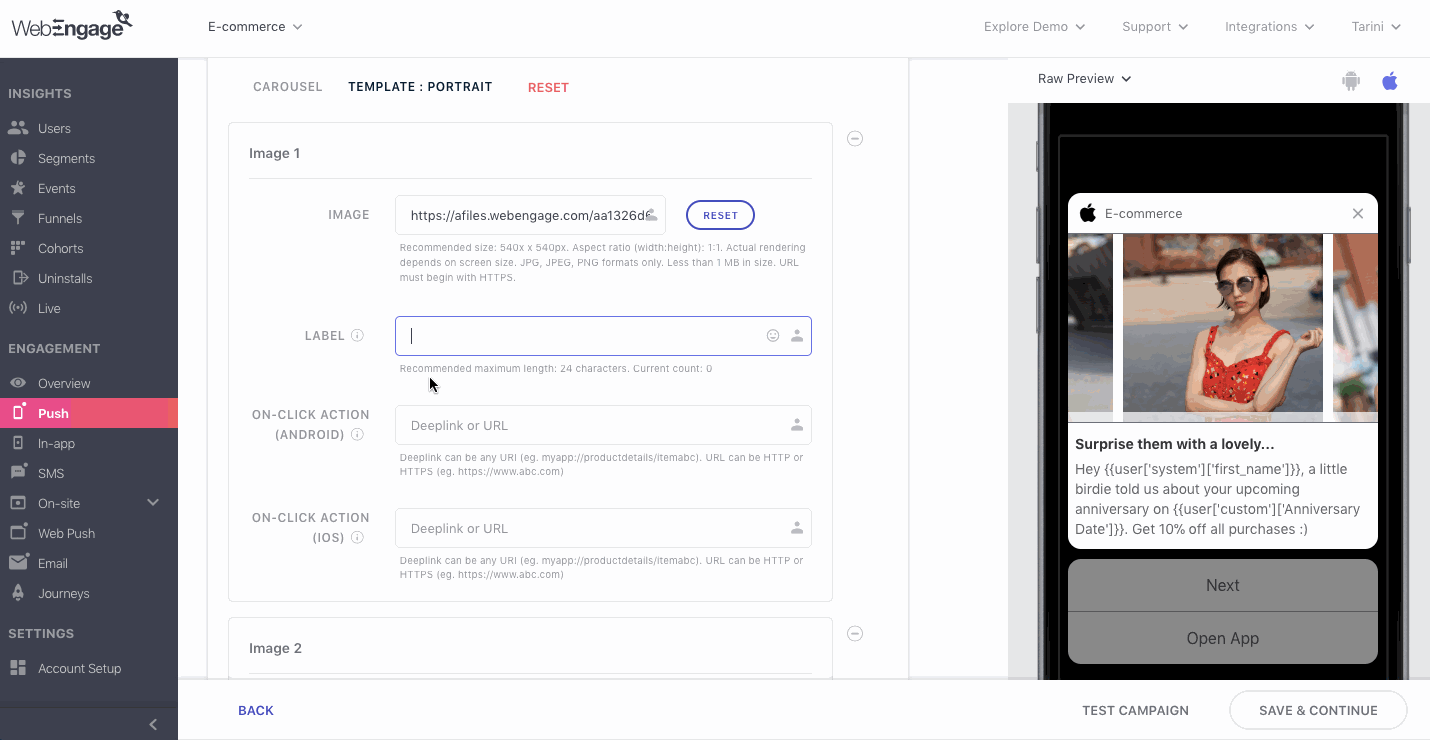

Step 3: Add Label (CTA)

(Mandatory)

Label refers to the text added below the image and doubles up as a Call-to-Action (CTA) for each fold of the Carousel. For example, in the visual below, we have added a contextual label to each image.

Click to enlarge

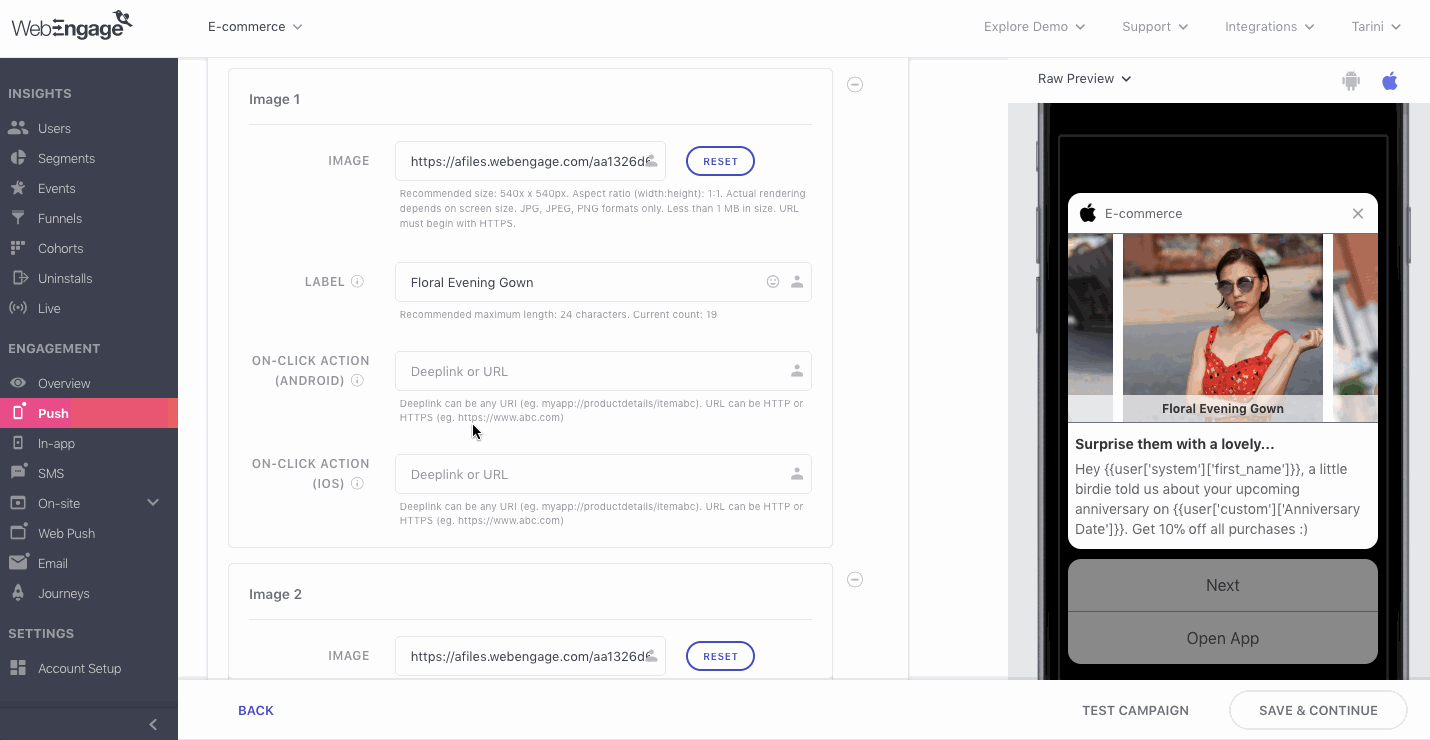

Step 4: Insert Deep Link (On-click Action)

You can choose to deep link each image to a specific screen in your Android and iOS app, or direct users to a web page by specifying an On-click Action, as shown below.

Click to enlarge

For example, in the above visual we have added a separate deep link for each image, to ensure that the user is directed to the respective fashion collection when they click on the image.

Further, you will notice that the deep links specified for the Android app are in a different format compared to the links specified for the iOS app. This is because we have created a unique URI for each collection in our Android app while we are leveraging Universal Links for the iOS app (the same link is also used for our website).

🚧

Personalizing On-click Action to a User's Preferences of Behavioral History

You can easily personalize the On-click Action of each image to your users based on the Custom User Attributes and Custom Events gleaned for them. This can be achieved in any of the following ways:

This is an optional field and you can choose to skip it if:

πŸ‘

Fact Check

The image Label and On-click Action link must be in sync to deliver a cohesive experience!

Configure Ratings Layout

🚧

Image and text guidelines for Rating Notifications

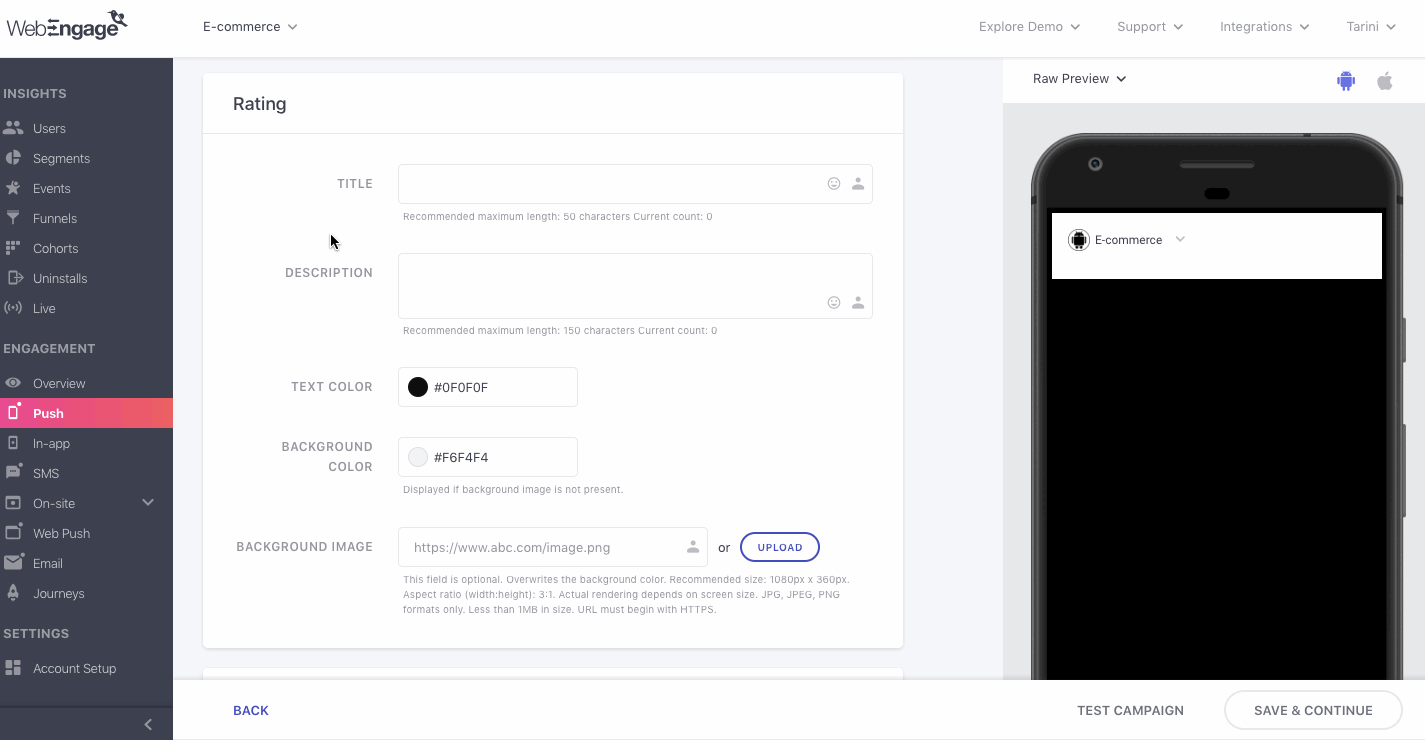

The Rating section enables you to configure the background image and message for your Rating style Push Notification. Here's how you can go about it:

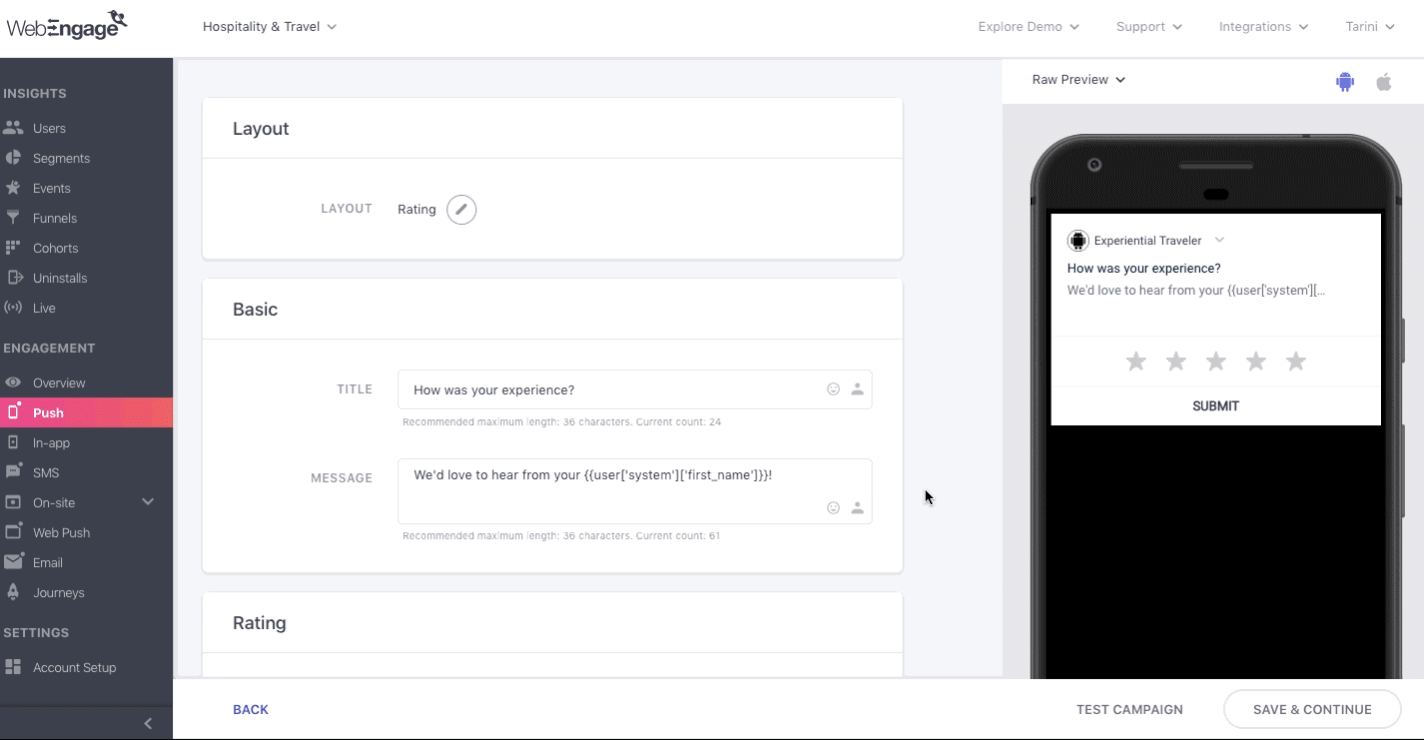

Step 1: Add Title & Description

As shown below, you can create a dynamic Title and Description for the Push Notification by adding relevant User Attributes and Custom Events to the message through the Personalization icon nested under each field.

Click to enlarge

For example, in the above visual, we have personalized the Rating template to the user's first name and the last product purchased by them by adding the following tokens as placeholders in our message:

  • {{user['system']['first_name']}} - For adding the user's first name
  • {{event['custom']['Order Placed']['custom']['Products']}} - For adding the name of the product purchased by the user

Thus, whenever the Push Notification is sent, we will populate the tokens with the corresponding values gleaned for the respective users, helping you communicate one-on-one at scale.

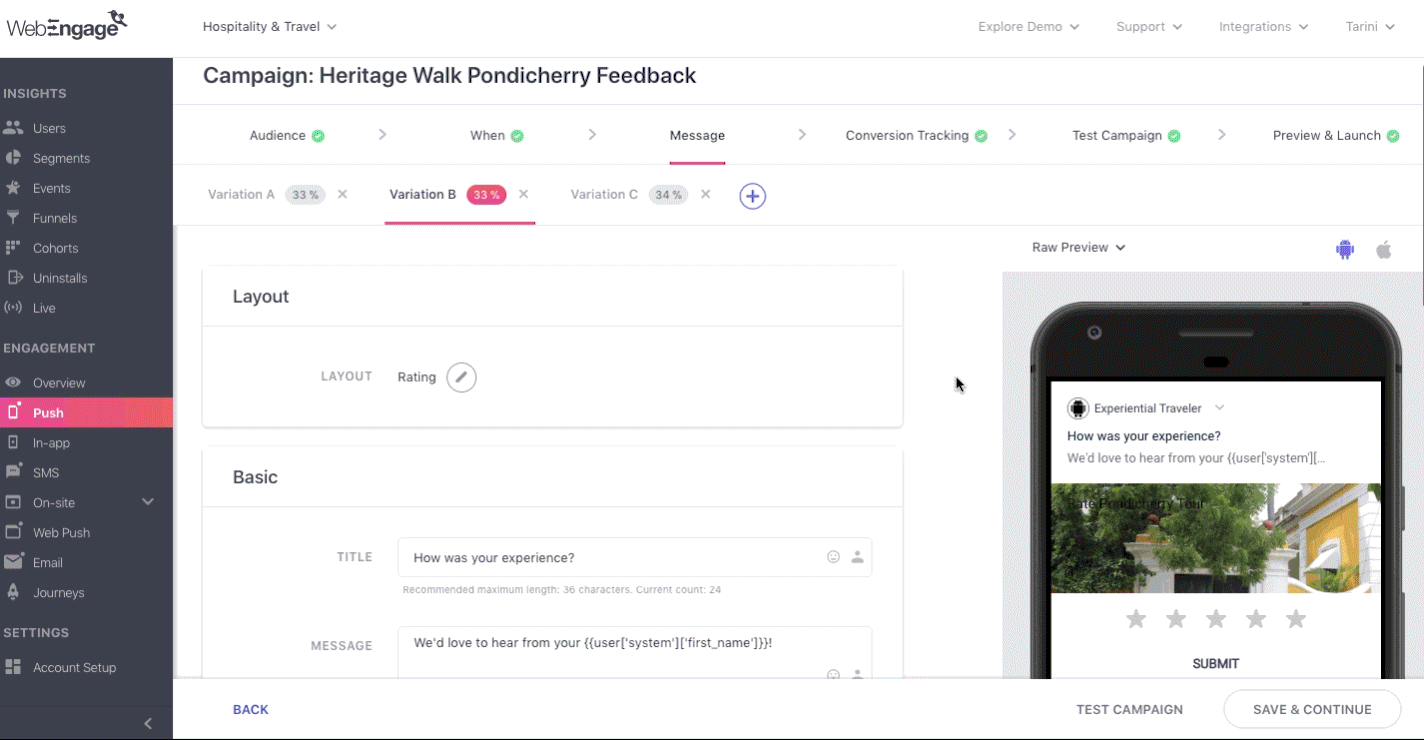

Step 2: Customize Text & Background Color

As shown below, you can easily add your brand colors to the palette and customize the look and feel of the Push Notification as per your needs. However, if you are adding a background image, then it will override the background color settings.

Click to enlarge

Step 3: Add Background Image

Click to enlarge

As shown above, a generic background image can be added in any of the following ways:

1. Insert Image Link: The image must be hosted on a crawlable/publicly accessible domain to ensure that it renders for all users receiving the message.

2. Upload Image: Click the Upload button placed next to the field, image and select a file from your desktop. In doing so, the image will get hosted on WebEngage's domain: https://afiles.webengage.com.

You can always click the Reset button to link/upload a new image.

🚧

Personalizing Background Image to Each User

You can easily personalize the background image to the preferences & behavioral history of your app users in any of the following ways:

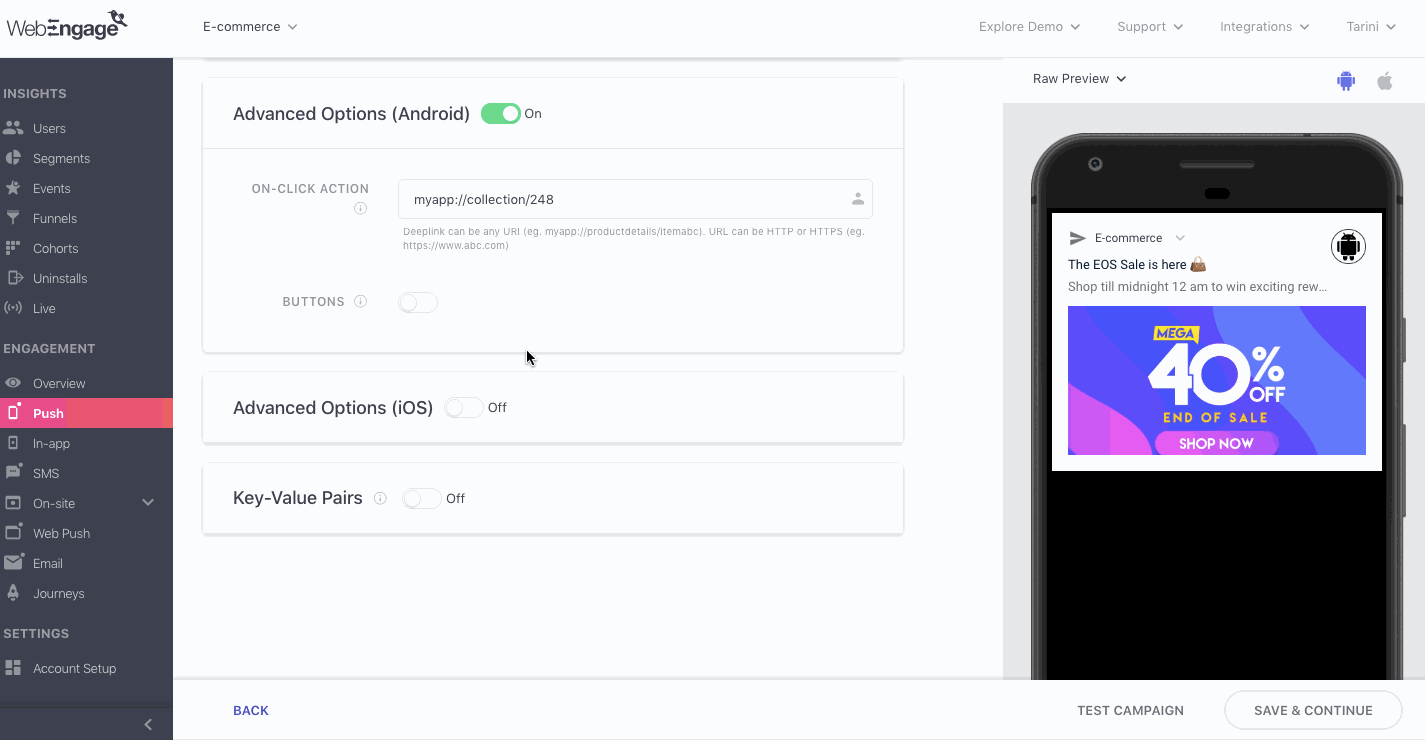

Advanced Options (Android)

Using the options nested under this field, you can customize the experience for your Android users by linking the entire Push Notification to a particular app screen and adding CTAs/Buttons to it, as shown below. Simply click the Toggle button to enable Advanced Options and get started!

This field gets hidden if you have specified iOS only as the Target Device at Step 1: Audience. Now, let's walk you through its features:

Click to enlarge

Adding On-click Action Link

In addition to the On-click Action specified for the Carousel images, you can specify a global On-click Action for all your Android users, as shown in the visual above. This link will be applied to those areas of the Push Notification that are currently unlinked, as highlighted below.

Click to enlarge

This is a great way to nudge users to perform the desired action, no matter how they choose to interact with the Push Notification.

🚧

Personalizing On-Click Action & Button Links

You can easily personalize the On-click Action and Button link to your users based on the Custom User Attributes and Custom Events gleaned for them.

This can be achieved in any of the following ways:

Adding Custom Buttons

Available only for Banner and Text layouts, as shown below, click the toggle button to enable and add up to 2 buttons to your Push Notification for Android users.

Click to enlarge

You can personalize the button link to each user's behavioral history, preferences or details. For example, in the above visual, we have personalized the link for the button, Start Exploring to the (Custom) User Attribute, Customer Type which denotes the type of membership purchased by each user.

This means that if the app offers the following types of memberships - Platinum, Gold & Silver, then users will be directed to the following app screens, respectively:

  • myapp://sale/platinum
  • myapp://sale/gold
  • myapp://sale/silver

Why can't custom buttons be added to a Carousel or Rating template?

Given the highly interacted nature of these type of Push Notifications, we have made it possible for you to customize the buttons, images, and links individually for each layout. Hence, adding buttons separately for Android users will defeat the purpose of customization made while Configuring the Carousel Layout or the Rating Layout.

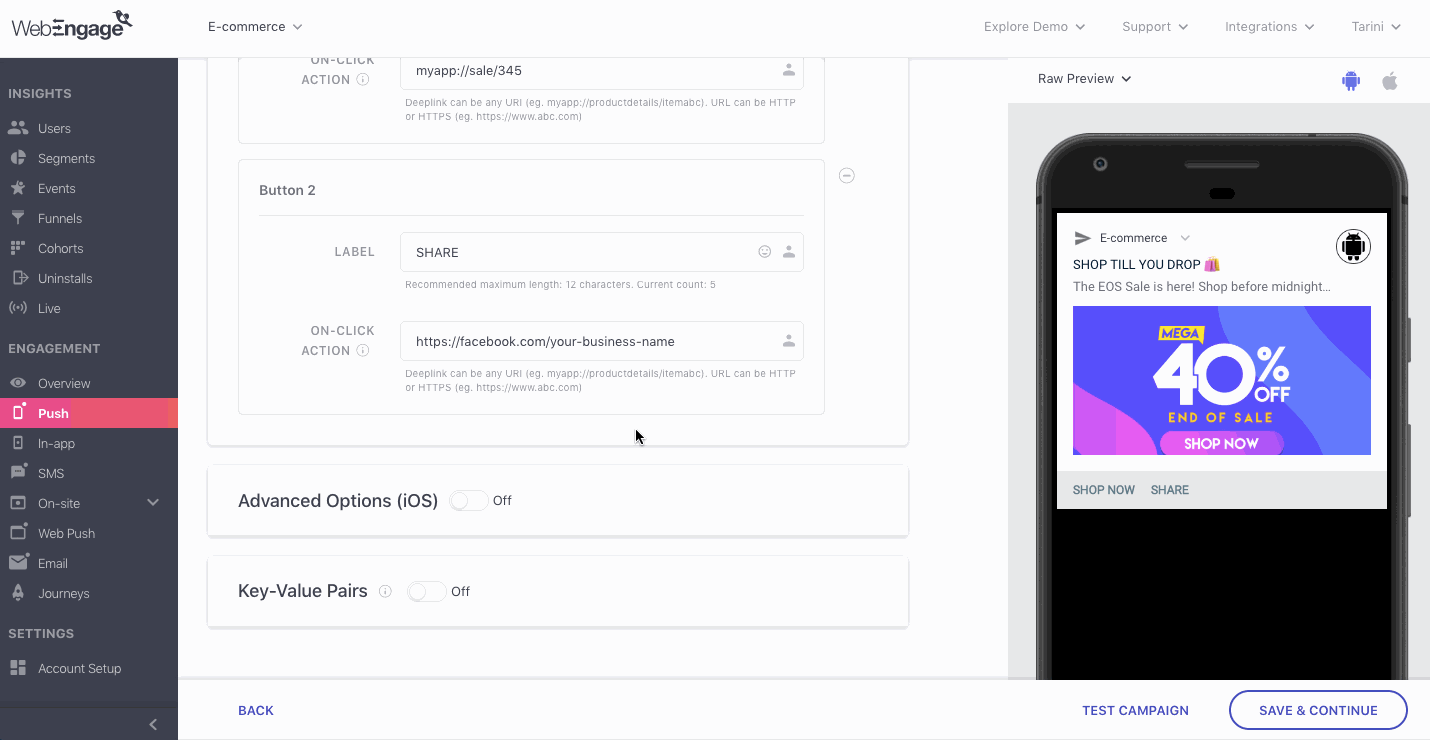

Advanced Options (iOS)

Using the options nested under this field, you can customize the experience for your iOS users by linking the entire Push Notification to a particular app screen and adding CTAs/Buttons to it, as shown below. Simply click the Toggle button to enable Advanced Options and get started!

Click to enlarge

This field gets hidden if you have select Android only as theTarget Device at Step 1: Audience. Now, let's walk you through its features:

Adding On-click Action Link

In addition to the On-click Action specified for the Carousel images, you can specify a global On-click Action for all your iOS users. This link will be applied to those areas of the Push Notification that are currently unlinked, as highlighted below.

Click to enlarge

This is a great way to nudge users to perform the desired action, no matter how they choose to interact with the Push Notification.

🚧

Personalizing On-Click Action & Button Links

You can easily personalize the On-click Action and Button link to your users based on the Custom User Attributes and Custom Events gleaned for them.

This can be achieved in any of the following ways:

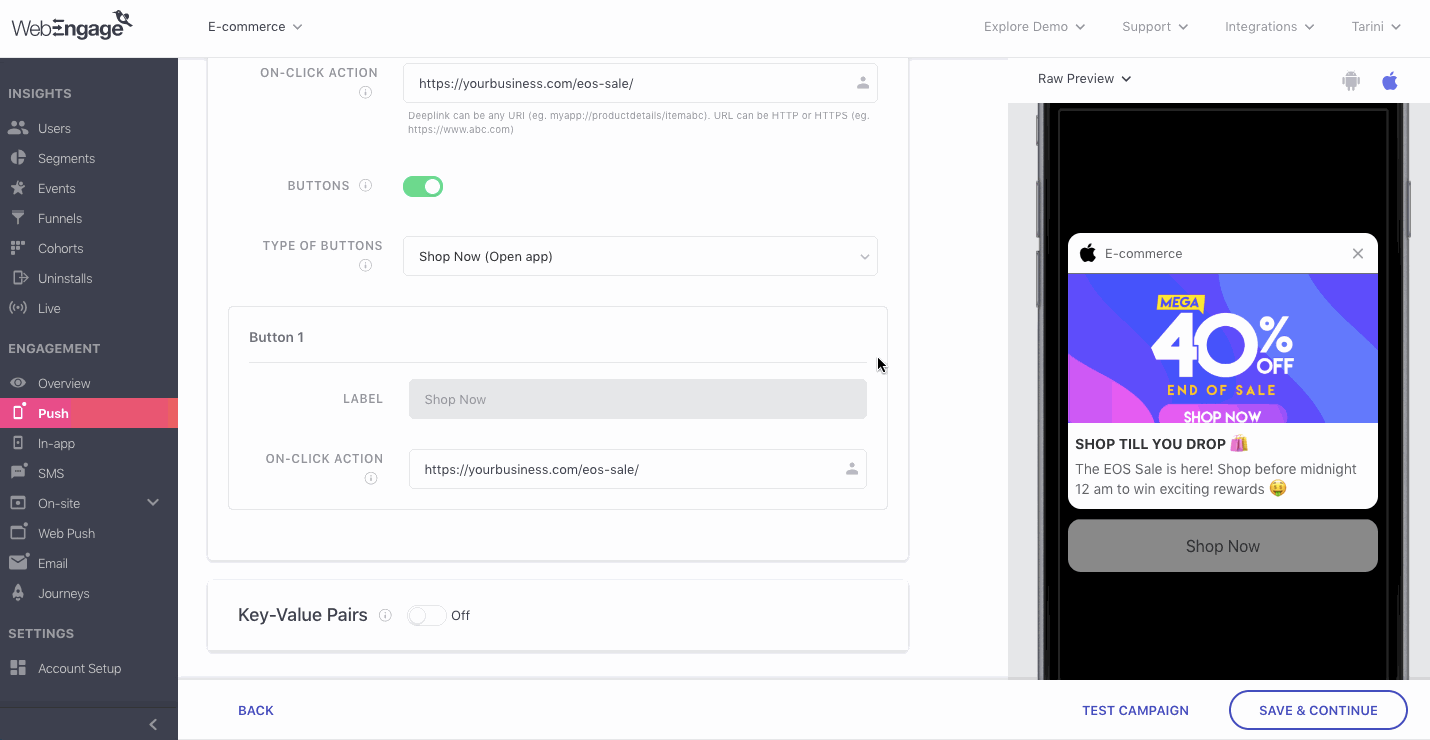

Adding Buttons/CTAs

As you must be aware, iOS allows you to add certain predefined CTAs or button towards the bottom of each Push Notification to facilitate seamless engagement. As shown below, you can leverage this functionality in 3 easy steps:

  • Step 1: Click the toggle switch to enable Buttons

  • Step 2: Select a relevant Button Type for your campaign

  • Step 3: Deep link it to a relevant app screen (you can also personalize the deep links to each user's preferences or behavioral history by following these steps)

Click to enlarge

You can add either of the following (predefined) Button pairs to a Text or Banner style Push Notification for all iOS users:

Button Types

How It Works

Yes or No

Open the app or dismiss the notification - these actions are tracked as the campaign events, App Opened and Push Dismissed, respectively, in your dashboard for all Push Campaigns.

Yes or No

Both options dismiss the notification and are tracked as the campaign event, Push Dismissed in your dashboard.

Accept or Decline

Open the app or dismiss the notification - these actions are tracked as the campaign events, App Opened and Push Dismissed, respectively, in your dashboard for all Push Campaigns.

Accept or Decline

Both options dismiss the notification and are tracked as the campaign event, Push Dismissed, in your dashboard.

Shop Now

Opens the app and takes the users to the defined deep link, recorded as the campaign event, Push Clicked in your dashboard.

Buy Now

Opens the app and takes the users to the defined deep link, recorded as the campaign event, Push Clicked in your dashboard.

Download

Takes the user to the deep link specified under On-click-Action, and is tracked as the campaign event, Push Clicked in your dashboard.

Why can't custom buttons be added to a Carousel or Rating template?

Given the highly interacted nature of these type of Push Notifications, we have made it possible for you to customize the buttons, images, and links individually for each layout. Hence, adding buttons separately for iOS users will defeat the purpose of customization made while Configuring the Carousel Layout or the Rating Layout.

Key-Value Pairs (Deep Linking, Personalization)

With Key-Value pairs, you can easily customize the contents of an app screen, personalize your Push Notification, deep link the notification to a specific app screen, web page and much more!

You can think of Key-Value pairs as a set of linked data points in which the Key acts as a unique identifier and the Value either represents the data or points to the location of the data that is identified by the Key.

The best part - these are not visible to your users. All this data is sent as an extra payload to your app, causing its code to perform the specified action and render the Push Notification accordingly.

Here's how you can go about it:

Click to enlarge

Step 1: Enable Key-Value pairs by clicking the toggle button, as shown above.

Step 2: Add a Key and its corresponding Value, as understood by your app.

Step 2: Click the Add Pair button to specify additional pairs.

  • For example, in the above visual, we have used the Key, appurl to deep link the Push Notification to a specific app screen, defined as the Value.

🚧

Must Read

How Key-Value pairs work & how you can leverage this feature to deliver contextually personalized app experiences (with use-cases)

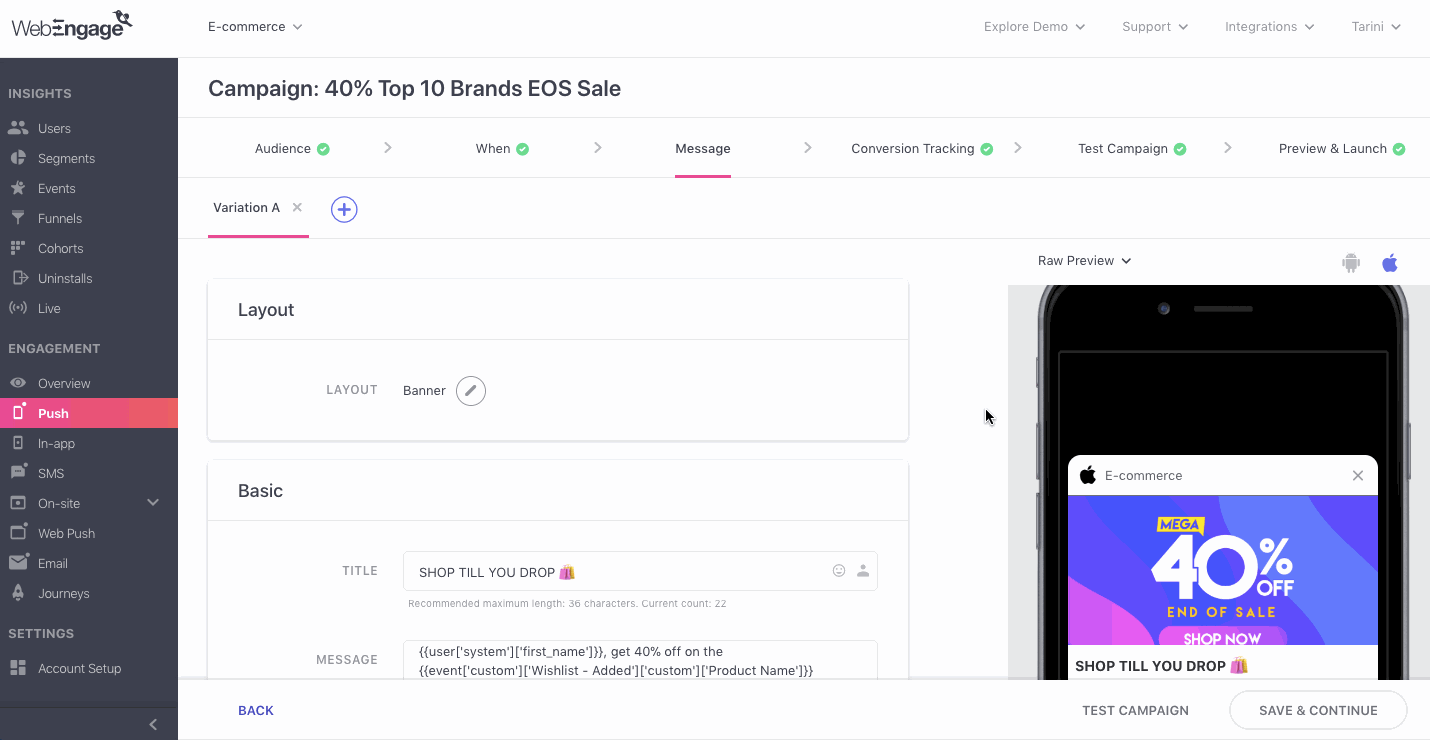

Preview Notification

Click to enlarge

As shown above, the left half of the campaign creation interface provides a real-time preview of the Push Notification being created by you. At any given point, you can toggle between a Raw Preview and User Preview to gauge the notification's appearance for both iOS and Android users (as per the target device selected at Step 1: Audience).

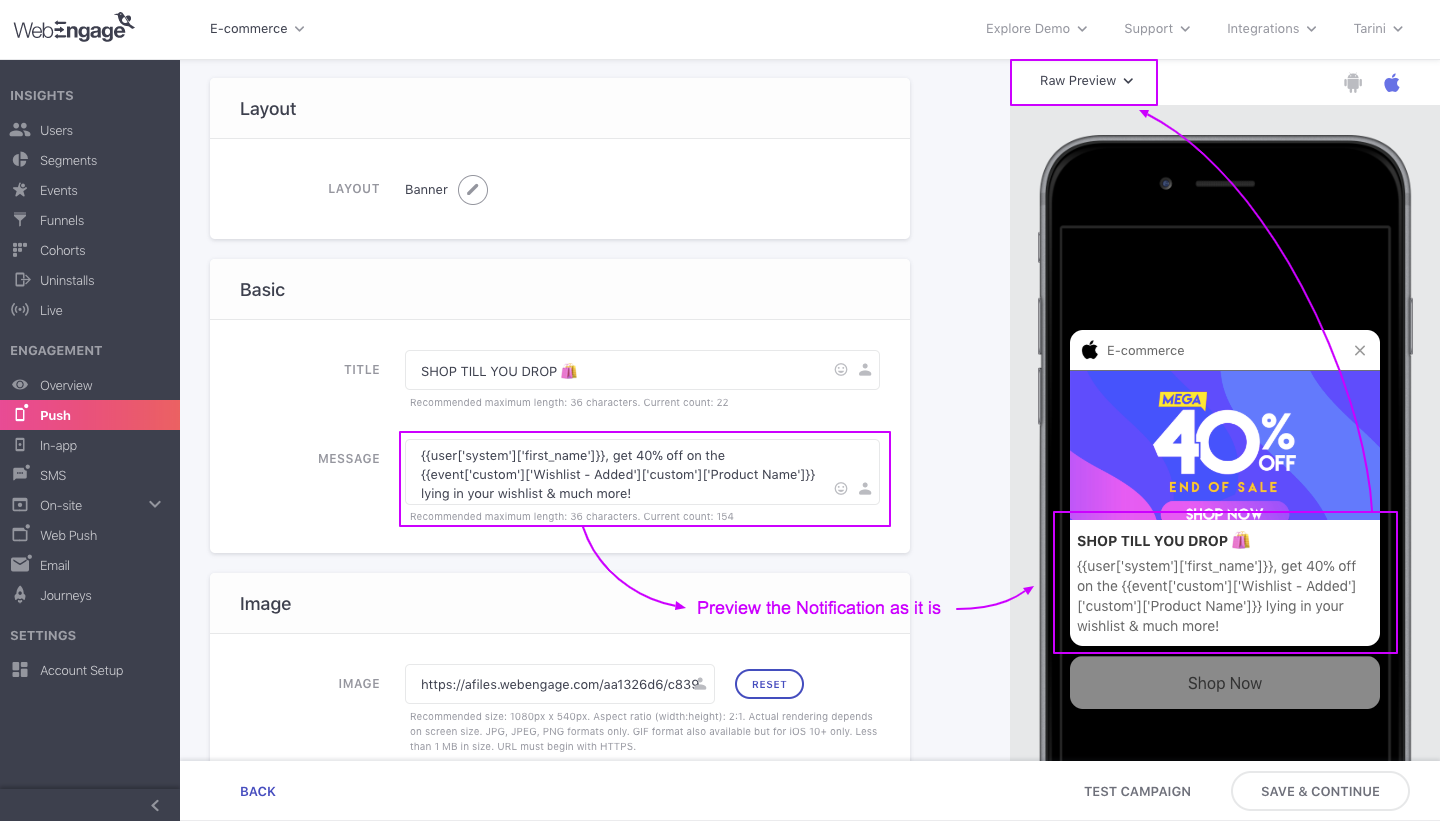

Raw Preview

As the name suggests, it renders the Push Notification with the raw message and attributes, as added by you to the Title & Message.

Click to enlarge

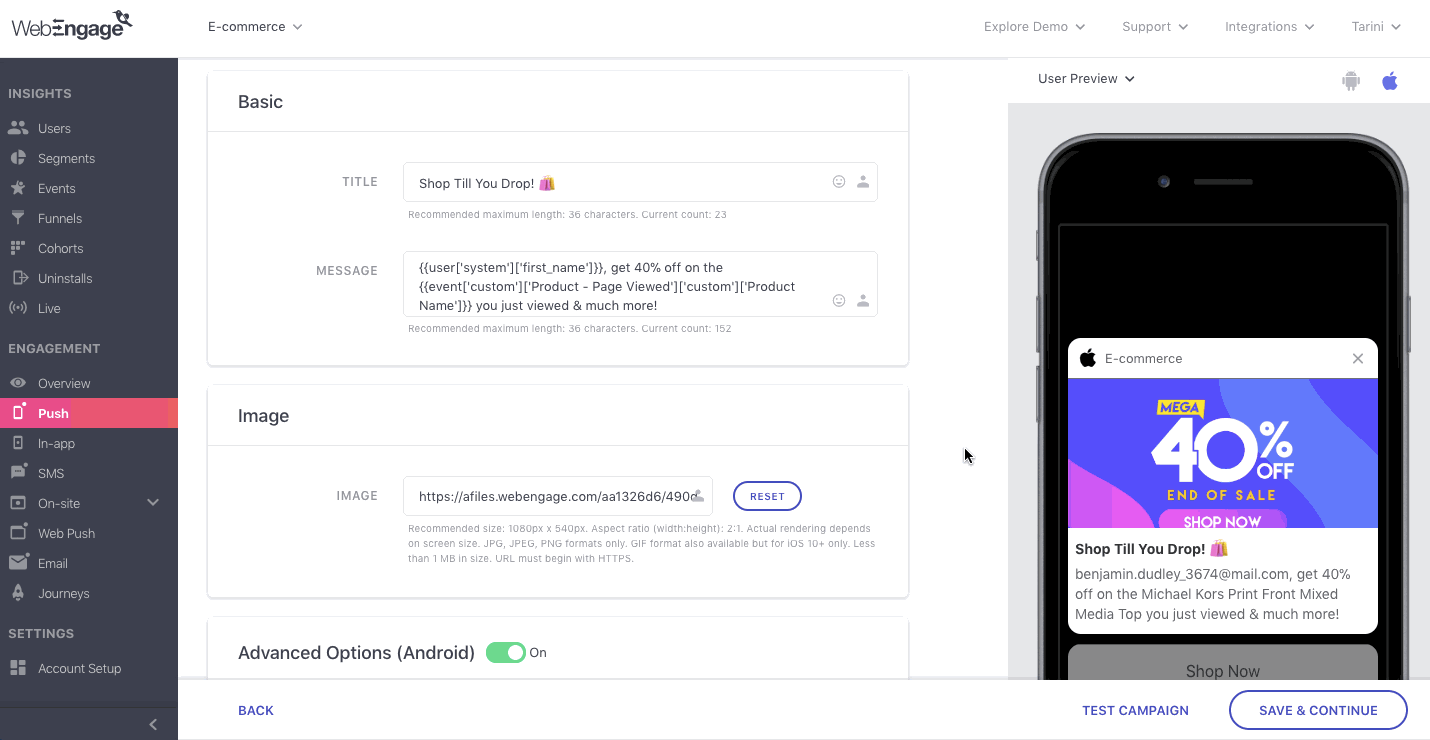

User Preview

Allows you to view the Notification for an actual user from your account by populating it with data from their user profile, as per the elements of personalization added to Title & Message.

Click to enlarge

For example, in the visual above, we have visualized the Push Notification's message for the User ID, benjamind_3674. Here's how you can go about it:

Step 1: Select User Preview from the dropdown placed on the top left

  • In doing so, you will be prompted by a pop-up allowing you to search for a user to populate the corresponding attribute and event values.

Step 2: Enter the User ID, preferably of a power user included within the target audience

Step 3: Click the Search and Populate button

  • In doing so, you will be shown a summary of the values against the respective attributes and events included in the message. This is a good way to ensure that all the values are available for the user, if not then you can enter an alternate User ID.

Step 4: Click the See Preview button on the pop-up to visualize the notification with real user data

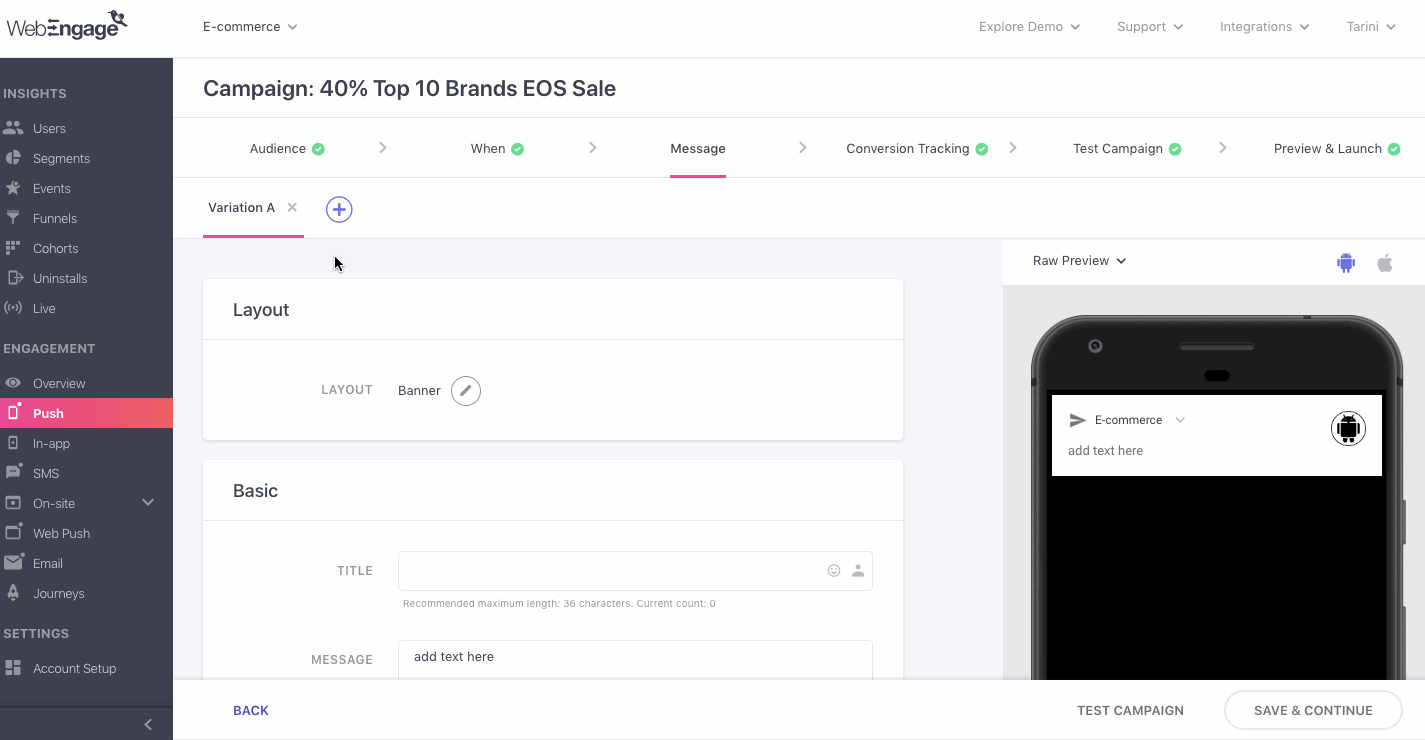

Create Variations

Variations are just different versions of the campaign's message that facilitate easy multivariate testing and are referred to in the following manner in your dashboard:

Variation A: The first version of the message.
Variation B: The second version of the message.
Variation C, D, E: Subsequent versions of the message created for testing.

Click to enlarge

As shown above, by default the message creation interface consists of a single Variation A.

  • You can click on the Plus icon to create up to 5 versions of the message.

    • Select Create New to start building the new Variation from scratch
    • Select Copy from Variation A (or any of the previous versions) to make minor edits to the new Variation
  • Each Variation can be created independent of the other, allowing you to test multiple aspects like its layout, body copy, buttons, links and colors to identify a mix that resonates with your entire target audience. (How to test message Variations)

  • The percentage values indicate the share of users, that will receive a Variation and can be customized at Step 4: Conversion Tracking.

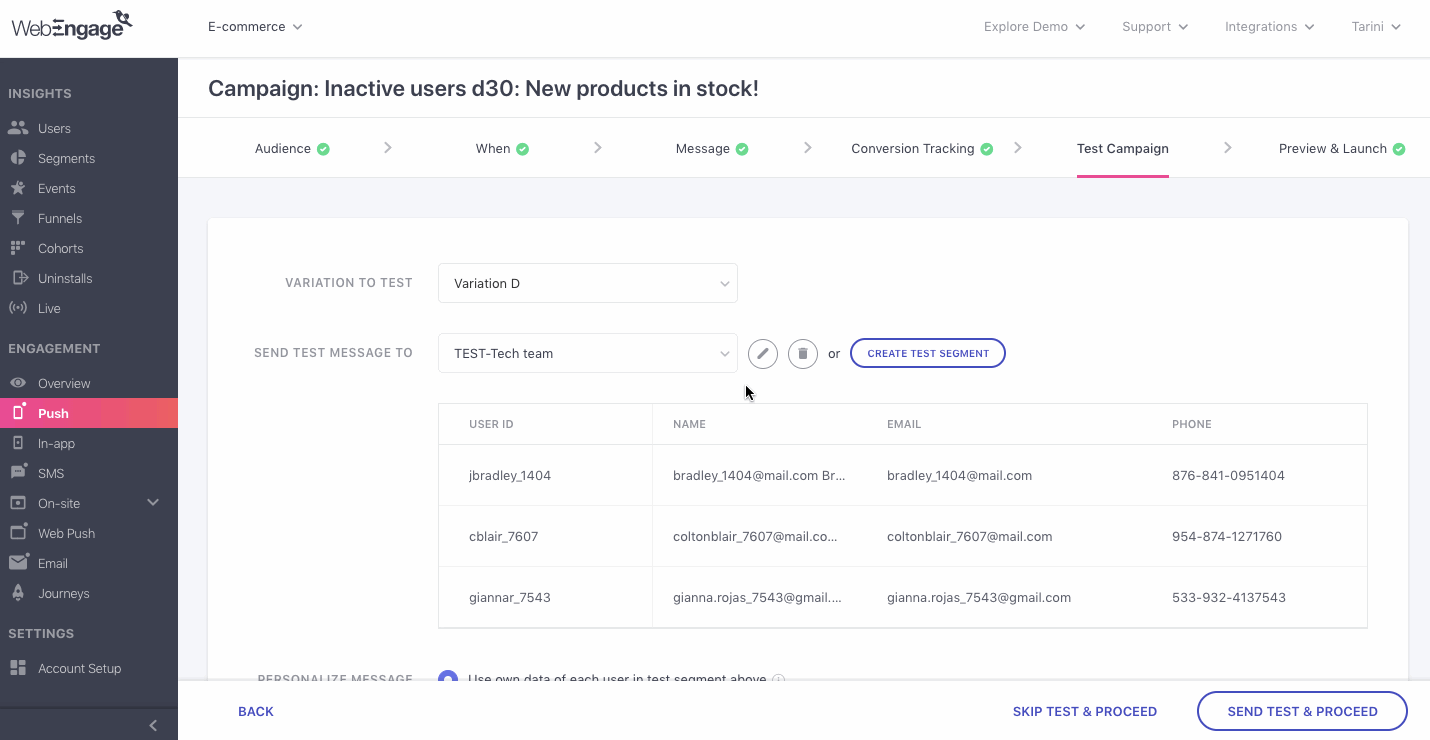

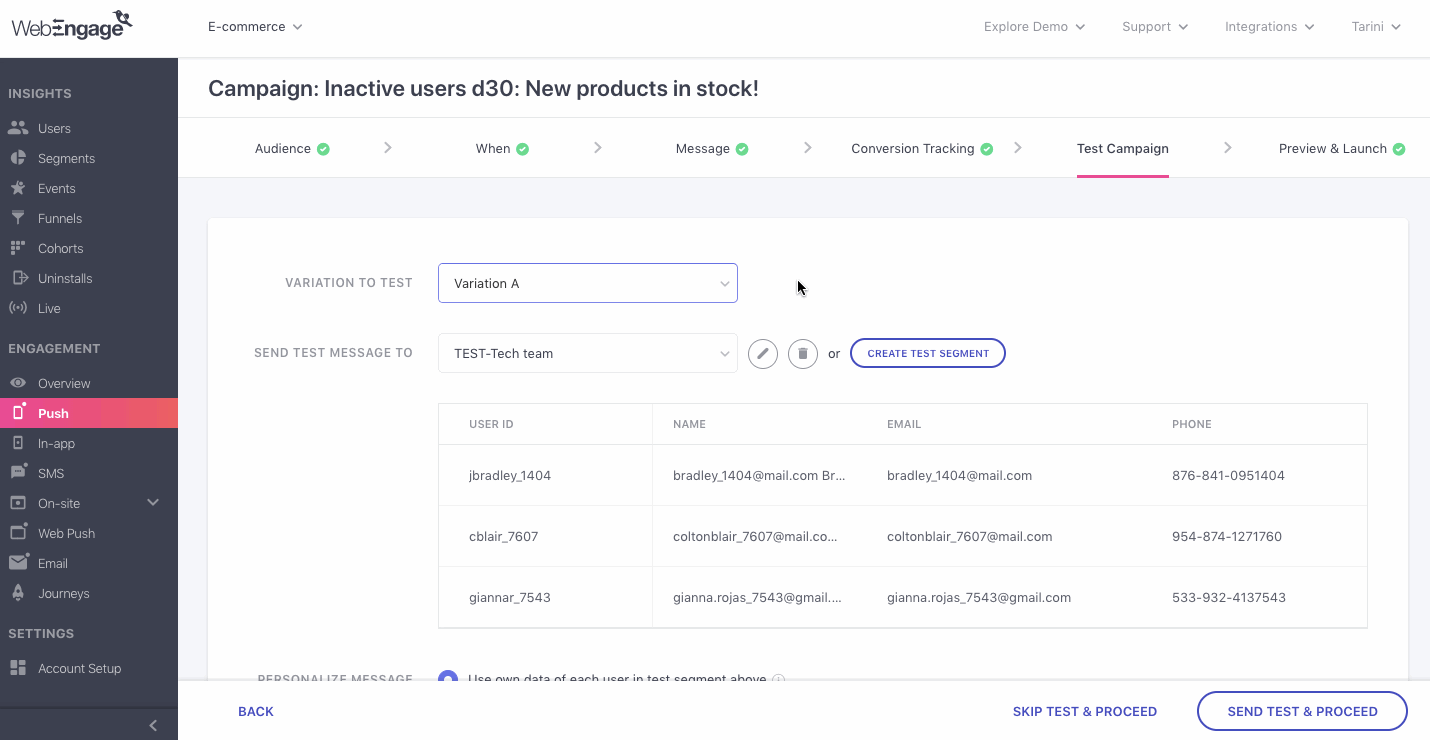

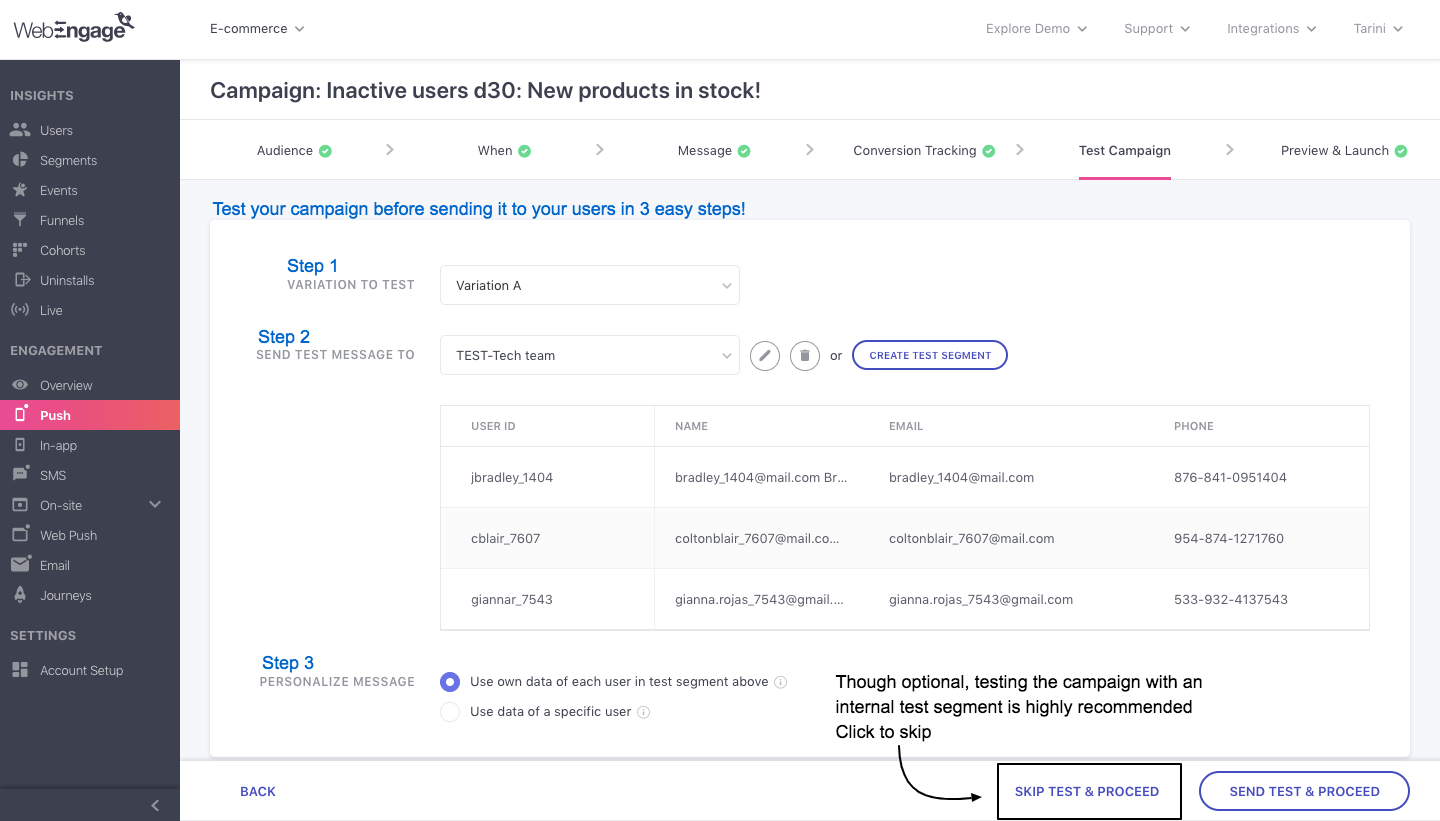

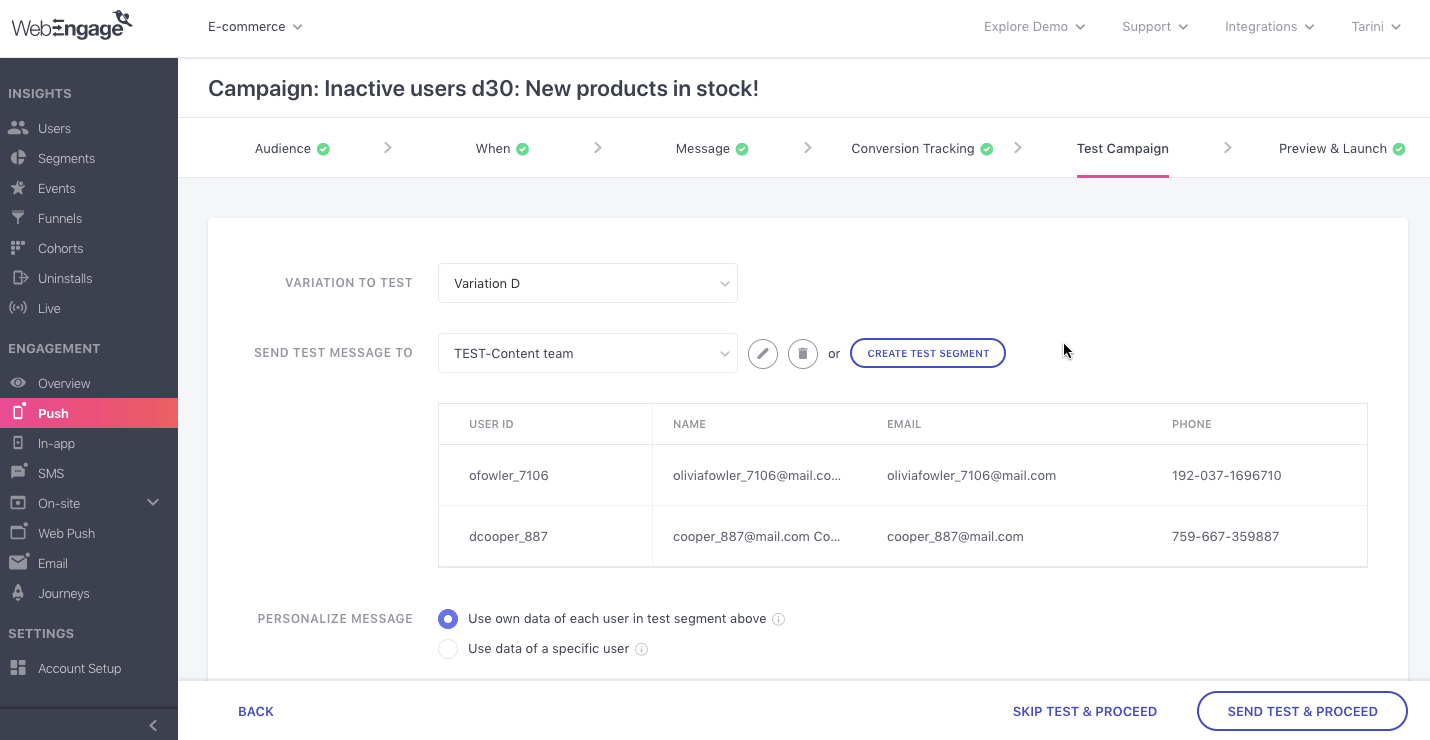

Test Message

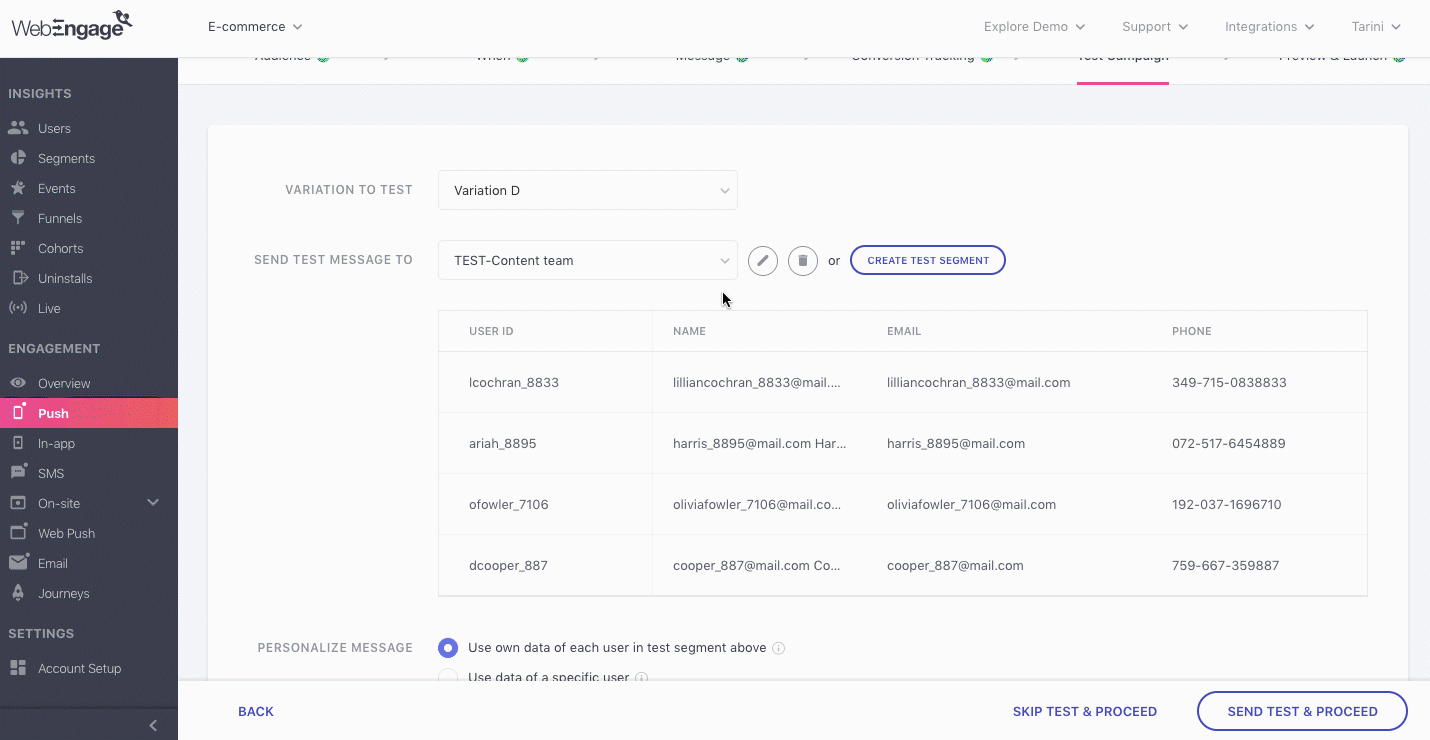

You can easily test the message with an internal segment of users before sending it to your entire user base. As shown below, click the Test Message button to select a Variation and Test Segment. Please refer to this Step-by-step Guide to proceed.

Click to enlarge

Step 4: Set up Conversion Tracking & Variation Testing

The fourth step of campaign creation allows you to measure the effectiveness of your campaign in various ways like:

Hence, it has been divided into two sections: Conversion Tracking and Variation Distribution. However, depending on the number of message Variations created by you, the view of Step 4: Conversion Tracking will vary:

When only 1 Variation Exists

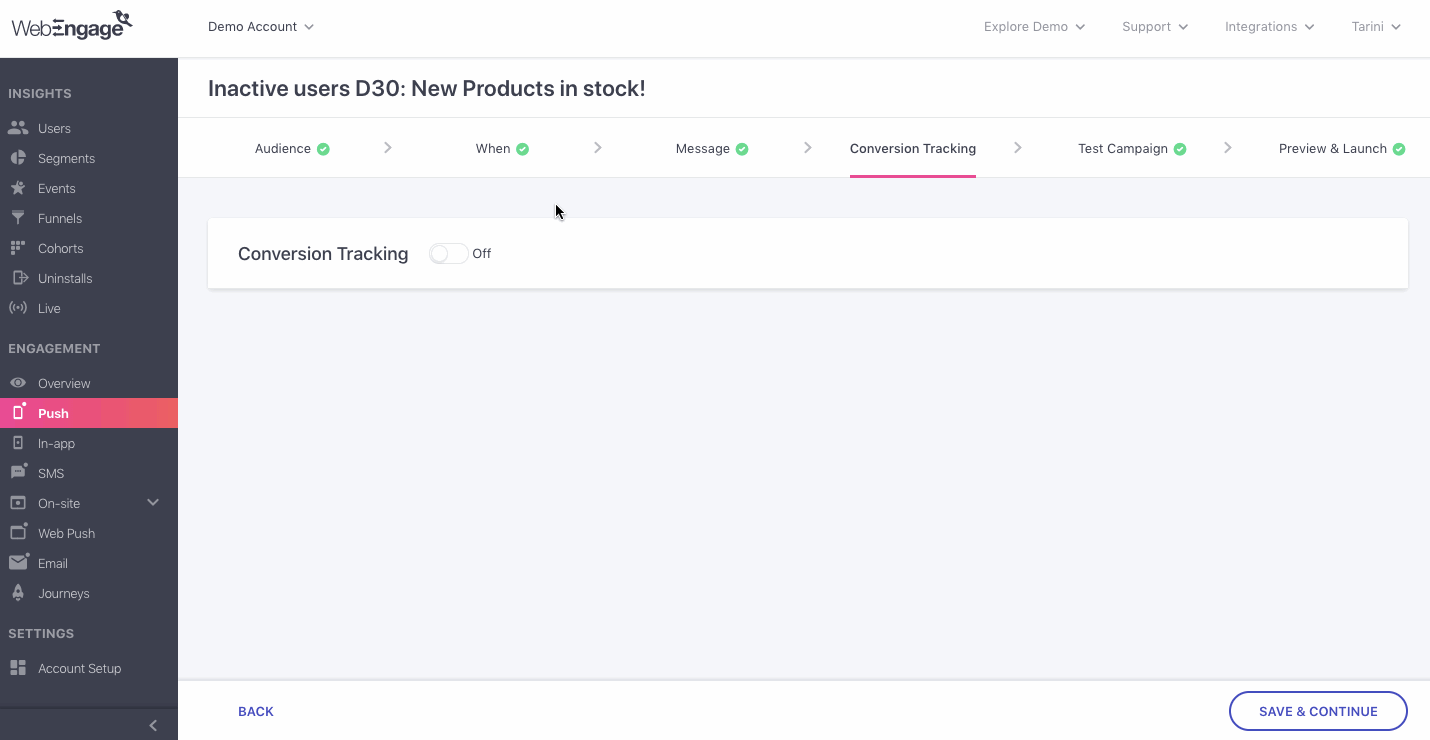

As shown below, on proceeding to this step from Step 3: Message, you will be welcomed by an interface on which Conversion Tracking is disabled.

Click to enlarge

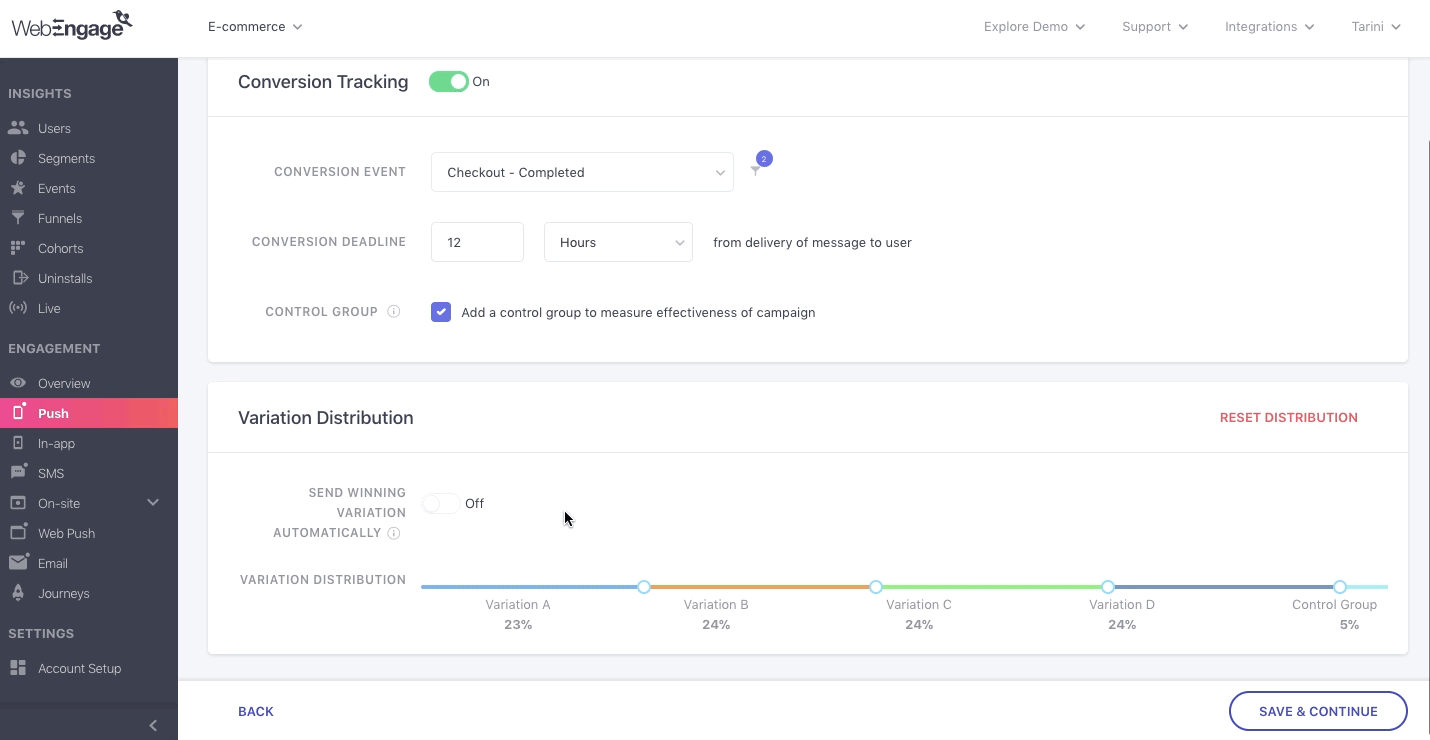

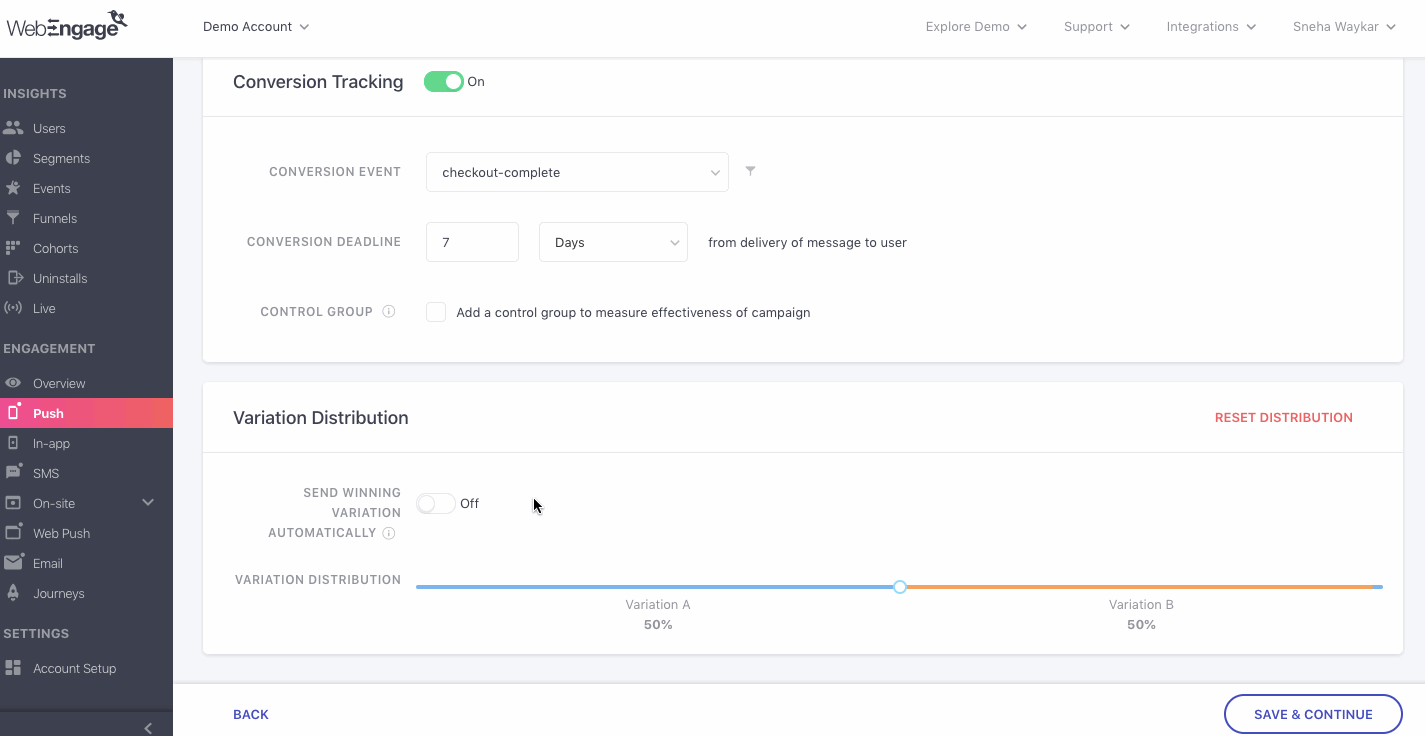

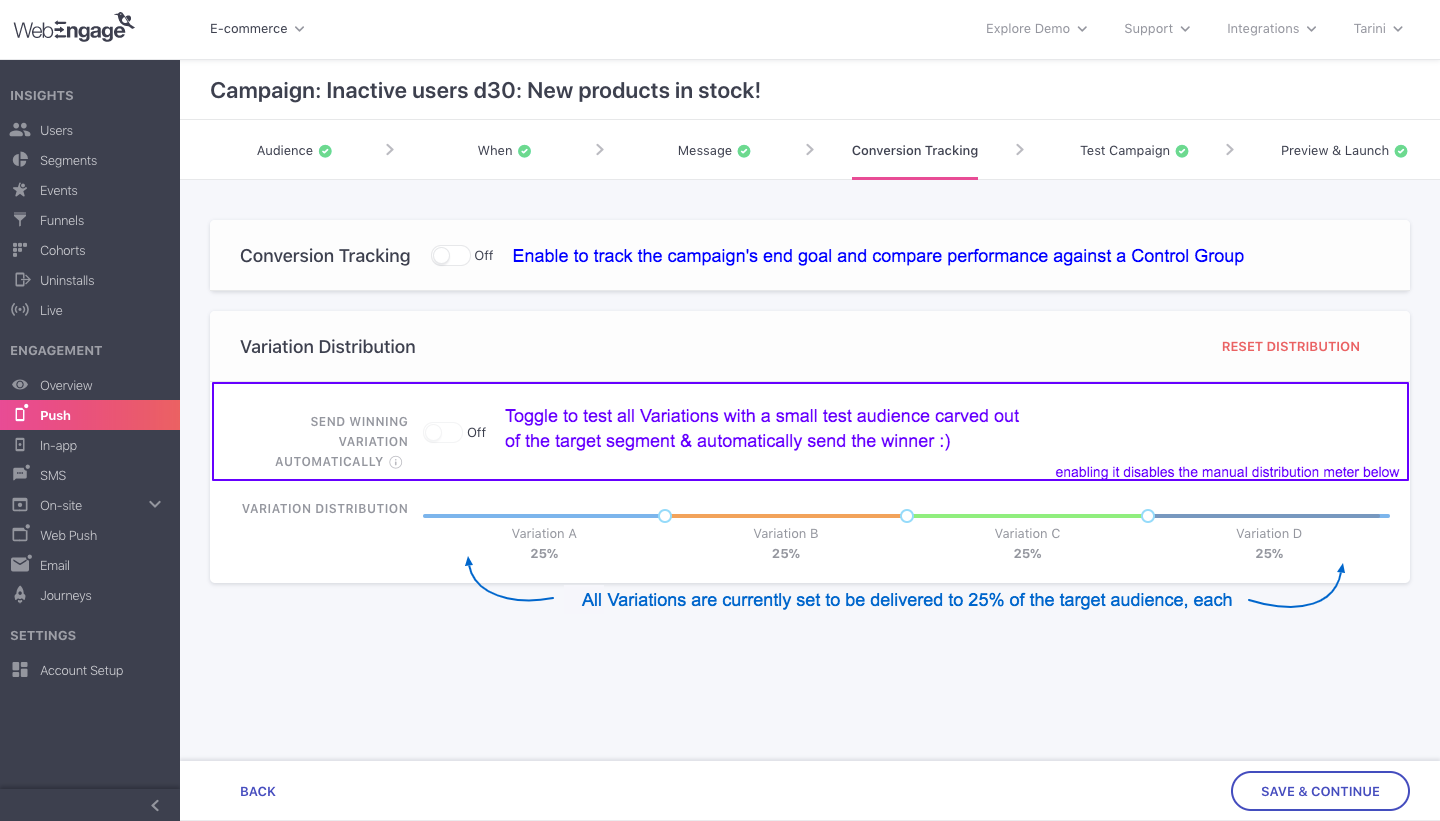

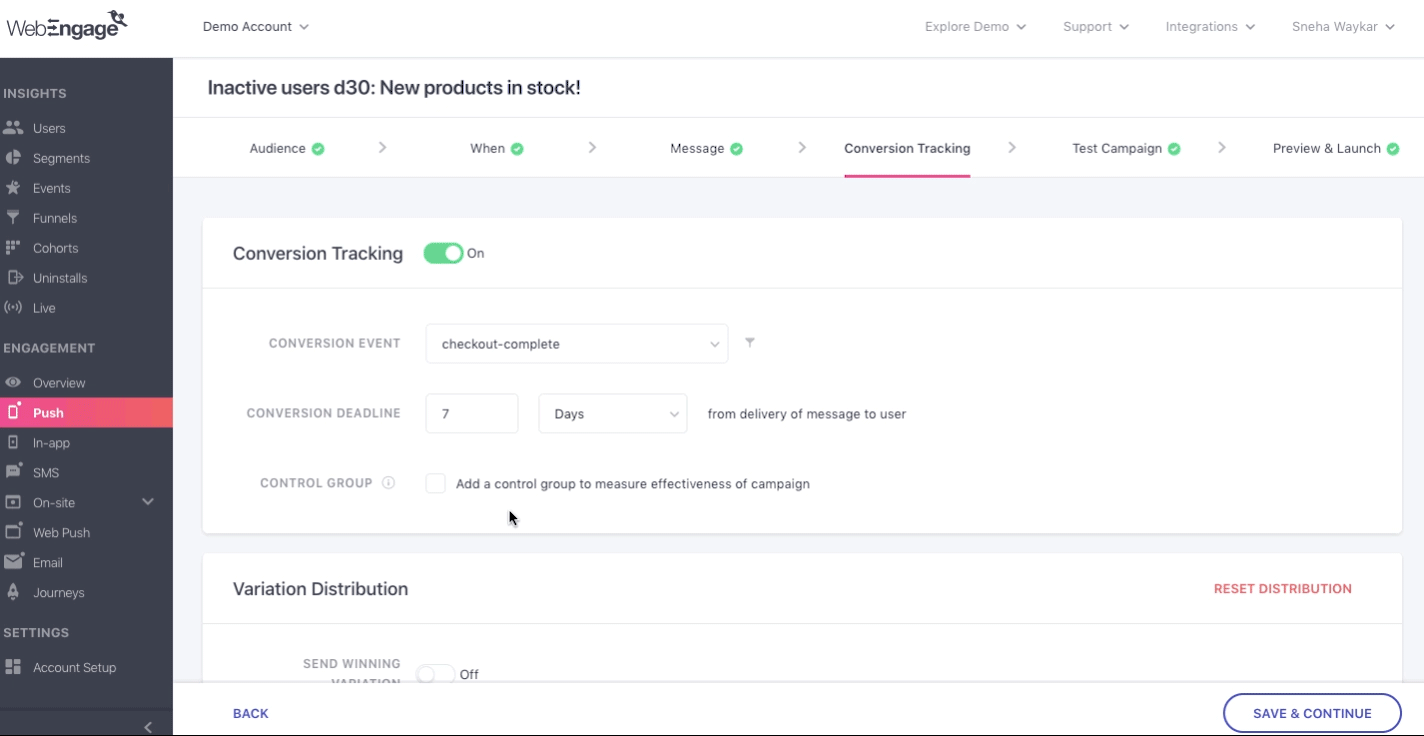

When Multiple Variations Exist

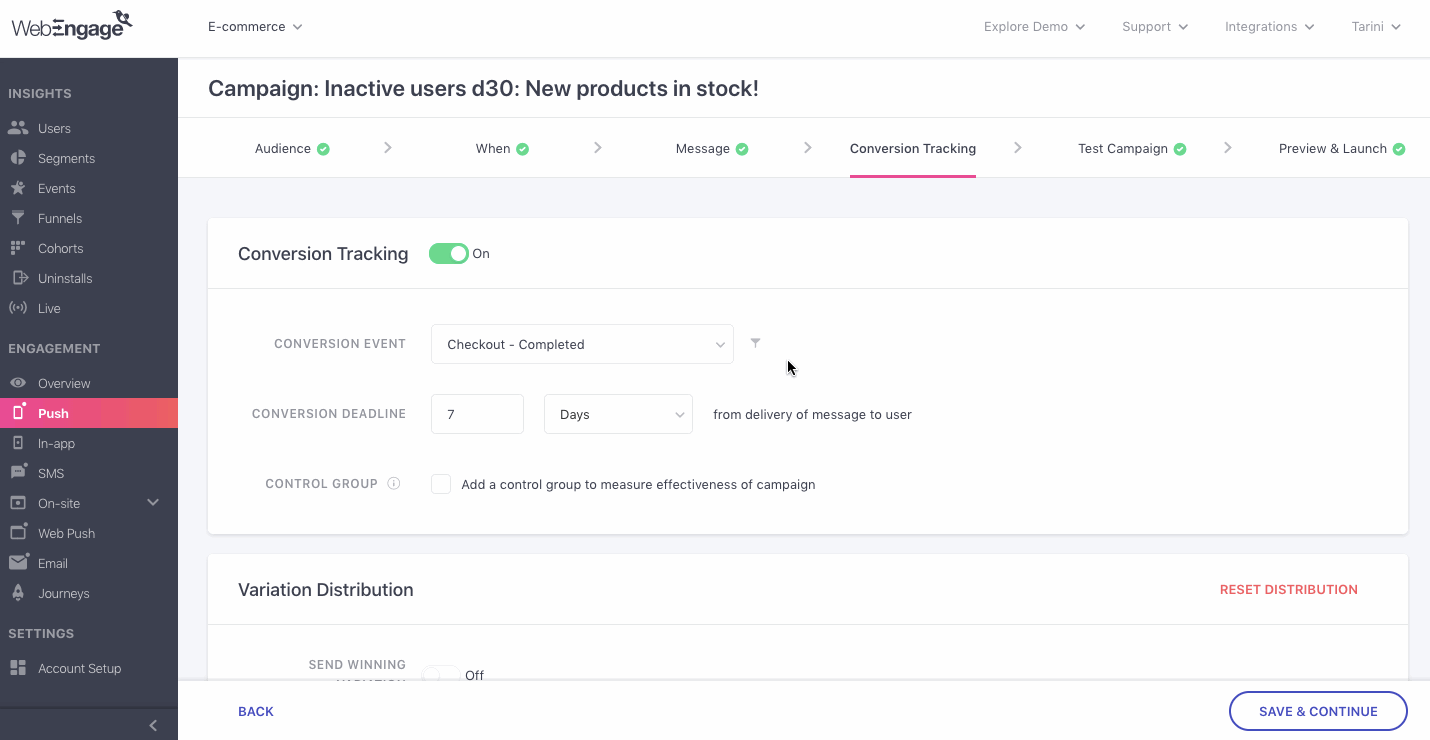

As shown below, on proceeding to this step from Step 3: Message, you will be welcomed by an interface on which:

  • Conversion Tracking is disabled
  • Variation Distribution meter indicates the share of the audience that will receive each Variation

Click to enlarge

Now, let's get you acquainted with the workings of Step 4: Conversion Tracking:

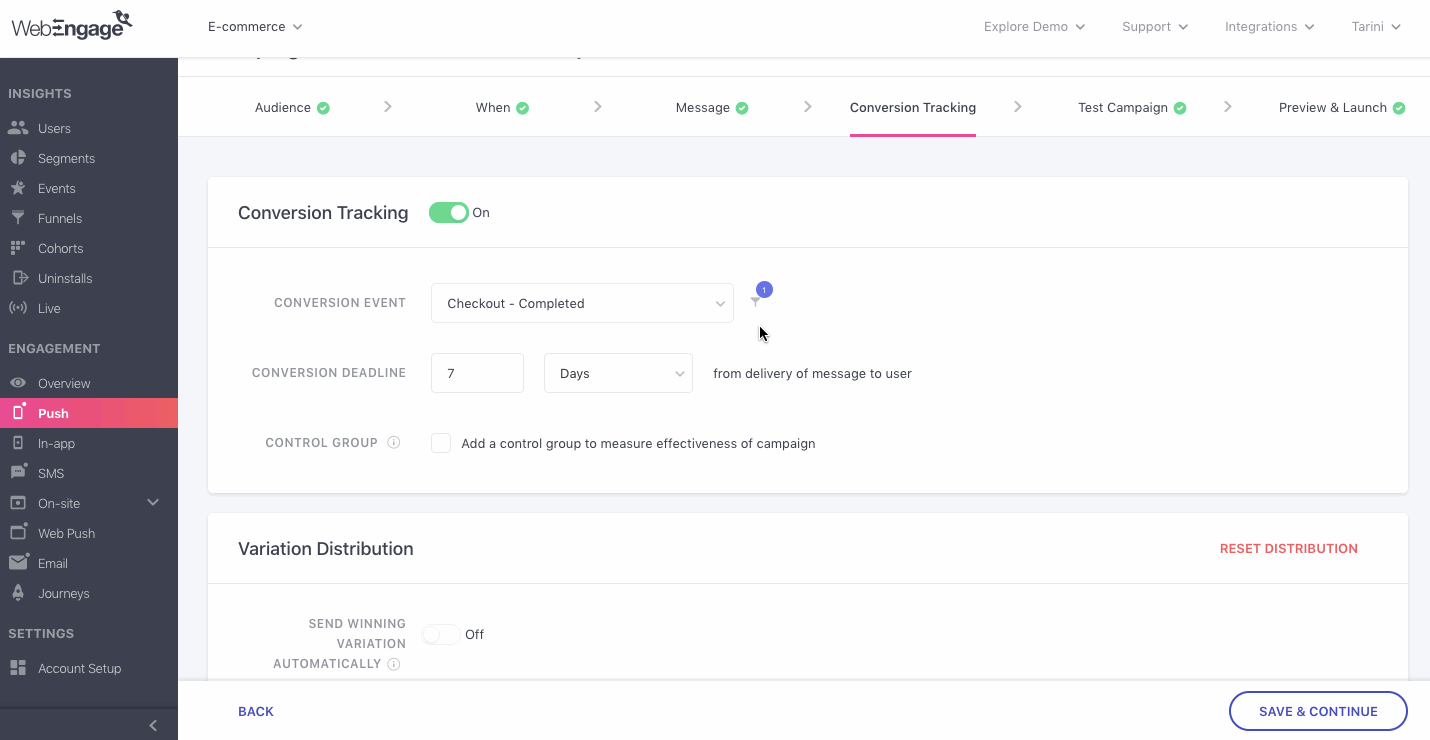

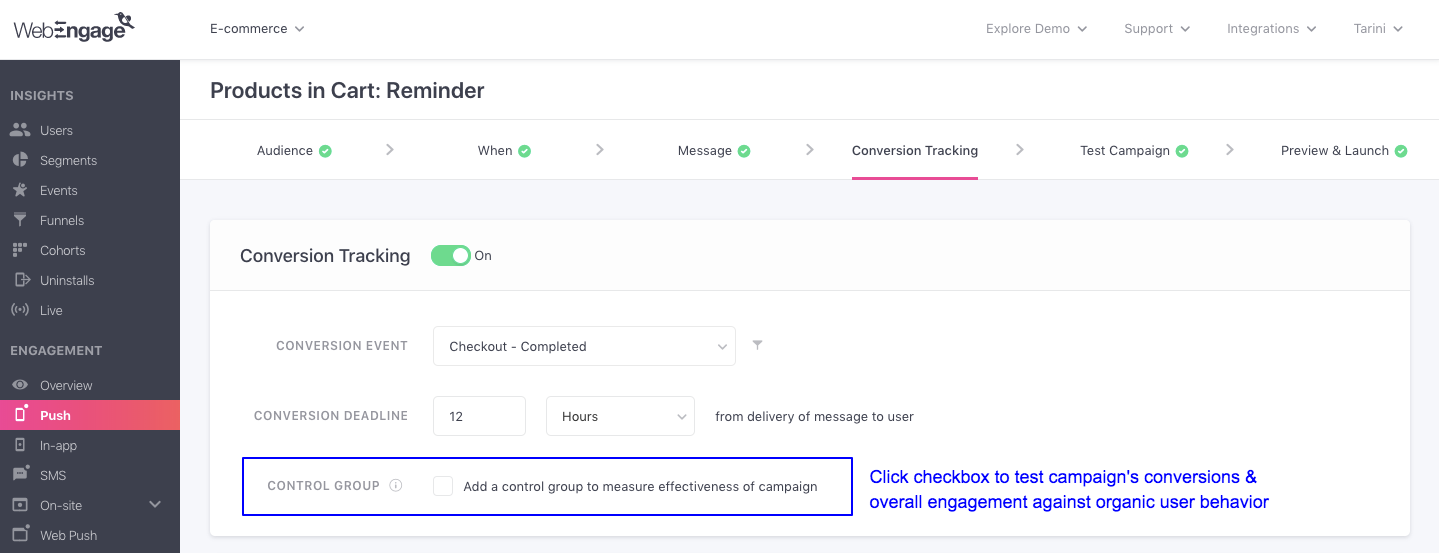

Conversion Tracking

🚧

Must Read

We recommend that you gain a broad understanding of how Conversion Tracking works in your dashboard before proceeding. Doing so will lay a strong foundation for understanding whether or not you need to enable Conversion Tracking for the campaign and its impact on Revenue Tracking.

By default, Conversion Tracking is disabled for all Push campaigns. As shown below, you can use the toggle switch to enable it.

Step 1: Select a Conversion Event

The term, Conversion Event is an alias that helps you identify the event you expect users to perform after receiving the Push Notification.

Click to enlarge

As shown above, you can choose from a list of all the Custom Events being tracked for your account to specify the campaign's conversion goal. For example, we have specified the campaign's conversion goal as the custom event, Checkout - Completed.

πŸ“˜

The following options can be selected here:

  • Custom (all the custom events being tracked for your account)

  • System (Session Started, User Login)

πŸ‘

Pro Tip

We recommend that you map all the Custom Events, that record the occurrence of a monetary transaction in your app, as Revenue Events in your dashboard. This will help ensure that selecting the respective events as the Conversion Event of a campaign helps you track Conversions and Revenue for the campaign and its channel :)

Step 2: Add Attributes to the Conversion Event

Depending on the end goal of the campaign, you can choose to narrow down the scope of conversion to a specific action like Puma Leggings Purchased, Jimmy Choo Pumps Purchased, Episode 3 Streamed, Chapter 7 Started and so on.

This can be done by adding attribute filters to the selected Conversion Event. Here's how you can go about it:

Click to enlarge

Step 1: As shown above, click on the filter icon placed next to the drop down

  • In doing so, you will be prompted by a pop-up allowing you to select an attribute and specify its value
  • For example, in the above visual, we have filtered the event, Checkout Completed, by the attribute filter, Primary Category which is one of, Women Dresses, Women Jeans, Women Tops & Tees
    • This implies: Only those users who purchase products from one of the mentioned categories will be counted towards the campaign's conversion metrics.

πŸ“˜

The following options can be selected here:

  • Custom (all the custom attributes attached to the custom event selected as the conversion event)

  • Time (Event Time)

  • Location (City, Country)

Step 2: As shown below, click Add Filter to add more attributes to the event

  • You can club multiple event attributes by the AND/OR logic
  • This way only those users who perform the Conversion Event in the context of All/Either attribute filters will be considered towards the Conversion numbers of the campaign

Click to enlarge

For example, in the above visual, we have filtered the custom event, Checkout - Completed by the following attribute filters:

  • Primary Category which is one of, Women Dresses, Women Jeans, Women Tops & Tees
    AND
  • Cart Value is greater than 200 (monetary value of the transaction, irrespective of the currency)
  • This implies: Only those users who purchase products from one of the mentioned categories AND make a total purchase of 200 (as per the account's currency) will be counted towards the campaign's conversion metrics.

🚧

How It Works: Clubbing Event Attributes by AND/OR Logic

AND: Clubbing multiple event attribute filters by the AND logic helps you narrow down the scope of occurrence of the Conversion Event. This means that only those users will be counted towards the campaign's Conversions who perform the Conversion Event in the context of all the event attributes.

OR: Clubbing multiple event attribute filter by the OR logic helps you widen the scope of occurrence of the Conversion Event. This means that users who perform the Conversion Event in the context of any of the specified event attributes* will be counted towards the campaign's conversions.

Step 3: Set Conversion Deadline

The Conversion Deadline is a duration defined by you that tells us when to stop tracking conversions for a campaign.

  • This means that once your campaign is delivered, we will track users who perform the Conversion Event in the context of its attribute filters (if any), only till the specified Conversion Deadline.

Click to enlarge

As shown above, by default, a Conversion Deadline of 7 days is set for all campaigns. You can choose to specify a custom duration in Hours or Days, as per the campaign's end goal.

For example, in the above visual, we have defined a deadline of 12 Hours for the Conversion Event, Checkout - Completed.

🚧

Related Read

List of all the Conversion metrics and Performance Indicators tracked for Push campaigns

Step 4: Enable Control Group (Optional)

Click to enlarge

A Control Group is a small portion of the target audience of a campaign that is randomly selected, representing the behavior and preferences of the entire segment, and does not receive the campaign.

An optional but recommended step, adding a Control Group to the target audience allows you to compare the campaign's performance against the organic behavior of Control Group users. This makes for the perfect benchmark to assess the true impact of the campaign on influencing user behavior.

🚧

Must Read

Why you should (almost) always use Control Group to measure the effectiveness of your campaign and how it works in your dashboard

Depending on your Variation testing settings, the campaign will be tested against the Control Group in either of the following ways:

1. When Send Winning Variation is Enabled

As shown below, we will automatically divide the Test Audience equally amongst all the Variations and Control Group.

Click to enlarge

  • The winning version will be identified only on the basis of the Conversion rate achieved by each. This is because users of a Control Group do not receive any messages, deeming Conversions the only criteria that can help us compare the impact of each Variation and organic user behavior.

  • If the Control Group achieves a higher Unique Conversion rate within the Test Time then it will be determined as the winner. As a result, the campaign will not be sent to its target audience.

🚧

Skip to: How to set up Send Winning Variation Automatically for testing:

2. When Send Winning Variation is Disabled

You can manually specify the share of users that will receive each Variation and those that will be included in the Control Group.

Step 1: Click on the checkbox to carve out a Control Group from the campaign's target segment.

  • In doing so, a Control Group of 5% (users) is added to the Variation Distribution meter, as shown below.

Click to enlarge

Step 2: Specify the share of Control Group

  • As shown above, using the slider you can increase or decrease the percentage distribution as per your test goals (we recommend a minimum Control Group of 10% to ensure a fair representation of the campaign's target audience).

  • For example, in the above visual, we have divided the target audience equally amongst 4 campaign Variations and the Control Group (20% each) to ensure that the latter represents a fair share of the audience.

🚧

Skip to: How to set up Variation Distribution manually to test and identify a winning version of the Push Notification

Variation Distribution (Multivariate Testing)

If you have created multiple versions of the Push Notification at Step 3: Message, then you can choose to automate the testing process by enabling Send Winning Variation Automatically. Doing so will allow you to test all the Variations(and Control Group if enabled) with a smaller test audience and we will automatically send the winning variant to the entire target audience. (detailed read)*

However, you can opt to test the Variations and Control Group manually if you are unable to automate testing due to the small size of the target audience (less than 2,000 users) of a One-time or Recurring campaign. Or if you are unwilling to test a Triggered campaign with a minimum of 500 messages.

Send Winning Variation Automatically

🚧

Must Read

Depending on the campaign type selected when you initiated creation, the steps of configuring automated variation testing vary:

Testing a One-time Campaign

Given the short lifespan of one-time campaigns, we suggest that you launch the campaign well in advance for testing, and schedule it for delivery at the most viable time slot (as suggested by the channel's engagement trends). Doing so will ensure that your users receive the most effective version of your campaign at a time that records the highest engagement rate.

Click to enlarge

Step 1: Specify Size of Test Audience
You can choose to test the Variations and Control Group (if added) with 5% to 25% of the campaign's entire target audience. As shown above, we have chosen to treat 15% of all users as the Test Audience.

Step 2: Define Time to Test

A custom test duration can be specified in Minutes or Hours. As shown above, we have specified a test duration of 8 Hours. This means that the impact of all the message Variations and organic behavior of the Control Group (if added) will be tracked for 8 Hours, after which we will determine a winner.

Step 3: Select Win Criteria

The Win Criteria is a performance indicator that helps us determine a winning Variation according to the campaign's end goal. As shown above, it can be defined as Clicks or Conversions, as per your needs.

🚧

Quick Read: How automated variation testing works for one-time campaigns

Testing a Triggered Campaign

Triggered campaigns are on-going cycles of communication that are sent to users only when they perform a certain action or Event. Thus, the most scientific way to test Variations of a triggered campaign is by ensuring that a significant number of messages are delivered before we draw a comparison.

Step 1: Specify Size of Test Audience

The Test Audience can be defined only in terms of the number of messages delivered. This means that Variation testing will continue until the specified number of messages have been successfully delivered.

As shown below, we have specified that a minimum of 1500 messages must be triggered to users to identify a winning version. This means that all the Variations will be equally divided amongst the specified number.

Click to enlarge

Step 2: Select Win Criteria

The Win Criteria is a performance indicator that helps us determine a winning Variation according to the campaign's end goal. As shown above, it can be defined as Clicks or Conversions, as per your needs.

  • Once we identify a winning Variation, it will be sent as the only campaign to all the subsequent users who perform the trigger event.

🚧

Quick Read: How automated variation testing works for triggered campaigns

Testing a Recurring Campaign

If you choose to create a Recurring campaign, then the entire first run of the campaign will be considered as its Test Audience by default.

  • We will calculate the test results 1 hour before the second run of the campaign to identify a winning variation.
  • A winning Variation will be determined as per the Win Criteria and will be sent as the only campaign to all users from the second run. onwards.

Thus, as shown below, just define the Win Criteria (Clicks or Conversions), we will take care of the rest!

Click to enlarge

🚧

Quick Read: How automated variation testing works for recurring campaigns

Manual Distribution

If you are unable to set up Send Winning Variation Automatically due to the small size of the target audience (less than 2,000 users) of a One-time or Recurring campaign, or if you are unwilling to test a Triggered campaign with a minimum of 500 messages, then you can choose to test the Variations manually.

Click to enlarge

As shown above, all the Variations created in Step 3: Message are equally divided amongst the entire target audience. Using the slider, you can choose to specify a custom share for each Variation and Control Group, if enabled.

🚧

Quick Read: How manual Variation Distribution works

Step 5: Test Your Campaign (Recommended)

Iron out all the creases in your Push Notification by testing it with internal team members for maximum impact!

Click to enlarge

While this is an optional step, we recommend that you test all campaigns that contain images, buttons, deep links and elements of personalization in the message to ensure that everything's in order. This can be easily done by creating a Test Segment and adding all the stakeholders to it.

However, you can always choose to skip it by clicking the Skip Test & Proceed button, as highlighted above. Doing so will take you to the final step of campaign creation - Step 6: Preview & Launch.

Now, let's show you how you can test all the message Variations:

Step 5.1.: Select a Variation

Click to enlarge

As shown above, by default, Variation A is selected against the field - Variation To Test.

However, if you have created multiple Variations then you can test each one by sending them consecutively to a Test Segment. For example, in the visual above, we have chosen to test Variation D of our Push Notification.

Step 5.2.: Select Test Segment

Click to enlarge

As shown above, all the test segments created while testing a campaign, for any channel (Push, SMS, Web Push, Email, WhatsApp), can be found under the dropdown, Send Test Message To, along with details of all its users. For example, in the above visual, we have chosen to test Variation D of the campaign with the segment, Test - Content Team.

Step 5.3.: Personalize Test Message

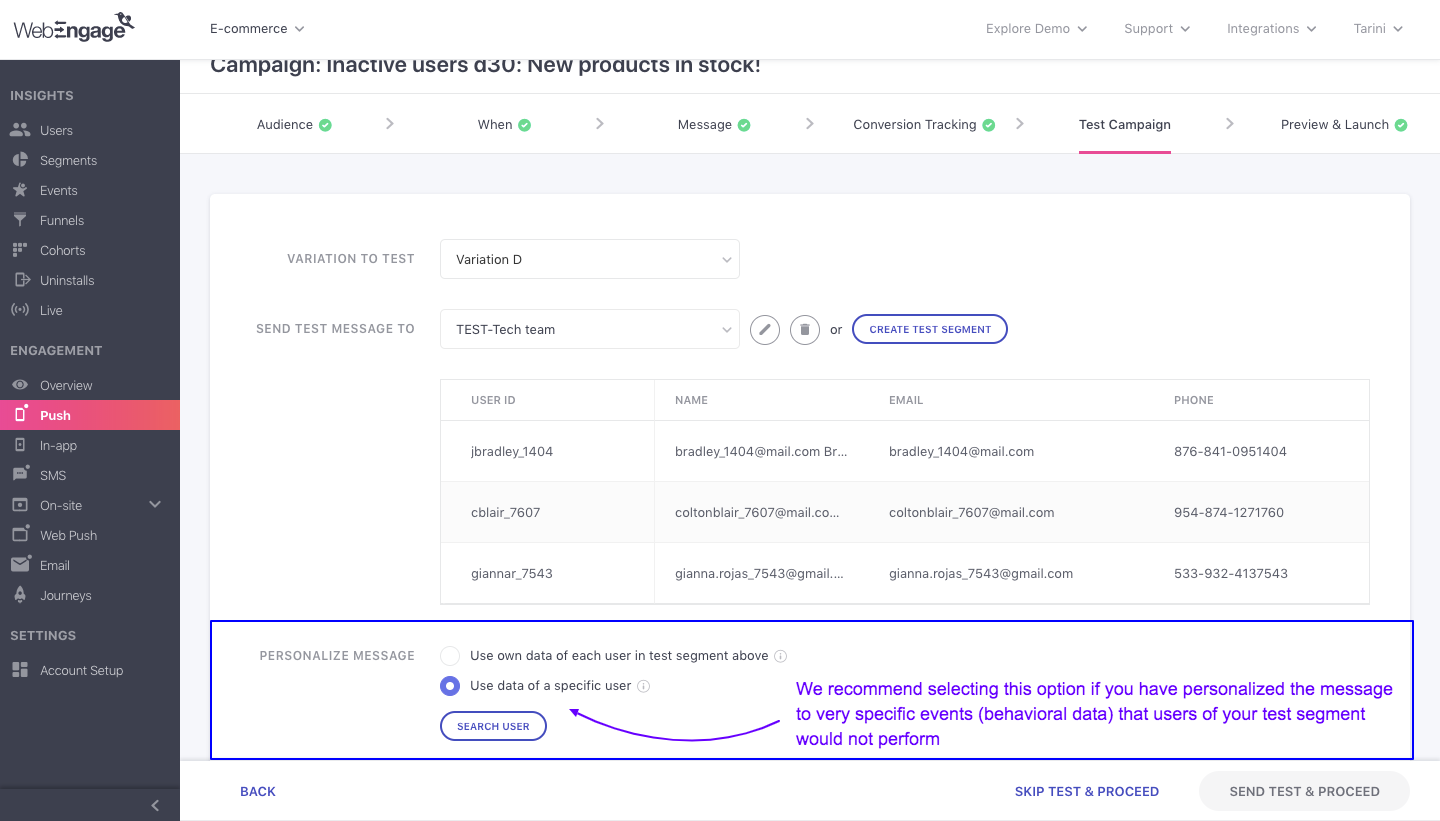

Click to enlarge

As highlighted above, you can test personalization in two ways:

  • Use own data of users included in the test segment to receive a message personalized to your user profile
  • Use data of a specific user to receive the exact message that the selected user would receive
    • On selecting this option, you will be prompted to search for a user in your database.
    • We recommend selecting this option if you have personalized the message to a very specific set of custom events or users attributes that are unlikely to be available for an internal team member.

Here's how you can personalize the message to a specific user:

Click to enlarge

Step 1: Click on the Search User button

  • In doing so, you will be prompted to search your user base.

Step 2: Add the User ID, preferably of a power user included within the target audience

Step 3: Click the Search and Populate Values button

  • In doing so, you will be shown a summary of the values against the respective attributes and events included in the message. This is a good way to ensure that all the values are available for the user. If not, then you can enter an alternate User ID to personalize the message.
  • Next, click the Save and Return to Test Campaign button to proceed with the selected user.

Step 4: Click the Send Test & Proceed button to test the campaign.

Creating Test Segment

🚧

Prerequisite for adding internal team members to a test segment

As you are aware, all the data stored in your WebEngage is either gleaned from your integrated apps and website or can be manually uploaded as a CSV file. Thus, it may so happen that details of internal teammates may not be readily available in your dashboard (even if they are account admins).

Hence, we recommend that you request teammates to sign up on your platform so that we can populate their User Profiles with their personal and behavioral data. Doing so will come in handy when:

Step 1: Name Your Test Segment
As shown below, the segment's name is prefixed with 'TEST -' and can be customized henceforth. For example, we have named our segment, TEST - Design team.

Click to enlarge

Step 2: Add Internal Users Through Filters

As shown above, you can segment internal members by manually adding their User ID, Email Address or Phone Number (the chosen filter will depend on the Unique Identifier or the parameter that helps identify users in your WebEngage account, as specified by you).

For example, in the above visual, we have selected User ID as the filter and have toggled between the List of Users (nested under Users) and the campaign creation interface to identify and add the respective User IDs to the test segment, Test - Design Team.

Step 3: Click on the Create Test Segment button.

πŸ‘

Pro Tip

We recommend that you leverage the diverse device preferences of your teammates to test the Push Notification on multiple devices (mobile, tablet), varying screen sizes, app versions and OS (Android, iOS) to ensure that it looks stunning all across!

Editing Test Segment

Step 1: As shown below, click the Edit icon placed next to the field - Send Test Message To to edit the users included within the selected Test Segment.

  • In doing so, you will be prompted by a pop-up, pre-populated with details of existing users.

Click to enlarge

Step 2: As shown above, make all your changes and click the Update Test Segment button to proceed. For example, we have added new members to the segment, TEST - Content team.

Deleting Test Segment

Click to enlarge

Step 1: As shown below, click the Bin icon placed next to the field - Send Test Message To to delete the selected Test Segment.

  • In doing so, you will be prompted to confirm your decision.

Step 2: Click the Delete Segment button on the pop-up.

  • In doing so, a notification will pop-up on the bottom right confirming the deletion.

Step 6: Preview & Launch

Once you are satisfied with the test results, it's time to send the Push Notification to your users! But before that, we recommend that you conduct a quick preview of the campaign's message and settings to ensure that it's in line with your end goal.

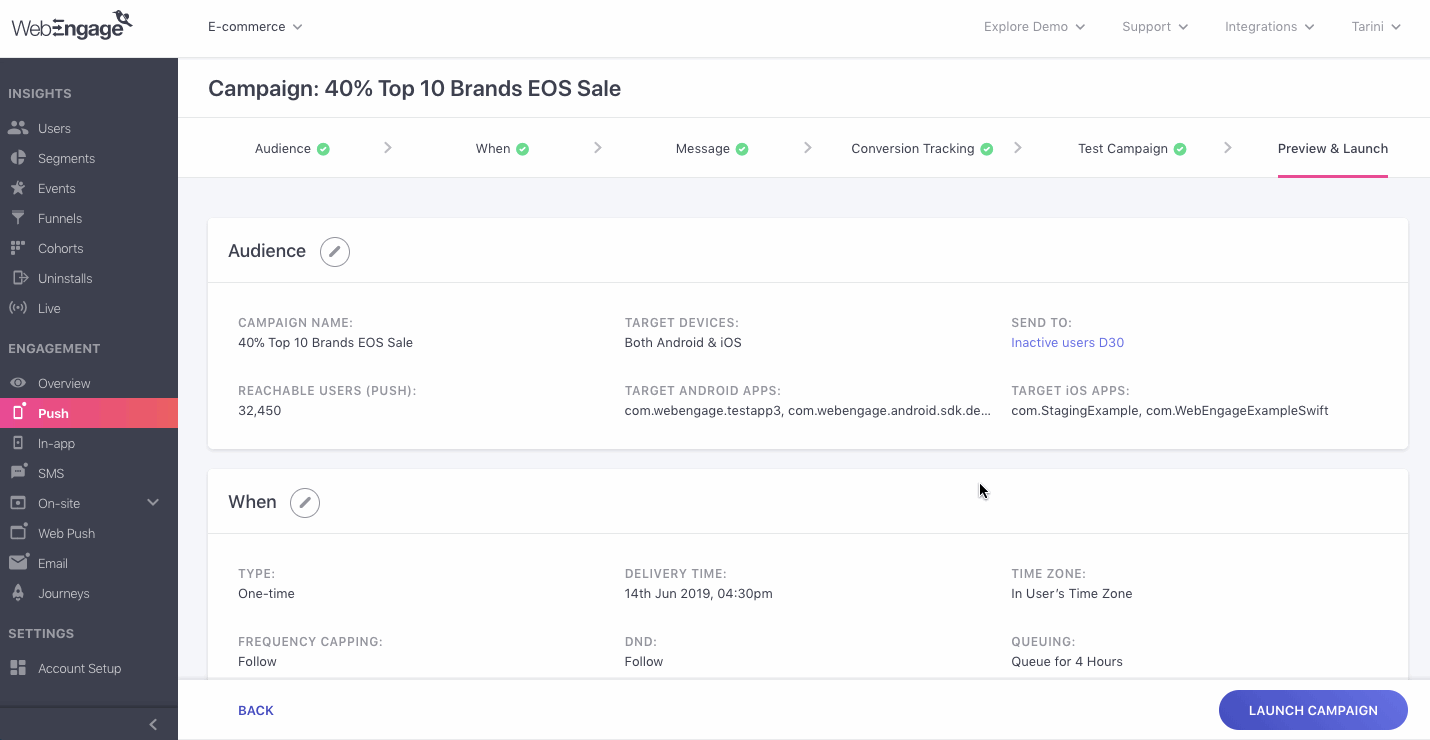

Click to enlarge

As shown above, the last step of campaign creation presents a snapshot of its:

Edit Campaign Before Launch

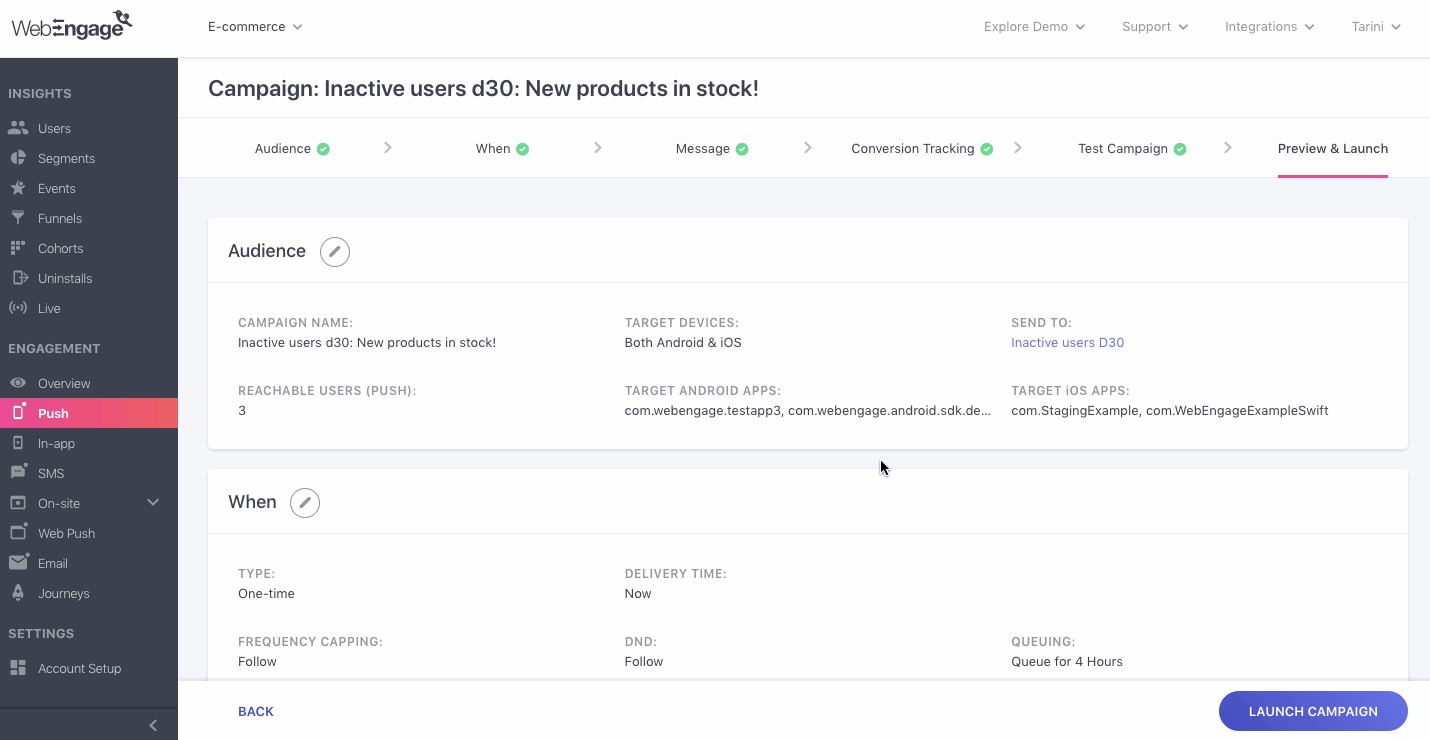

You can always choose to edit a step by clicking on the Pencil icon, placed next to each step's header. In doing so, you will be directed back to the step, as shown below.

Click to enlarge

Simply make your edits, save them, toggle back to Step 6: Preview & Launch to continue your review, as shown above.

Saving Campaign as a Draft

If you're unsure or are awaiting approval of the campaign's contents, then you can simply go back to the central hub of Push after saving your settings, as shown below. Doing so will automatically save the campaign as a Draft, allowing you to edit or launch it anytime you like.

Click to enlarge

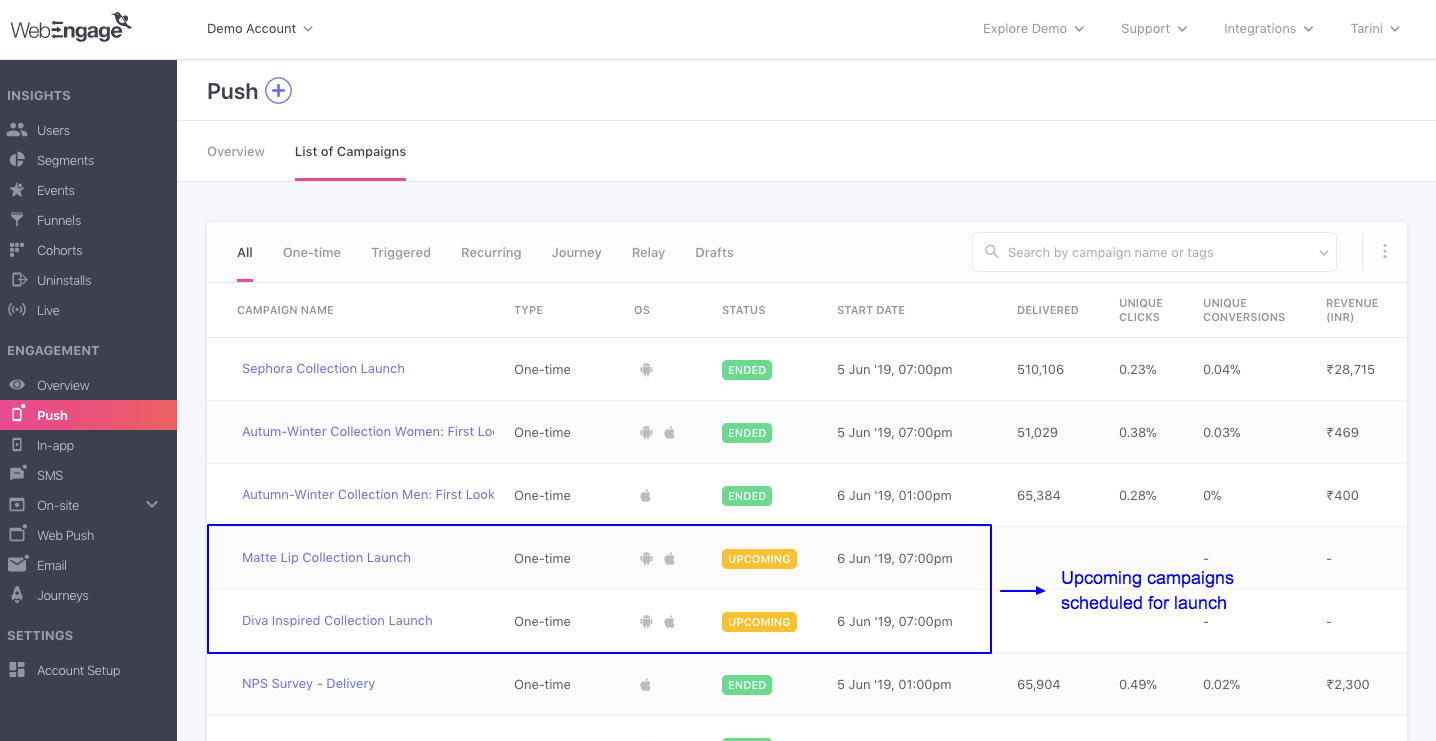

Launching Scheduled Campaigns

If you have chosen to schedule/ start the campaign at a later date-time, then on launching it, its status will indicate Upcoming in Push, List of Campaigns, as shown below.

Click to enlarge

What Happens After a Campaign is Launched?

Once launched, messages are sent to users included in the target audience as per the campaign's settings. Throughout it's run time, the campaign's status will indicate Running (in Push, List of Campaigns) until it ends or is manually paused by you.

1. Analyzing Campaign's Performance

You can analyze each campaign's real-time impact on user engagement, conversions, and revenue by accessing its Overview section through the List of Campaigns of Push, as shown below.

Click to enlarge

2. Modifying the Campaign

Further, you can always choose to Edit and Pause an Upcoming or Running) campaign if you feel the need to. (Step-by-step guide on modifying Push campaigns)

3. Scheduling Campaign Reports

Once you have launched a campaign, you easily monitor its performance through scheduled reports, delivered straight to your (& your teammate's) inbox! This can be configured through the campaign's analysis section. Here's how you can go about it.

Further, you can also schedule Channel-wise reports to monitor the overall performance of Push through the Settings section of your account. Here's how you can go about it.

We hope this has enabled you to create various types of campaigns, track conversion, automate multivariate testing and test your campaign internally before launch. Please feel free to drop in a few lines at [email protected] in case you have any related queries or feedback. We're always just an email away!

Updated 2 months ago


So, what's next?

Let's show you how you can analyze Push campaigns to measure their impact on user engagement, conversions, and revenue.

Analyzing Push Campaigns

Creating Push Campaigns


Step-by-step guide on how you can create Push Notifications in your dashboard

Suggested Edits are limited on API Reference Pages

You can only suggest edits to Markdown body content, but not to the API spec.
