Creating Transactional Email Campaigns

Step-by-step guide on setting up transactional campaigns in your dashboard

Transactional Emails like Password Reset, Order Confirmation, Payment Invoice and Shipping Notices can achieve an 8 times higher Open Rate compared to regular marketing campaigns! This makes transactional emails the perfect way to subtly reinforce your brand's value proposition. So in addition to conveying information, you can contextually personalize the campaign to include coupons, cross-sell products/services/courses and even build referral loops by incentivizing their next purchase. This is why we bring to you - Transactional Campaigns, your one-stop solution to communicating critical messages instantly!

Simply launch your campaign and set up the Transactional Campaign API for the Campaign ID - we'll personalize the message and send it as soon as the API is triggered. You can sit back and watch the retention metrics go up :)


Must Read

Before you begin creating your campaign, we recommend that you get yourself acquainted with how Transactional Campaigns work in WebEngage. Doing so will help you better understand the steps of creation.

How to Access

As shown below, click the Plus icon placed on the top left in the List of Campaigns or the central hub of Email.

  • In doing so, you will be prompted by a pop-up, allowing you to select the type of campaign you'd like to create.
  • Select Transactional to begin creating your campaign.

Click to enlarge

Now, let's walk you through all the steps of campaign creation.


Please ensure that you have integrated an Email Service Provider (ESP) with your account before proceeding as it enables message delivery to all your users. Here's the integration guide.

Step 1: Configure Basic Info

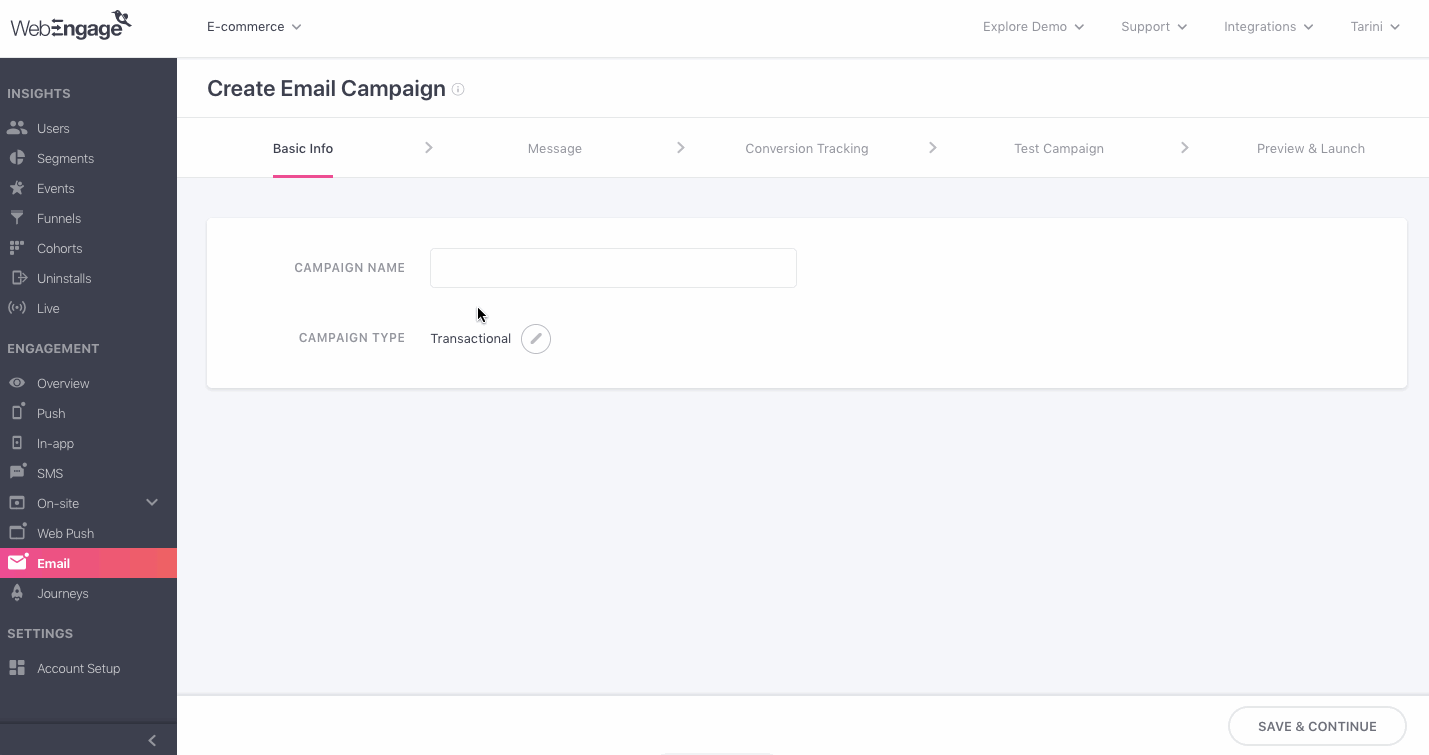

The first step is to give your campaign a unique name that helps you identify its purpose.

  • As shown below, you can click the Edit icon to alter the campaign type selected by you (in case you change your mind!)

Click to enlarge

Apply Universal Control Group


Conditional Option

This is a conditional option which will be shown only if the you have created Universal control group in your account. Click here to know how to create Universal control group.

  • When the box is checked, the campaign will not be sent to users who are part of the Universal Control Group in the segment that is selected.
  • When the box is unchecked, the campaign will be sent to all users that are part of the segment inclusive of the Universal Control Group users.

Step 2: Create the Message

The message creation interface comes loaded with intuitive features like Variations, Drag & Drop Email Editor and Personalized Preview, enabling you to create impactful Transactional Email Campaigns* in minutes.

Let's get you acquainted with each feature:

Create Variations

Variations are just different versions of the campaign's message that facilitate multivariate testing and are referred to in the following manner in your dashboard:

Variation A: The first version of the message.
Variation B: The second version of the message.
Variation C, D, E: Subsequent versions of the message created for testing.


Click to enlarge

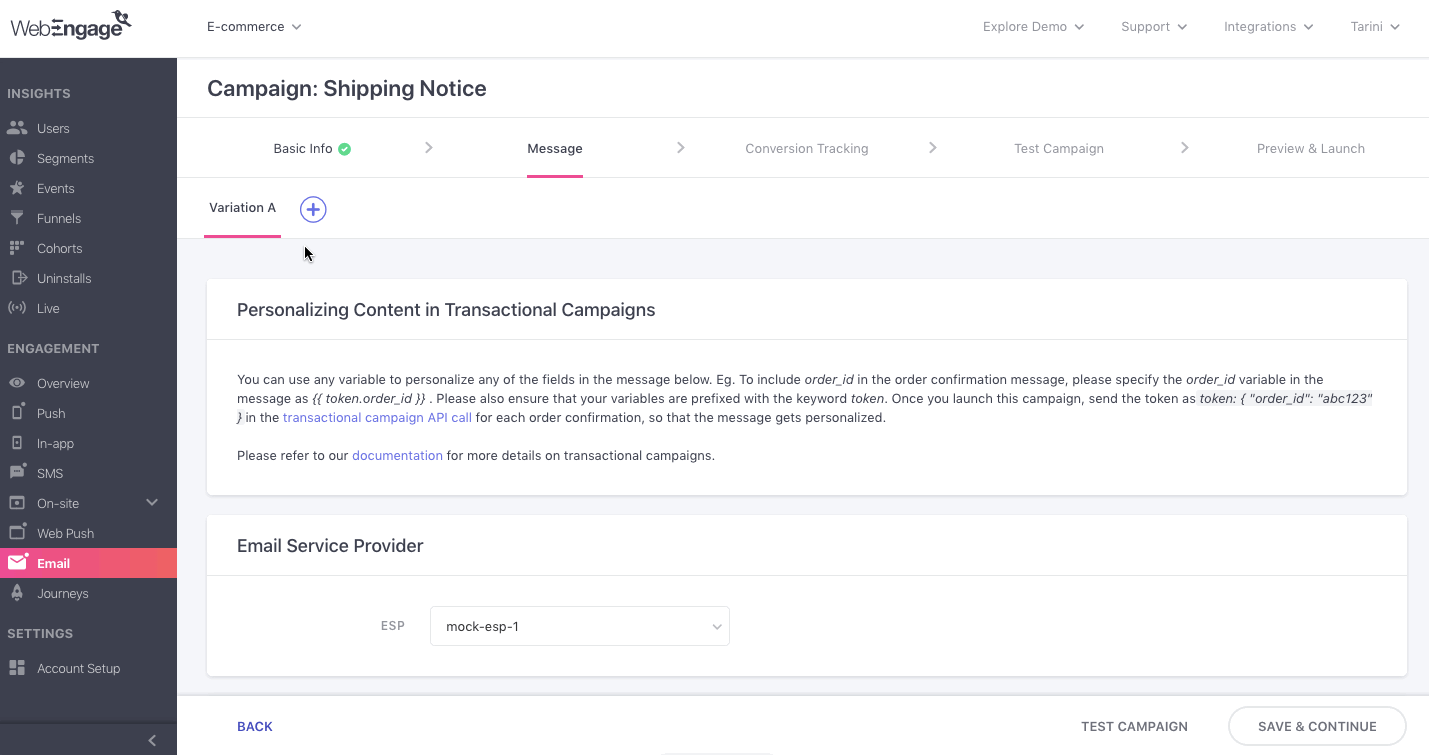

  • As shown above, click on the Plus icon to create up to 5 versions of the message.

    • Select Create New to start building the new Variation from scratch
    • Select Copy from Variation A (or any of the previous versions) to make minor edits to the new Variation
  • Each Variation can be created independent of the other, allowing you to test multiple aspects like its layout, body copy, buttons, links and colors to identify a mix that resonates with your entire target audience. (How to automate Variation testing)

  • The percentage value indicates the share of users that will receive a Variation and can be customized at Step 4: Conversion Tracking.


Pro Tip: Why You Must Always Test Multiple Variations of a Transactional Campaign

Most marketers like you and me would agree that A/B testing marketing campaigns is the best way to determine the exact message that resonates with the target audience. This inherently leads to higher platform engagement, conversions, and revenue.

But can A/B testing the way you 'confirm a purchase' or 'convey a delivery update' help you drive your business goals?


Why? Because most users expect to receive a transactional message each time they interact with your app/website/store or when certain scenarios occur in their lifecycle.

This makes transactional campaigns the perfect opportunity to:

  • build trust in your brand

  • Reinforce the value proposition of your brand in their lives

  • Motivate users to continue their association with you, aka. drive retention

Thus, we highly recommend that you create multiple Variations of your transactional campaign to test and identify a winning version that helps you achieve your business goals.

Select an ESP

While the Email campaign is created and personalized through your dashboard, the actual message is delivered to by an Email Service Provider (ESP). We have partnered with several global ESPs to enable 2-click integration with your WebEngage account. (How to configure an SSP)

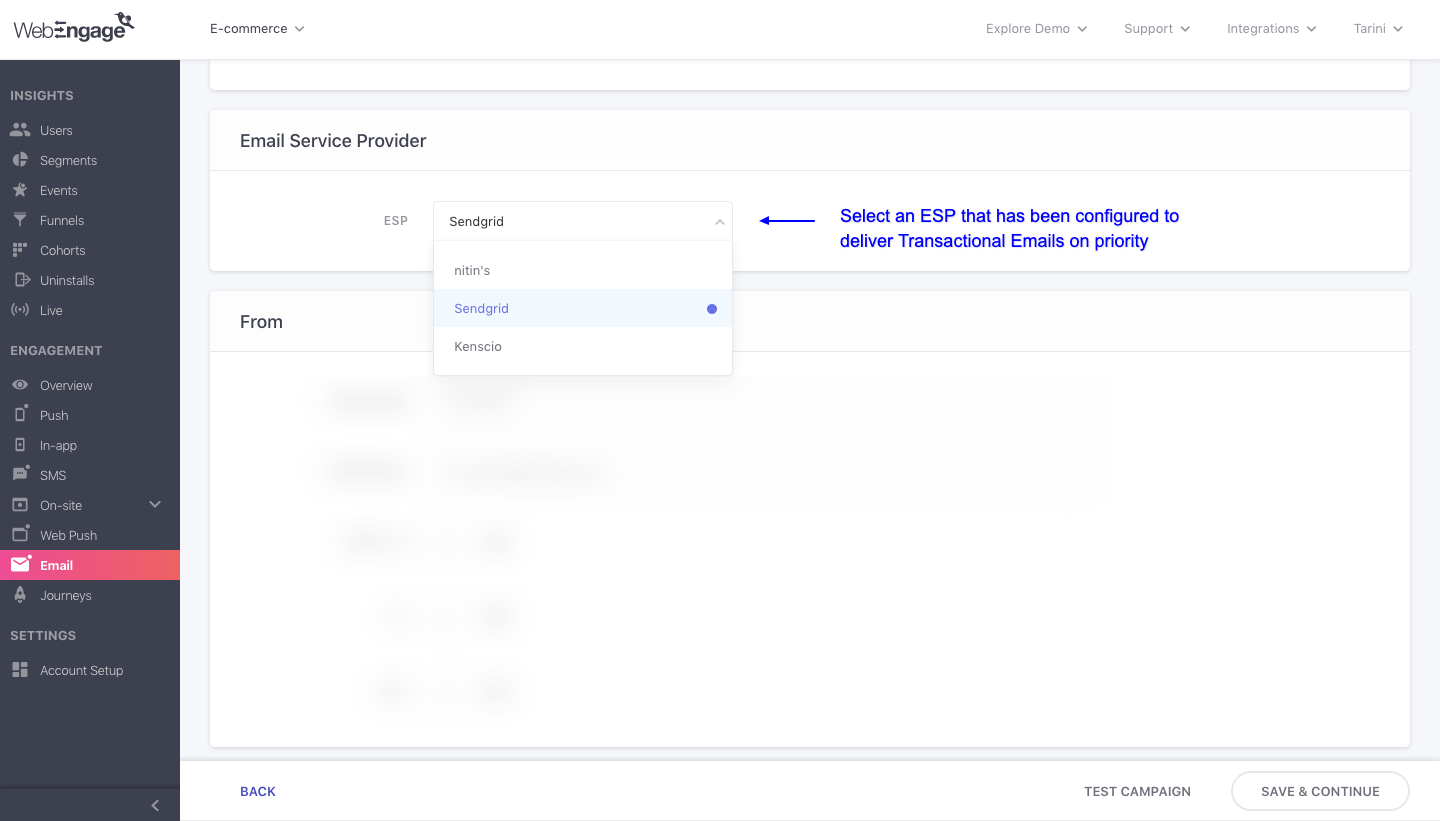

As shown below, use the dropdown to select an ESP through which you'd like to send the transactional campaign.


Click to enlarge

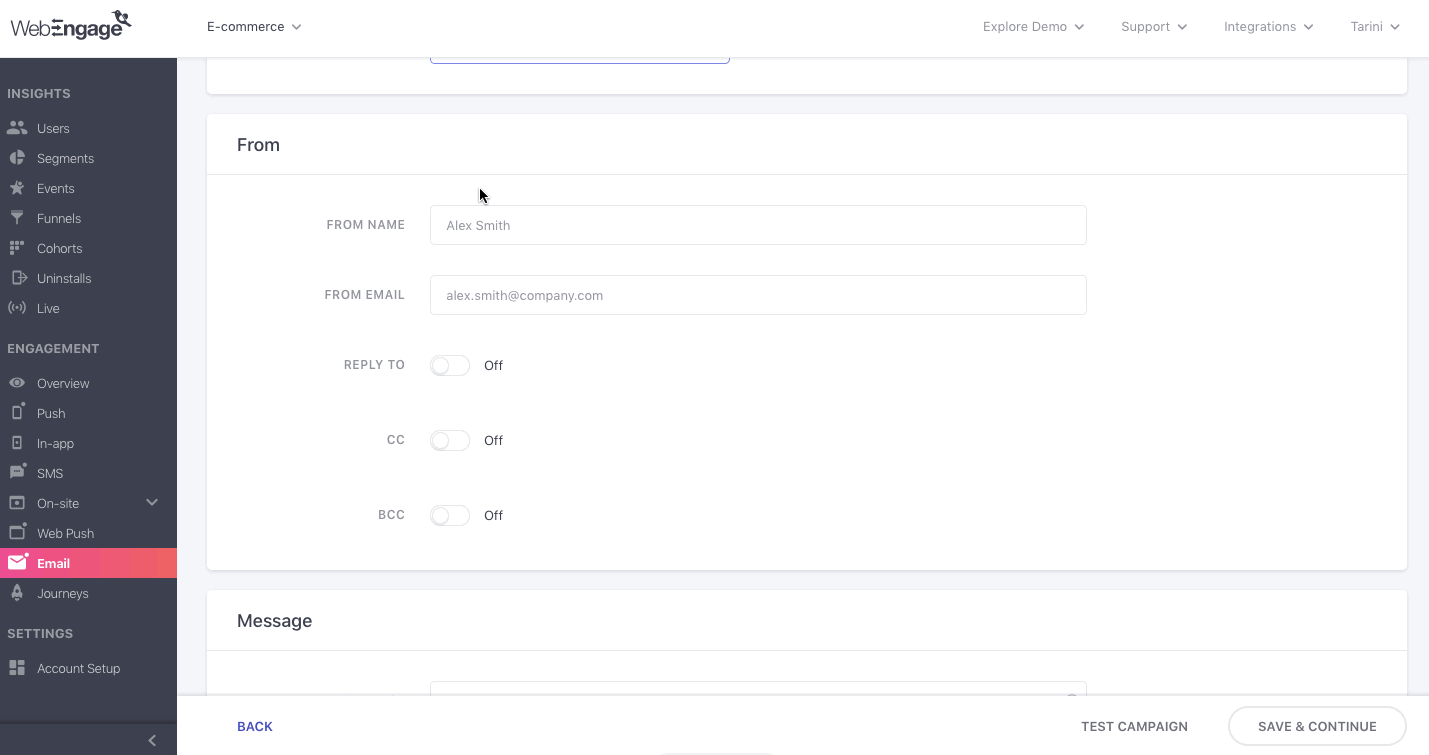

Configure Sender-Receiver Details (From & Reply To)


Click to enlarge

As shown above:

Step 1: Add the Name and Email Address from which you'd like your users to receive the email.

  • We recommend using a Sender Name that easily helps users identify the context like Jake from

Step 2 (optional): Click the toggle switch to enable Reply To and specify the receiving email address.

Step 3 (optional): If you're sending a campaign that requires multiple team members to monitor responses then we recommend that you configure CC and BCC.

  • Click the toggle switch to enable respective fields and add the email addresses.

Personalize Message


Creating the Email Campaign's Body

You can choose to build the message in any of the following ways:

Method 1: Create a Rich Text Message

Method 2: Build a Custom HTML Template from scratch

Method 3: Leverage ready-to-use templates with Drag & Drop Editor

Irrespective of the method you choose, please follow the steps listed below to personalize the text, images, and links.

Transactional Campaigns can be personalized only through the personalization tokens that have been created in your backend. Thus, each time the Transactional Campaign API is triggered for a user, your tech team will need to ensure that values of all the personalization tokens are passed along to your dashboard. This way we'll know which token needs to be replaced with which value, facilitating one-on-one personalization at scale.

Simply add your personalization tokens in the format, {{token.your_personalization_token}} and you're good to go!

Let's go over a short use-case to show you how it works:


E-commerce: Shipping Notice (Out for Delivery Update)

Let's take the example of an e-commerce business. Each time a user makes a purchase, shipping updates are communicated through a series of Emails or Push Notifications (depending on their channel preferences).

In a bid to deliver personalized user experiences across the board, marketers of the platform decided to create a dynamically personalized Shipping Notice Email. They teamed up with their tech team to track the following details as personalization tokens for all their app and website users:

  • User's first name: first_name

  • Auto-generated order ID: order_id

  • Shipping Method selected at checkout: shipping_method

  • Shipping Address specified at checkout: shipping_address

  • Date of delivery: del_date

  • Live status tracking link, auto-generated when order is placed: del_track_link

Here's how they created the Message:


Click to enlarge

As you can see above, we have added a nunjucks code along with the personalization token for displaying the delivery date in a specific format - {{token.del_date | we_date(YYYY-MM-DD)}}.

Hence, each time a shipment is out for delivery, users receive an Email, similar to the one shown below for Andria:


Click to enlarge

Similarly, you can personalize your Transactional Email Campaigns to deliver highly contextual experiences each time.

Personalizing Links

You can easily personalize links (webpages, deep links, images) in any of the following ways:

This method relies on creating a personalization token in your backend that captures the same value as the link's pathname. The idea is to replicate the link structure in your dashboard by adding the personalization token as the path. (detailed read)

All you need to do is - replicate the above link structure in your dashboard. This can easily be done by tracking User ID as the personalization token, user_id.

Here's how you can go about it:

Step 1: Add the parent link - *investapp://evaluation/

Step 2: Add the personalization token, user_id as {{token.user_id}} to the link to replicate the pathname.

Thus, each time a user invests in a plan, they will be directed to their portfolio evaluation section through the personalized deep link - investapp://evaluation/{{token.user_id}}.

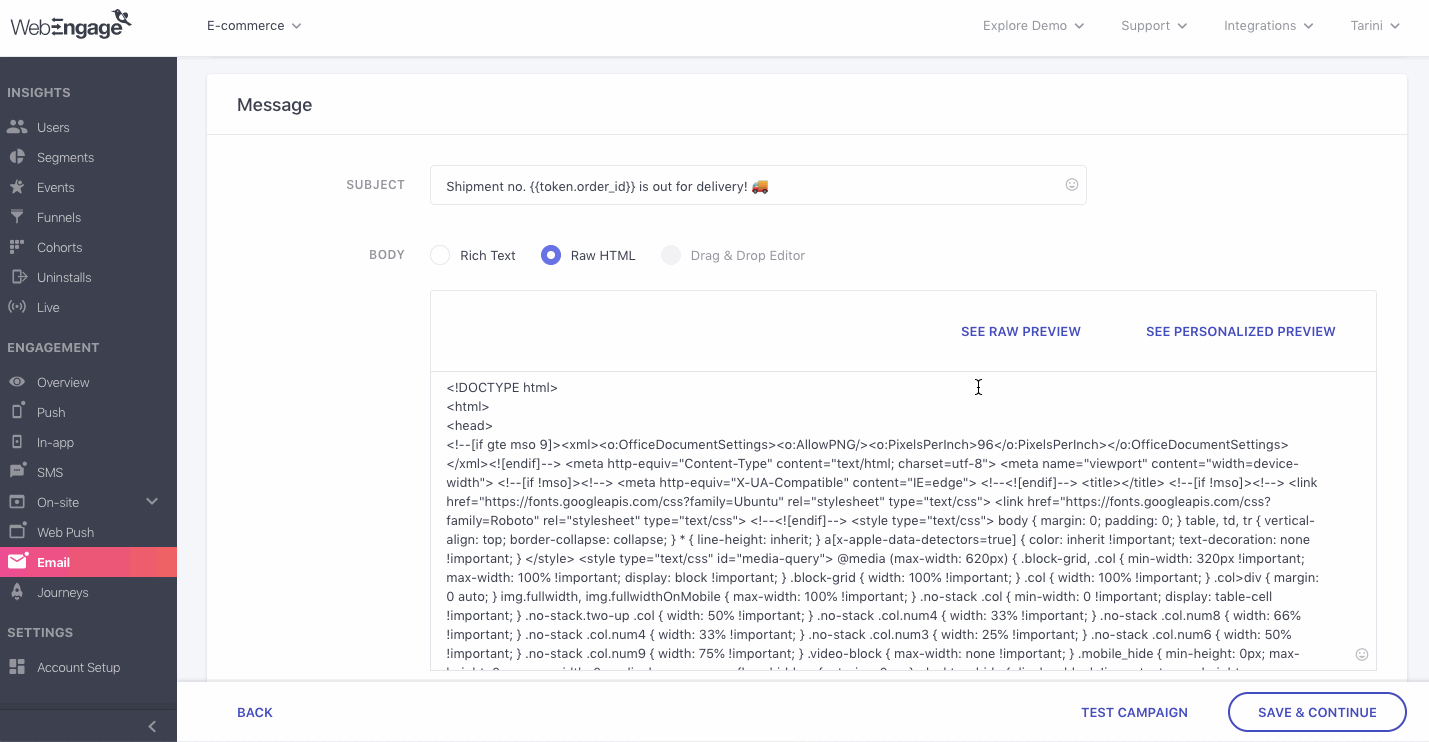

Preview Message


Click to enlarge

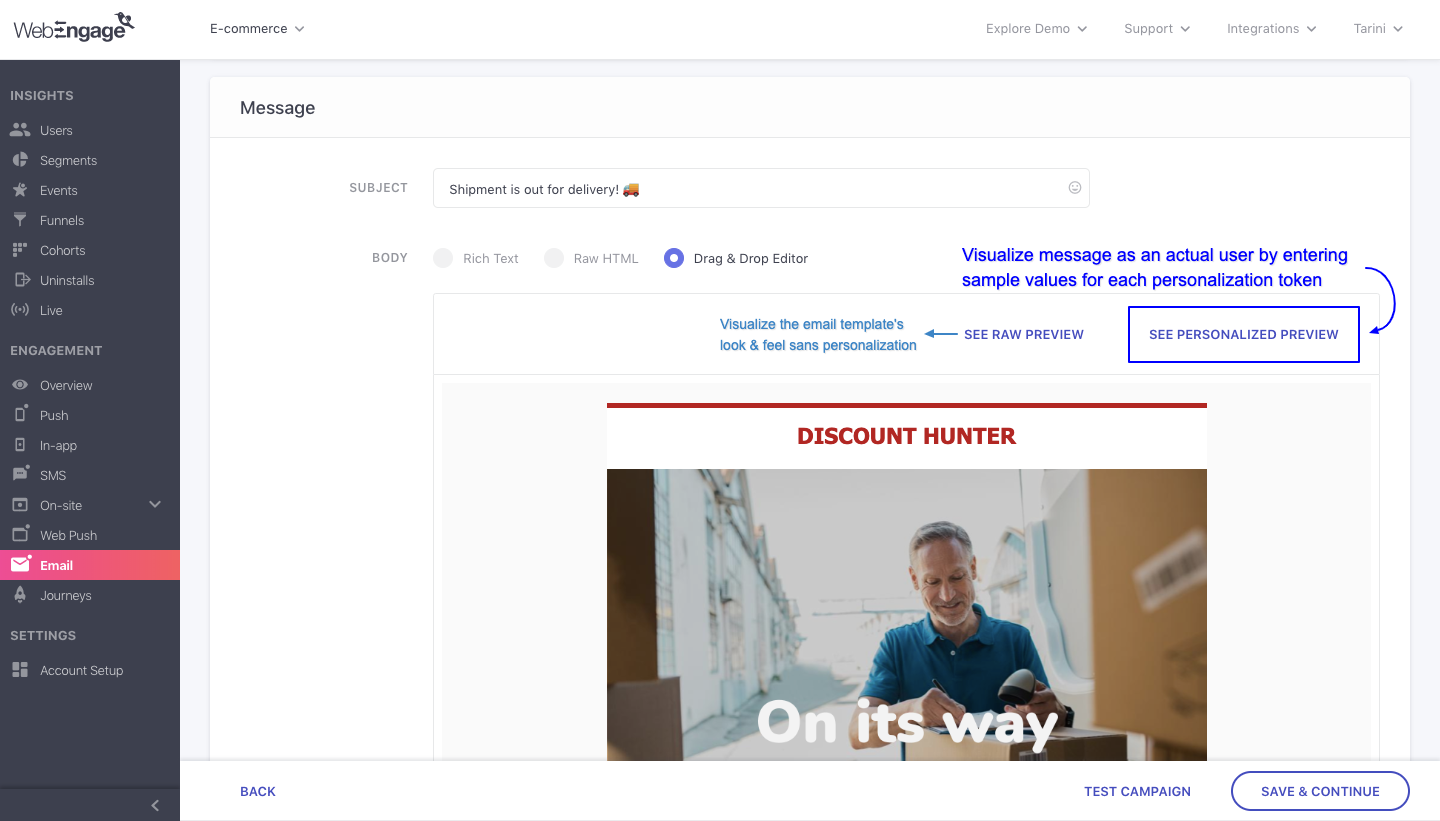

As highlighted above, the top panel of the message creation interface allows you to toggle between a Raw Preview and User Preview to gauge the email's appearance. Here's how it works:

Raw Preview

As shown below, it renders the Email with the raw personalization tokens added to the Message.

Personalized Preview

As shown below, it allows you to visualize the entire email template for an ideal user by replacing the personalization tokens with placeholder values. This is a great way to gauge the message's actual appearance and optimize it.

Here's how you can go about it:

Step 1: Select Personalized Preview from the dropdown placed on the top left.

  • In doing so, you will be prompted to add values against all the personalization tokens added to the Message.

Step 2: Add a sample of the actual value that may be tracked against each personalization token for an ideal user.

Step 3: Click See Preview to visualize!

Step 3: Set up Conversion Tracking & Variation Testing

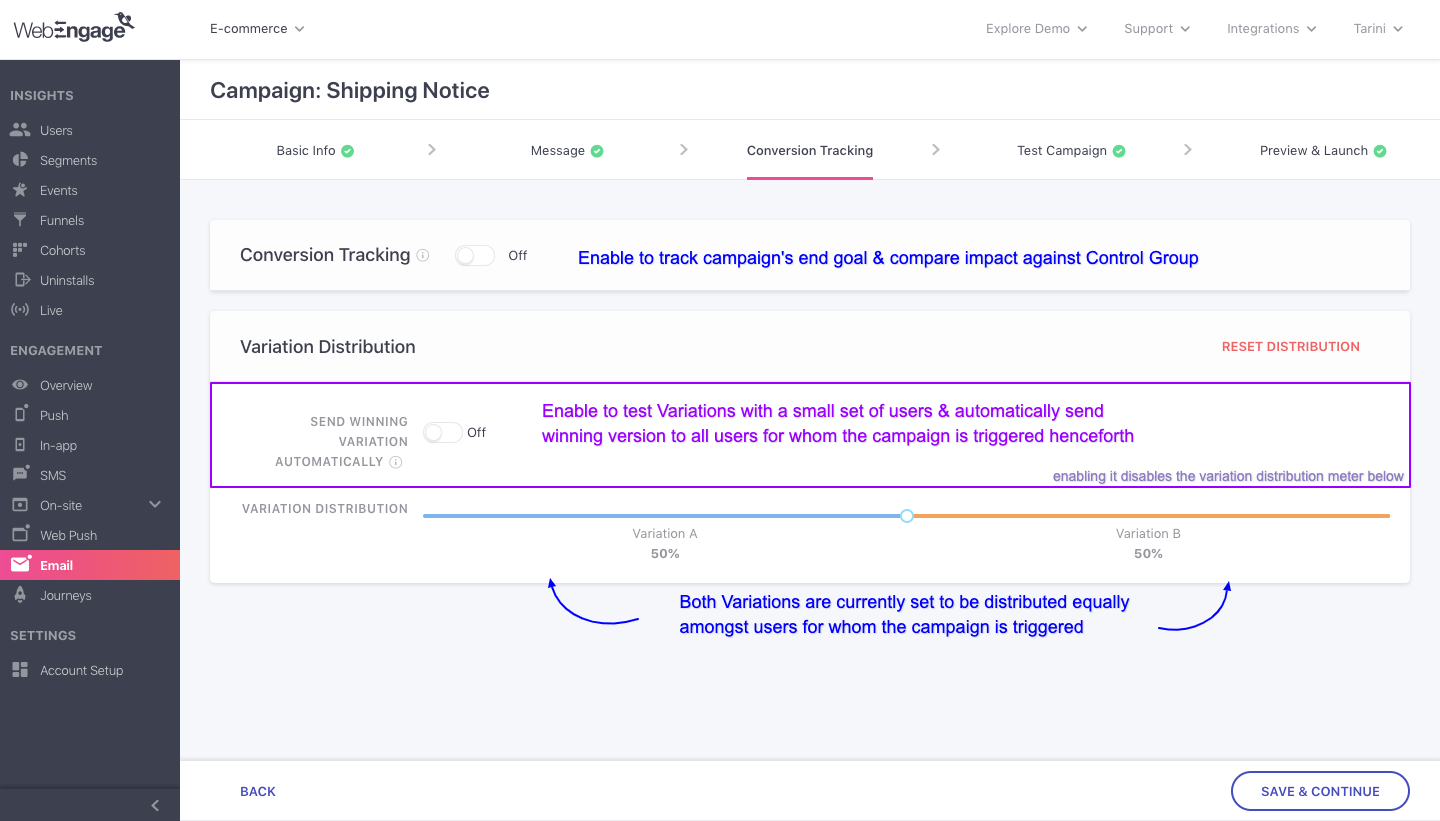

The third step of campaign creation allows you to measure the effectiveness of your transactional campaign in various ways like:

  • Tracking conversions for a specific goal
  • Comparing performance against a control group
  • Testing multiple variations of the message to identify the most effective copy/layout

Hence, it has been divided into two sections: Conversion Tracking and Variation Distribution.


Click to enlarge

Conversion Tracking


How to Set Up Conversion Tracking & Control Group

Hey there,

Please refer to this Step-by-step guide on setting up Conversion Tracking for your campaign. Since the setting works in the same manner for Transactional Campaigns, as it does for One-time, Triggered, Recurring campaigns, the guide will get you going in no time at all!

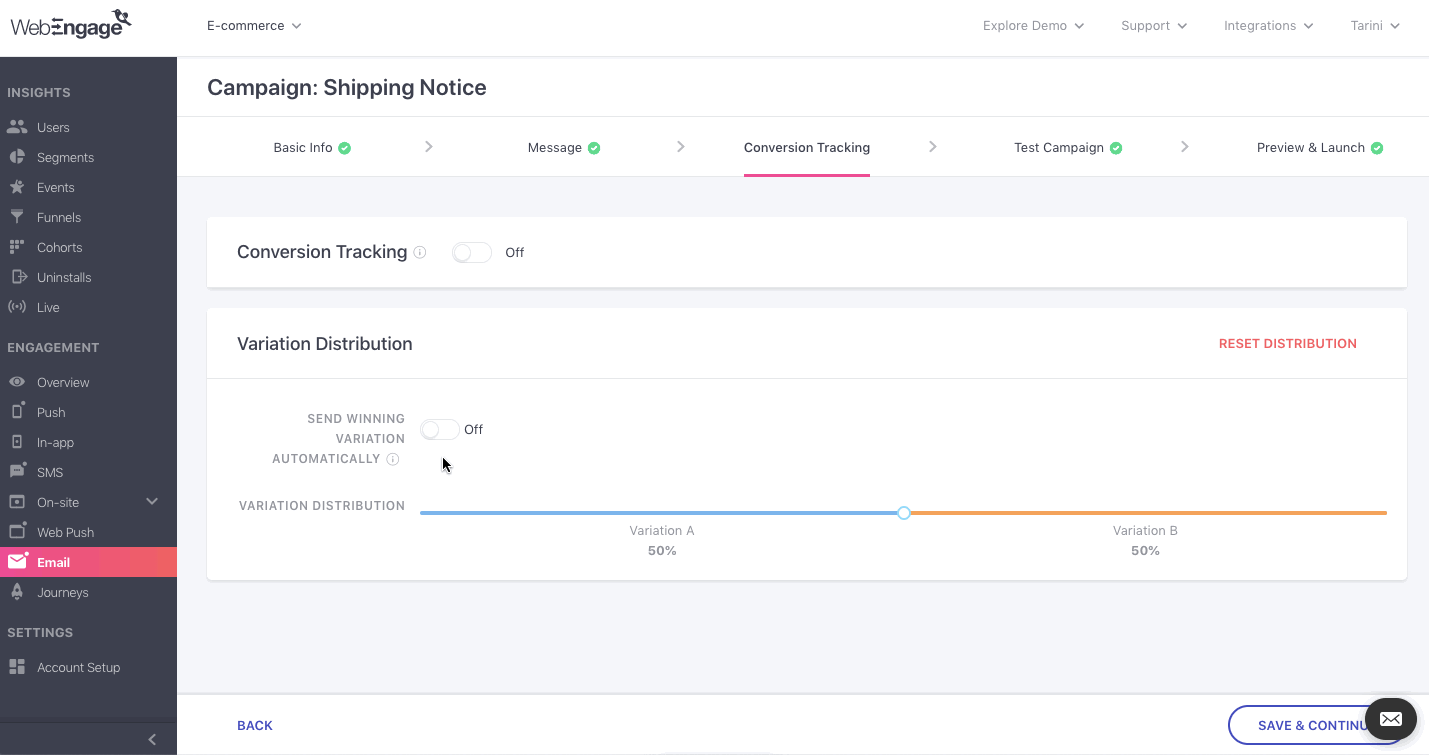

Variation Testing

If you have created multiple Variations at Step 2: Message, then you can easily automate testing by configuring Send Winning Variation Automatically.

Doing so will allow you to test all the Variations (and Control Group if enabled) with a small test audience. We'll automatically identify a winner and send it to all the subsequent users for whom the Transactional Campaign is triggered.

Here's how you can set it up:

Step 1: Specify Size of the Test Audience

All Transactional Campaigns are triggered for a user on the occurrence of a specific scenario in their lifecycle. Thus, the most scientific method to test its Variations is by ensuring that a significant number of messages are delivered before we draw a comparison.

This is why, the test audience can be defined in terms of the number of messages that must be delivered to your users.


Click to enlarge

For example, in the above visual, we have specified a test audience of 500 messages. This means that all the Variations will be equally divided amongst the specified number and testing will continue until a total of 600 messages have been successfully delivered.

Step 2: Select Win Criteria

The Win Criteria is a performance indicator (Opens, Clicks or Conversions) that helps us determine a winning Variation.

For example, in the above visual we have selected Clicks as the Win Criteria.

  • This means that once 500 messages have been successfully delivered to the users, we will determine a winner based on the number of clicks tracked for each Variation.


Prefer Manual Variation Testing?

Follow this guide to test the Variations and Control Group (if enabled) manually.

Step 4: Test Your Campaign (Recommended)

Iron out all the creases in your Email by testing it with internal team members for maximum impact! While this is an optional step, we recommend that you test your Transactional Campaign to ensure that everything's in order. Here's how you can go about it:

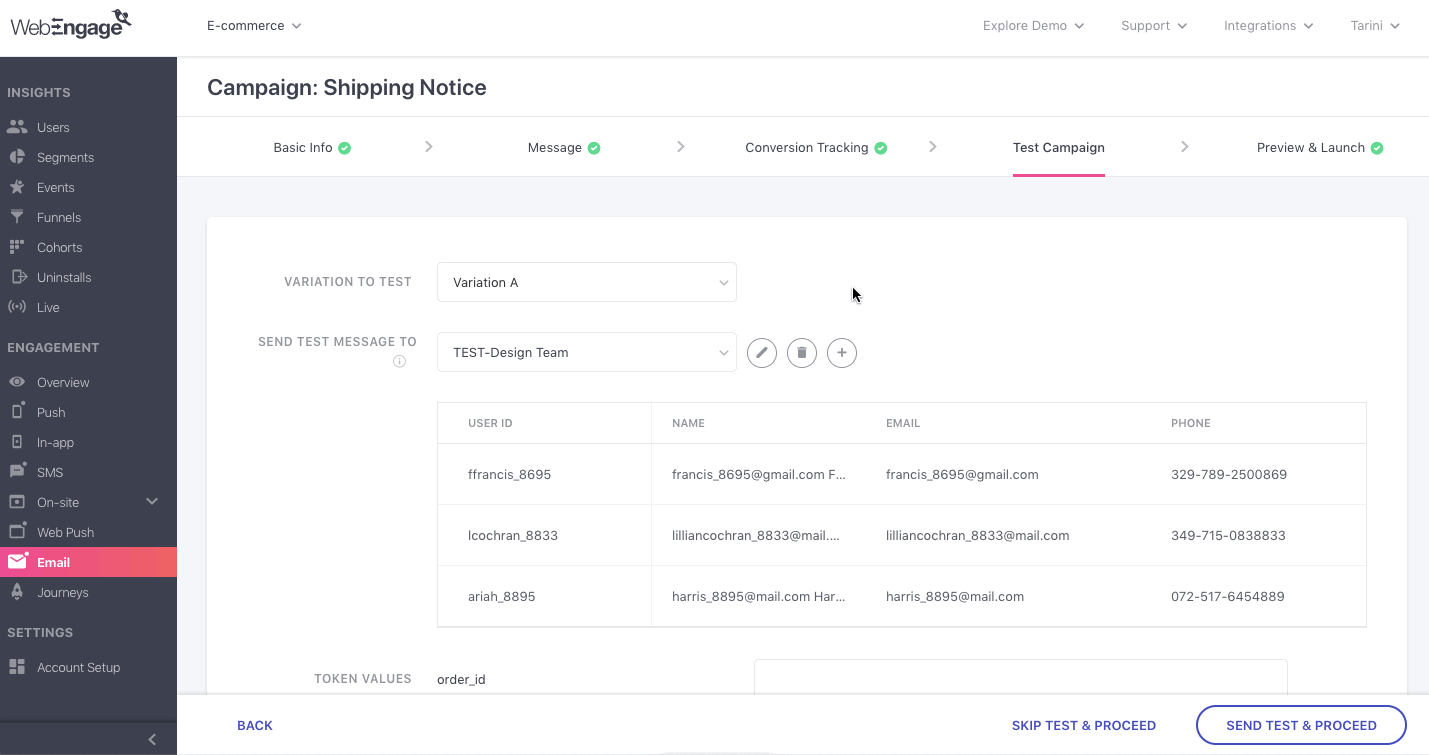

Step 4.1: Select Variation

As shown below, by default, Variation A is selected against the field - Variation To Test. However, if you have created multiple Variations then you can test each one by sending them consecutively to a Test Segment. For example, we have chosen to test Variation B.


Click to enlarge

Step 4.2: Select Test Segment

All the test segments created while testing a campaign for any channel (Push, SMS, Web Push, Email), can be found under the dropdown, Send Test Message To.


Click to enlarge

  • As shown above, click the dropdown to select a relevant test segment and preview user details before proceeding.


Haven't created a test segment yet?

Step-by-step guide on creating a test segment.

Related Guides: Edit / Delete test segment

Step 4.3: Enter Token Values


Click to enlarge

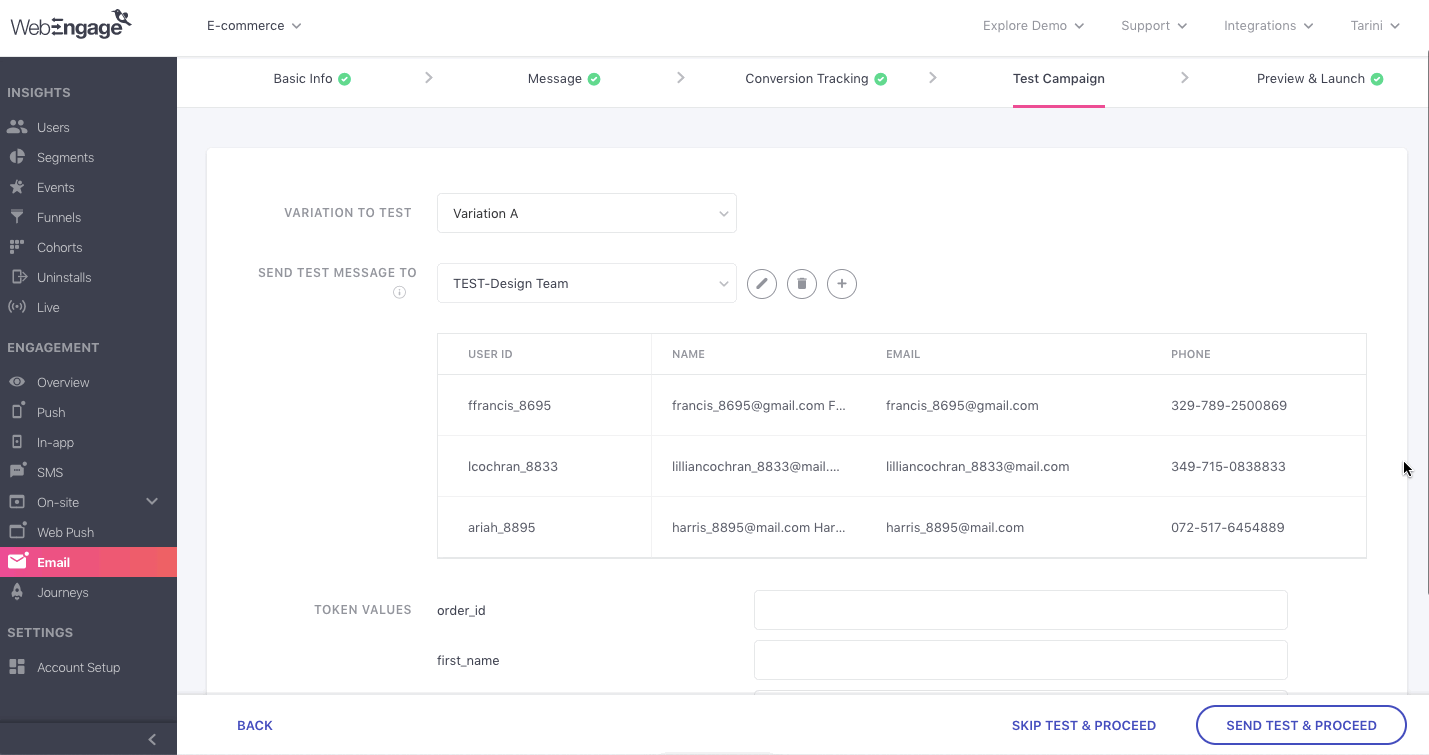

As shown above, you will find a list of all the personalization tokens added at Step 2: Message against the field, Token Values.

  • Add a sample of the actual value that may be tracked against each personalization token for an ideal user.
  • Next, launch the test campaign by clicking the Send Test & Proceed button.

Click to enlarge


Please Note

After the Test Message has been sent, you will see that it is in Queue. After some time you will be able to see the delivery status of the test message as Delivered or Failed.

The Delivery details include Device details, Browser Name, and so on.

If the Test Message has Failed to deliver, then you will be able to see the reason for failure.


Pro Tip

If users included within the test segment don't receive the test campaign within a maximum duration of 10 minutes, then we suggest that you look into the following aspects to debug:

  • Did you use the correct personalization tokens (as created by your tech team)?

  • Has the ESP been integrated correctly with your WebEngage account?

Please feel free to drop in a few lines at [email protected] in case you need assistance. We're just an email away!

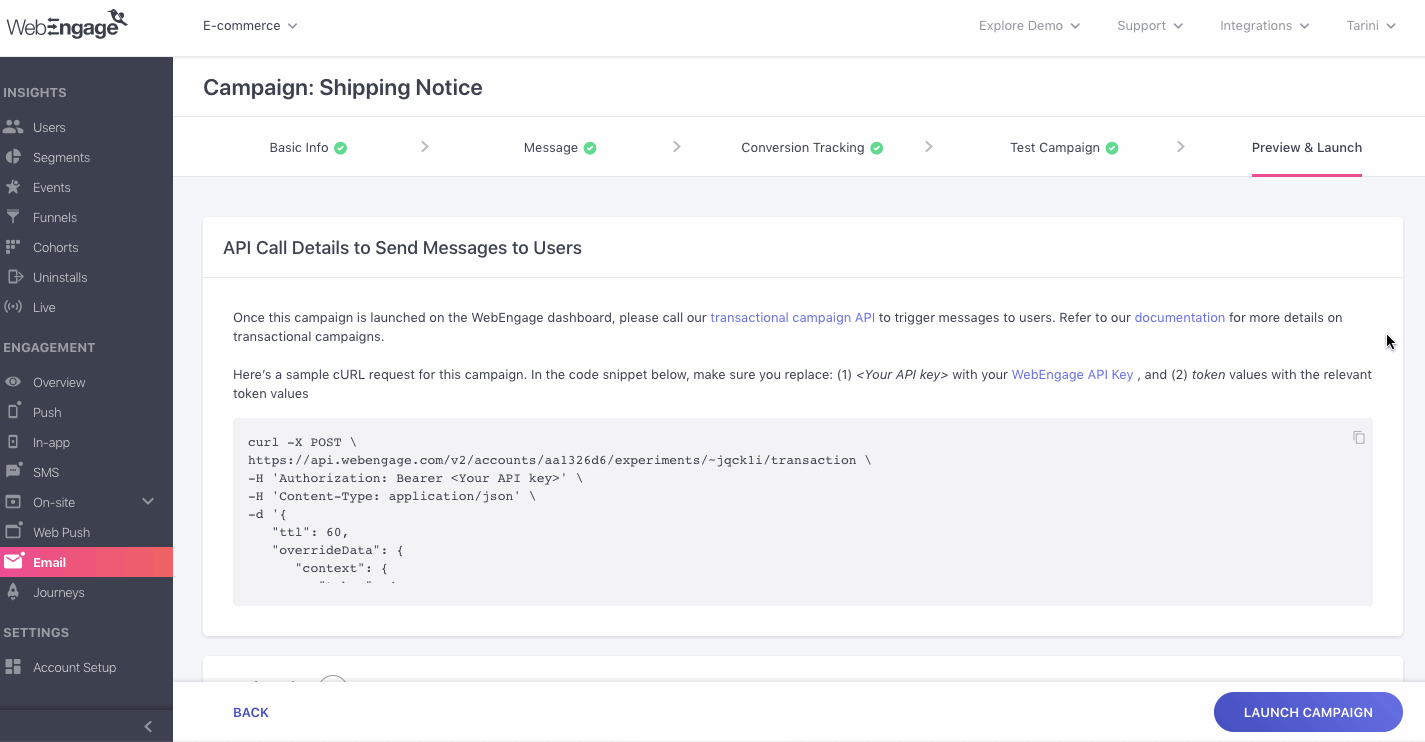

Step 5: Preview & Launch

Once you are satisfied with the test results, it's time to launch the Transactional Email Campaign! But before that, we recommend that you conduct a quick preview of its settings.


Click to enlarge

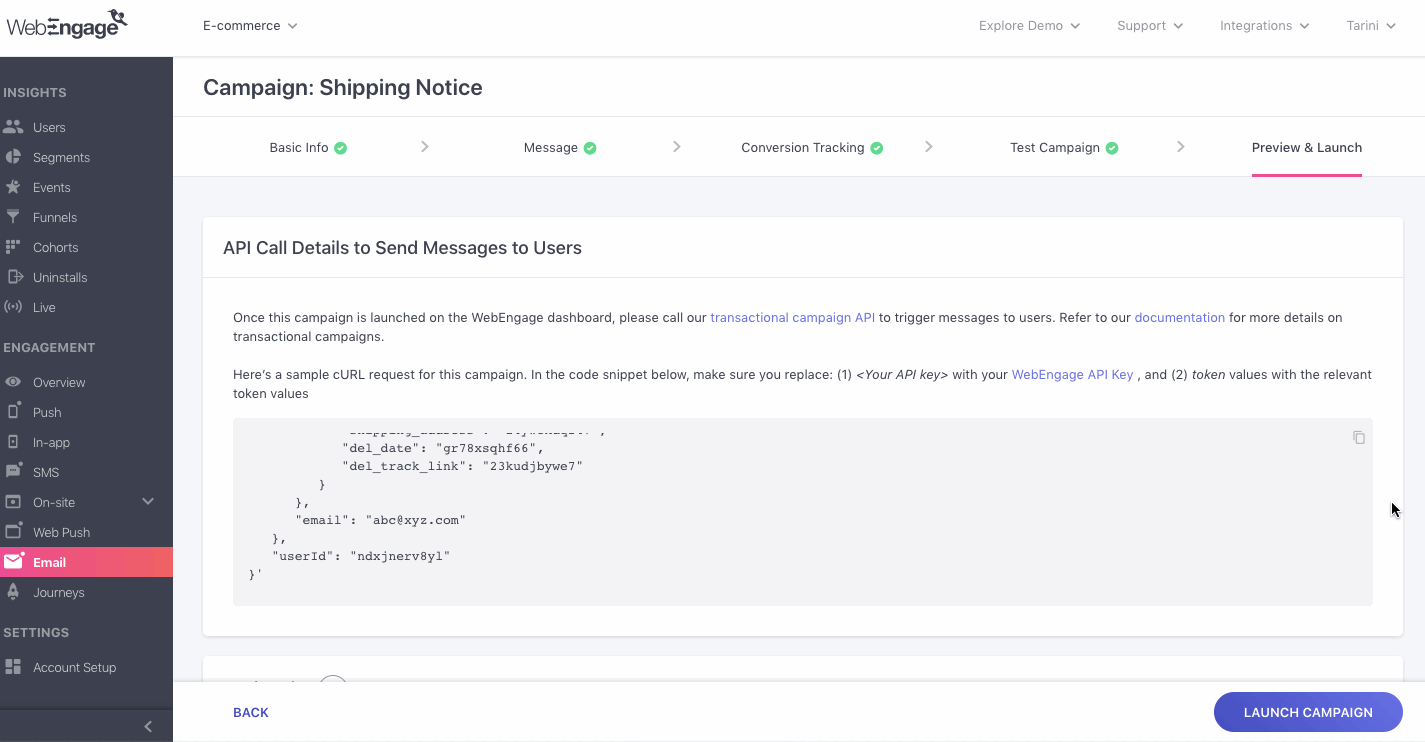

As shown above, the last step of the campaign creation interface presents a snapshot of its:

Edit Before Campaign Launch

You can always choose to edit a step by clicking the Pencil icon, placed next to each header. In doing so, you will be directed back to the step, as shown below.

As shown above, simply make your edits, save them and toggle back to Step 5: Preview & Launch to continue.

What Happens After the Campaign is Launched?

  • Once the transactional campaign is launched, no messages will be sent to your users until the Transactional Messaging API is called through your backend.
  • Each time the trigger event occurs in your backend, a POST call must be made through the API, sending details of the user for whom the event has occurred (User ID & Email Address), along with the values gleaned for the personalization tokens added to the message.
  • The campaign's message will be personalized with the exact values gleaned for each user through the Transactional Messaging API
  • WebEngage will then send the Email to the ESP integrated with your account for delivering it to the user.


Detailed Read

How Transactional Campaigns work in your dashboard

We hope this has equipped you with a robust understanding of how you can automate Transactional Email Campaigns for all your users. Please feel free to drop in a few lines at [email protected] in case you have any queries or feedback. We're always just an email away!

So, what's next?

Now let's show you how you can analyze the impact of your Email campaign!
